Material ID: 3RK1301-0CB20-0AB4

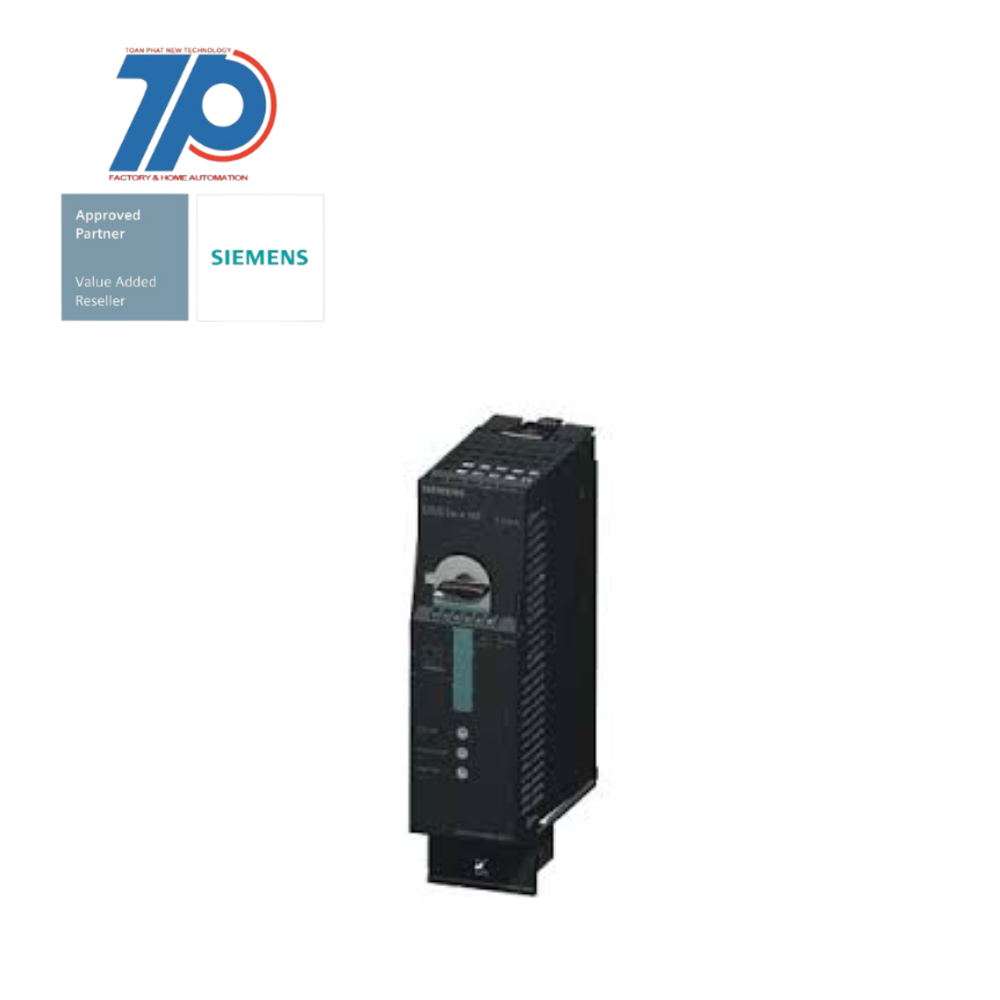

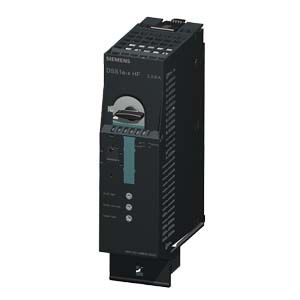

DSS1E-X for ET200S High Feature direct soft starter

The DSS1E-X is a high feature direct soft starter designed for the ET200S system. It offers a setting range of 2.4...16 A and features electronic switching and electronic protection. With AC-3 capability, it can handle loads up to 7.5 kW / 400 V.

Key Features:

Commercial Benefits:

Note: The ET 200S distributed I/O system has been superseded by the new ET 200SP system.

    • Electronic switching: Provides efficient and reliable switching for motor control.
    • Electronic protection: Ensures the safety and longevity of the connected equipment.
    • Expandable for Brake control module: Allows for easy integration with a brake control module.
    • 2DI module: Provides additional digital inputs for enhanced functionality.
    • Motor starter ES: Enables smooth and controlled motor starting.
    • Circuit breaker signaling parameterizable: Offers customizable circuit breaker signaling.
    • DPV 1-capable: Supports DPV 1 communication protocol for seamless integration.
    • PROFIENERGY-capable: Compatible with PROFIENERGY technology for energy-efficient operation.
    • Improved motor control: The DSS1E-X ensures precise and efficient motor control, resulting in optimized performance.
    • Enhanced equipment protection: With electronic protection, the soft starter safeguards the connected equipment from damage.
    • Easy integration: The DSS1E-X can be expanded to include a brake control module, providing flexibility and convenience.
    • Expanded functionality: The 2DI module offers additional digital inputs, allowing for enhanced system capabilities.
    • Smooth motor starting: The motor starter ES enables smooth and controlled starting of the motor, reducing wear and tear.
    • Customizable circuit breaker signaling: The parameterizable circuit breaker signaling allows for tailored notifications and alerts.
    • Seamless integration: With DPV 1 capability, the soft starter can easily integrate into existing systems using the DPV 1 communication protocol.
    • Energy-efficient operation: The PROFIENERGY compatibility enables energy-efficient operation, reducing energy consumption and costs.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Voltage type for actuatingDC
Degree of protection (IP)IP20
Overload release current setting2.4 A
Height290 mm
Rated operation power at AC-3, 400 V7.5 kW
Rated operation current at AC-3, 400 V16 A
Overload release current setting16 A
With short-circuit releasetrue
Type of electrical connection of main circuitScrew connection
Depth150 mm
Release classOther
Supporting protocol for ASIfalse
Rated control supply voltage DC20.4 V
With transformerfalse
Width65 mm
Type of motor starterDirect online starter (DOL)
Rated control supply voltage DC28.8 V
