Material ID: 3RK1301-0HB00-0AA2

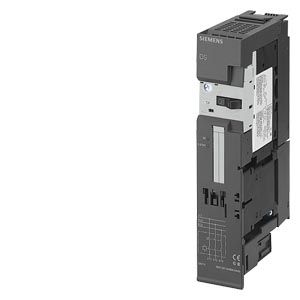

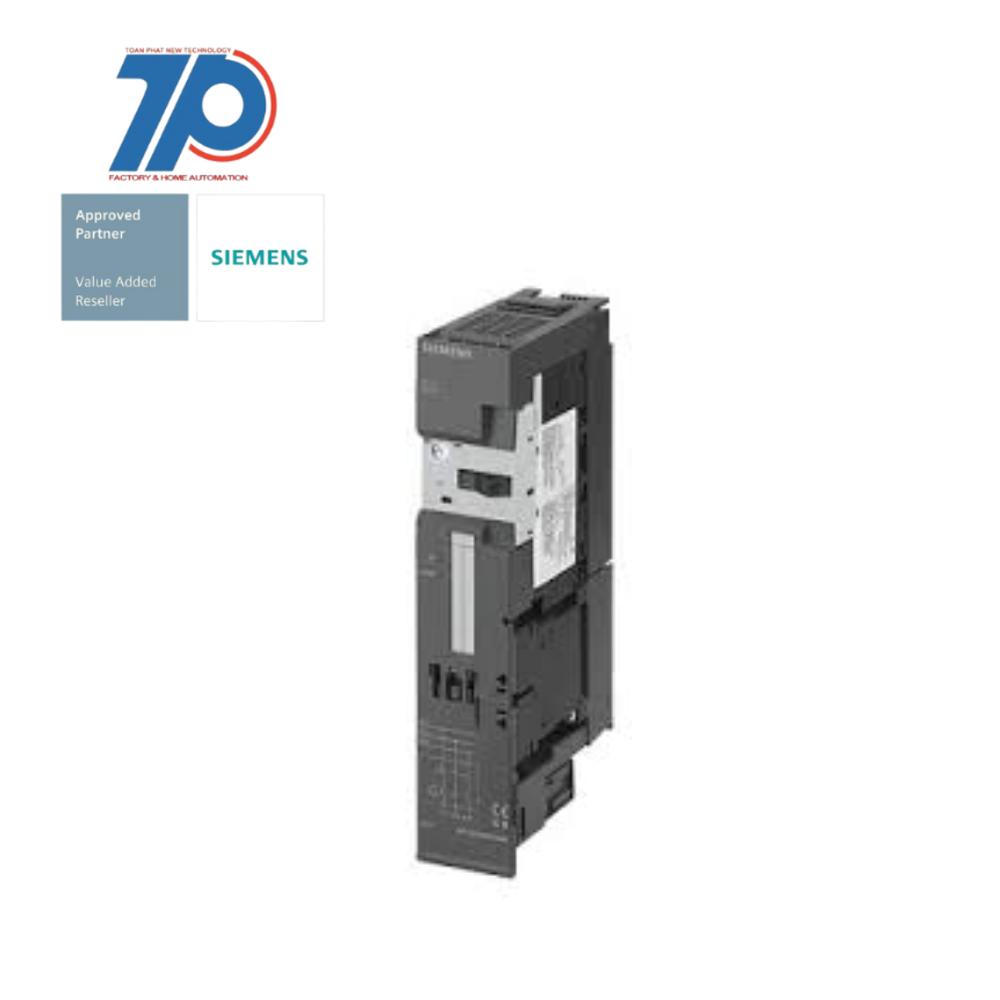

DS1-X for ET 200S Standard DOL starter expandable
Setting range: 0.55...0.8 A, AC-3, 0.21 kW / 400 V
The DS1-X is an electromechanical starter designed for brake control module in the ET 200S system. It offers expandable capabilities and is suitable for a wide range of applications.
The ET 200S distributed I/O system has been replaced by the new ET 200SP system, providing enhanced functionality and performance.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Release class | CLASS 10 |
| Width | 45 mm |
| Type of motor starter | Direct online starter (DOL) |
| Supporting protocol for ASI | false |
| Rated control supply voltage DC | 20.4 V |
| With transformer | false |
| Overload release current setting | 0.8 A |
| Rated operation current at AC-3, 400 V | 0.8 A |
| Rated control supply voltage DC | 28.8 V |
| Height | 265 mm |
| Depth | 120 mm |
| Rated operation power at AC-3, 400 V | 0.21 kW |
| Voltage type for actuating | DC |
| Degree of protection (IP) | IP20 |
| Overload release current setting | 0.55 A |
| With short-circuit release | true |
| Type of electrical connection of main circuit | Screw connection |
