Material ID: 3RK1301-0HB00-1AA2

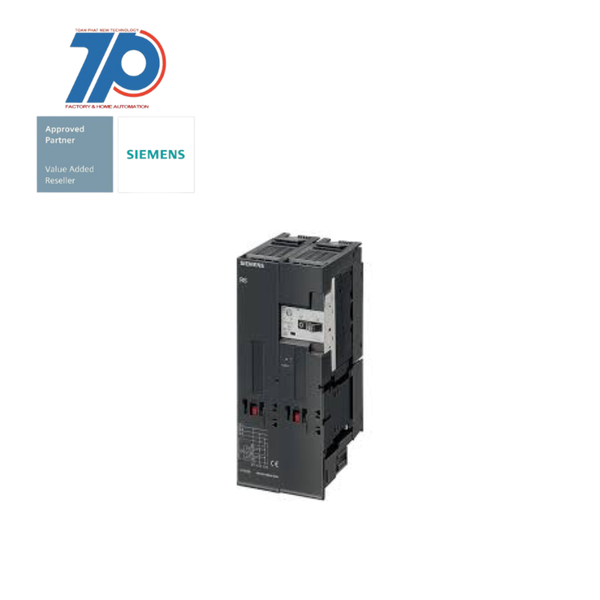

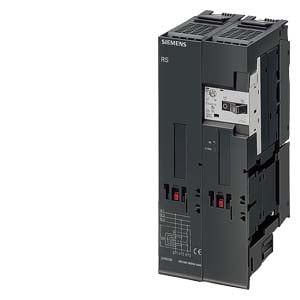

RS1-X for ET 200S

The RS1-X is a standard reversing starter that is expandable and designed for the ET 200S system. It has a setting range of 0.55 to 0.8 A and is suitable for AC-3 applications with a power rating of 0.21 kW at 400 V.

Electromechanical Starter for Brake Control Module

The RS1-X is equipped with an electromechanical starter specifically designed for brake control modules. It provides reliable and efficient control over the braking system.

ET 200S Distributed I/O

The ET 200S distributed I/O system has been superseded by the new ET 200SP system. The ET 200SP offers enhanced functionality and improved performance for distributed input/output applications.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE

    Depth120 mm
    Type of motor starterReversing starter
    Rated operation power at AC-3, 400 V0.21 kW
    Degree of protection (IP)IP20
    Supporting protocol for ASIfalse
    Rated control supply voltage DC28.8 V
    Overload release current setting0.55 A
    Height265 mm
    Release classCLASS 10
    Rated control supply voltage DC20.4 V
    With short-circuit releasetrue
    Type of electrical connection of main circuitScrew connection
    Voltage type for actuatingDC
    Overload release current setting0.8 A
    Rated operation current at AC-3, 400 V0.8 A
    With transformerfalse
    Width90 mm
