Material ID: 3RK1301-1AB00-0AA2

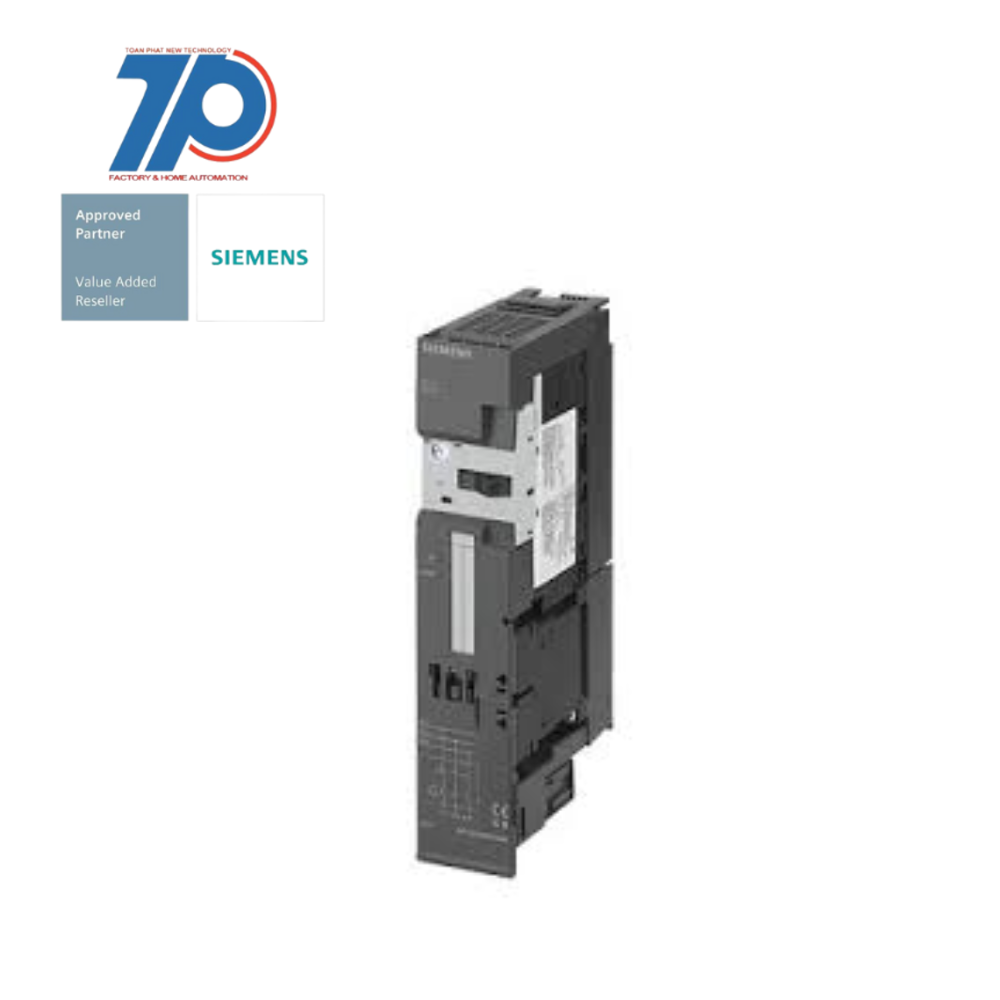

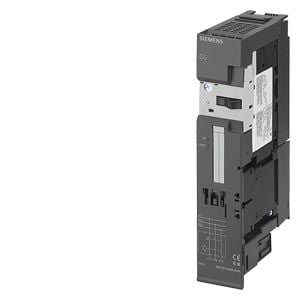

DS1-X for ET 200S Standard DOL starter expandable

The DS1-X is a standard DOL starter expandable module designed for the ET 200S system. It has a setting range of 1.1...1.6 A AC-3 and is capable of handling 0.55 kW / 400 V power.

Technical Features:

Commercial Benefits:

The DS1-X starter module offers the following commercial benefits:

    • Setting range: 1.1...1.6 A AC-3
    • Power: 0.55 kW / 400 V
    • Starter type: Electromechanical
    • Module compatibility: ET 200S
    • Expandable design for easy integration into the ET 200S system
    • Efficient brake control module
    • Supersedes the ET 200S distributed I/O system
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Type of electrical connection of main circuitScrew connection
Rated operation current at AC-3, 400 V1.6 A
Depth120 mm
Width45 mm
Height265 mm
Supporting protocol for ASIfalse
Type of motor starterDirect online starter (DOL)
Rated operation power at AC-3, 400 V0.55 kW
Voltage type for actuatingDC
Rated control supply voltage DC28.8 V
With transformerfalse
Overload release current setting1.6 A
Rated control supply voltage DC20.4 V
Release classCLASS 10
With short-circuit releasetrue
Overload release current setting1.1 A
Degree of protection (IP)IP20
