Material ID: 3RK1301-1AB00-1AA2

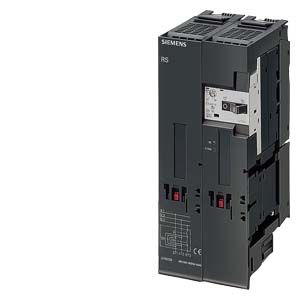

RS1-X for ET 200S

The RS1-X is a standard reversing starter that is expandable and designed for the ET 200S system. It has a setting range of 1.1...1.6 A AC-3 and is capable of handling 0.55 kW at 400 V. This electromechanical starter is specifically designed for brake control module applications.

ET 200S Distributed I/O

The ET 200S distributed I/O system has been superseded by the new ET 200SP system. It provides a reliable and efficient solution for distributed input/output applications.

Technical Features:

Commercial Benefits:

    • Setting range: 1.1...1.6 A AC-3
    • Power capacity: 0.55 kW at 400 V
    • Expandable design
    • Electromechanical starter
    • Efficient brake control module operation
    • Reliable and durable
    • Superseded by the new ET 200SP system
    • Provides a reliable and efficient solution for distributed input/output applications
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Width90 mm
Type of motor starterReversing starter
Rated operation power at AC-3, 400 V0.55 kW
Overload release current setting1.1 A
Rated control supply voltage DC28.8 V
Supporting protocol for ASIfalse
Height265 mm
With transformerfalse
Overload release current setting1.6 A
Release classCLASS 10
Rated control supply voltage DC20.4 V
Type of electrical connection of main circuitScrew connection
With short-circuit releasetrue
Depth120 mm
Rated operation current at AC-3, 400 V1.6 A
Degree of protection (IP)IP20
Voltage type for actuatingDC
