Material ID: 3RK1301-1BB00-0AA2

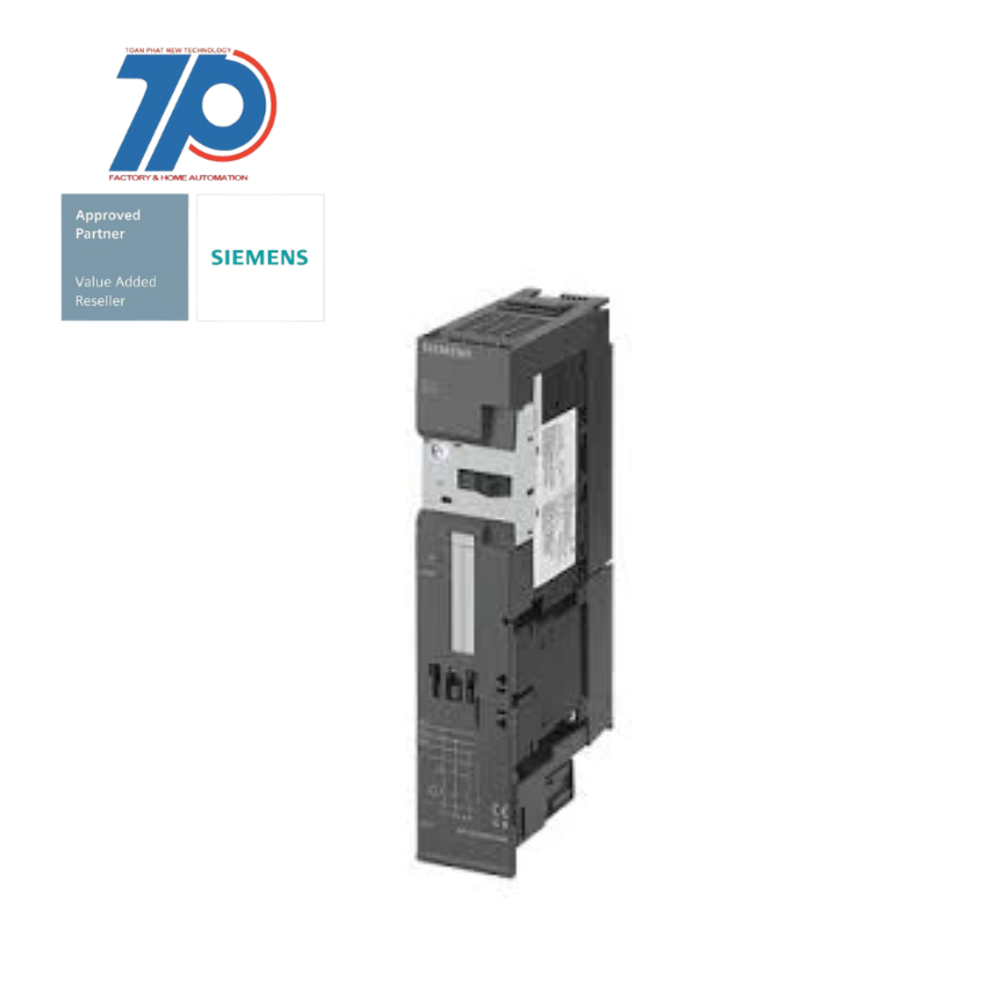

DS1-X for ET 200S Standard DOL Starter

The DS1-X is an expandable DOL starter designed for the ET 200S system. It has a setting range of 1.4...2 A AC-3 and is capable of handling 0.75 kW at 400 V. This electromechanical starter is specifically designed for brake control module applications.

Key Features:

Commercial Benefits:

Please note that the ET 200S distributed I/O system has been superseded by the new ET 200SP system.

    • Expandable: The DS1-X is expandable, allowing for easy integration into the ET 200S system.
    • Setting Range: With a setting range of 1.4...2 A AC-3, the DS1-X provides precise control over motor operation.
    • Powerful: Capable of handling 0.75 kW at 400 V, the DS1-X is suitable for a wide range of applications.
    • Electromechanical Starter: The DS1-X utilizes electromechanical components for reliable and efficient operation.
    • Brake Control Module: The DS1-X is specifically designed for brake control module applications, ensuring optimal performance and safety.
    • Easy Integration: With its expandable design, the DS1-X can be seamlessly integrated into the ET 200S system, saving time and effort during installation.
    • Precise Control: The setting range of 1.4...2 A AC-3 allows for precise control over motor operation, ensuring efficient and reliable performance.
    • Wide Range of Applications: With its capability to handle 0.75 kW at 400 V, the DS1-X is suitable for a variety of applications, providing versatility and flexibility.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Height265 mm
Degree of protection (IP)IP20
Overload release current setting2 A
Depth120 mm
Type of motor starterDirect online starter (DOL)
With transformerfalse
Rated operation current at AC-3, 400 V2 A
Voltage type for actuatingDC
Release classCLASS 10
Type of electrical connection of main circuitScrew connection
Overload release current setting1.4 A
Width45 mm
With short-circuit releasetrue
Rated control supply voltage DC28.8 V
Supporting protocol for ASIfalse
Rated operation power at AC-3, 400 V0.75 kW
Rated control supply voltage DC20.4 V
