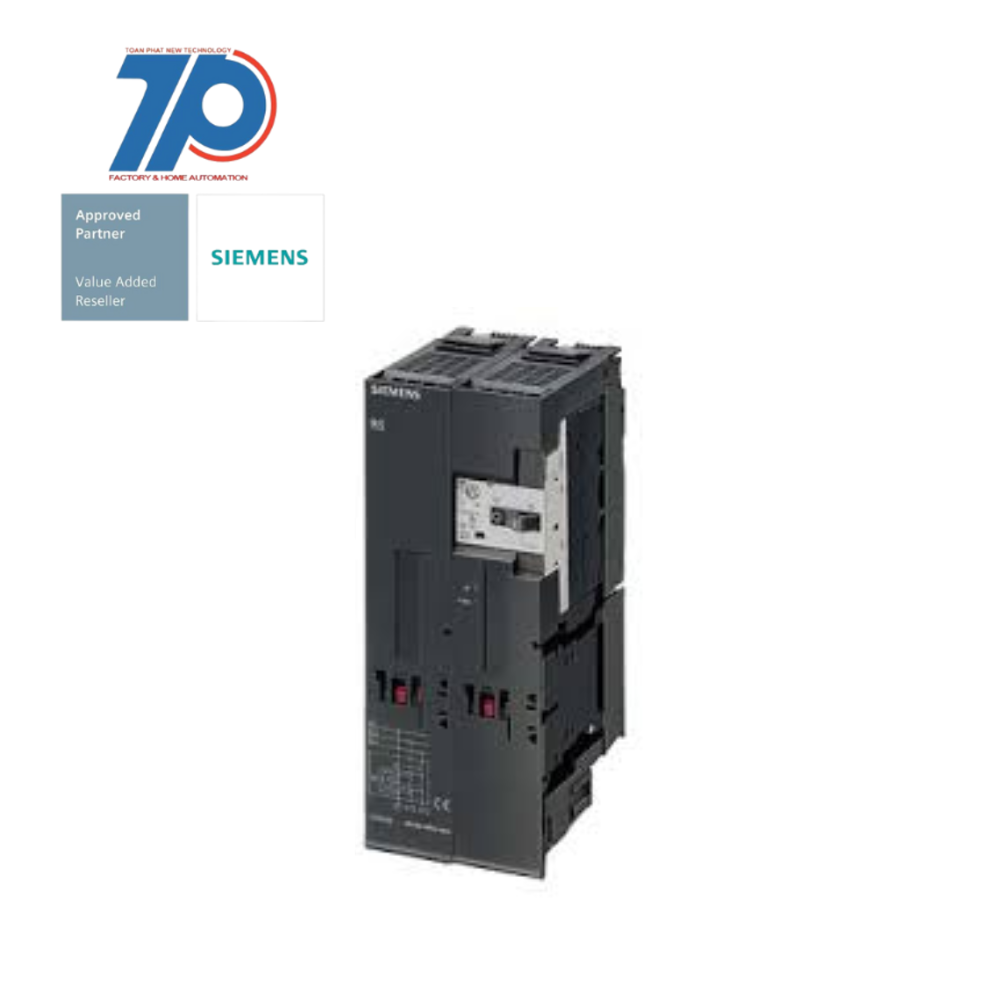

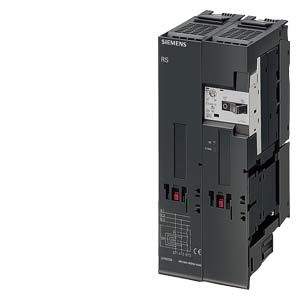

Material ID: 3RK1301-1CB00-1AA2
RS1-X for ET 200S

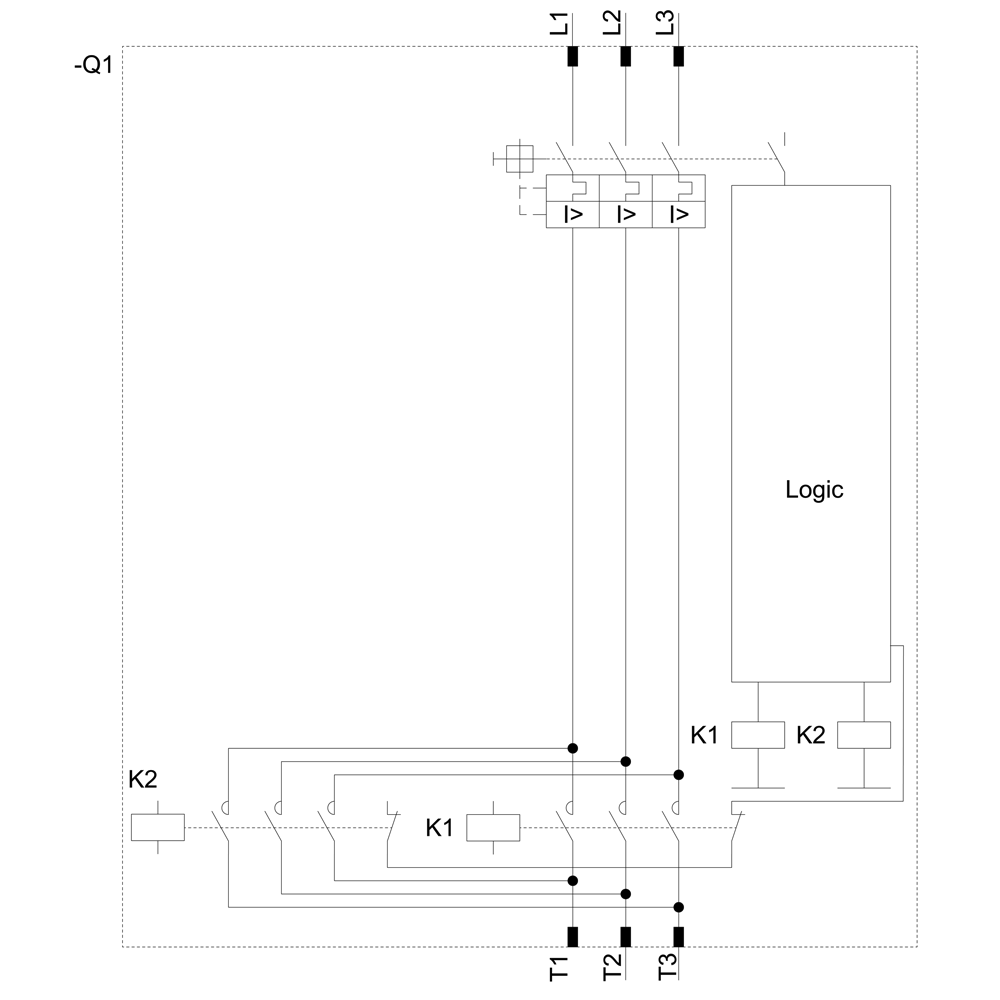

The RS1-X is a standard reversing starter that is expandable and designed for the ET 200S system. It has a setting range of 1.8...2.5 A AC-3 and can handle a power of 0.9 kW at 400 V.
Electromechanical Starter for Brake Control Module
The RS1-X is also equipped with a brake control module, making it suitable for controlling brakes. It provides reliable and efficient brake control for various applications.
ET 200S Distributed I/O
The ET 200S distributed I/O system has been superseded by the new ET 200SP system. The ET 200SP system offers enhanced features and improved performance compared to the ET 200S system.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Rated control supply voltage DC | 28.8 V |
| Type of motor starter | Reversing starter |
| Height | 265 mm |
| Supporting protocol for ASI | false |
| Depth | 120 mm |
| Width | 90 mm |
| Voltage type for actuating | DC |
| Rated operation current at AC-3, 400 V | 2.5 A |
| Overload release current setting | 1.8 A |
| Rated operation power at AC-3, 400 V | 0.9 kW |
| With short-circuit release | true |
| Degree of protection (IP) | IP20 |
| Rated control supply voltage DC | 20.4 V |
| Type of electrical connection of main circuit | Screw connection |
| With transformer | false |
| Release class | CLASS 10 |
| Overload release current setting | 2.5 A |
