Material ID: 3RK1301-1DB00-0AA2

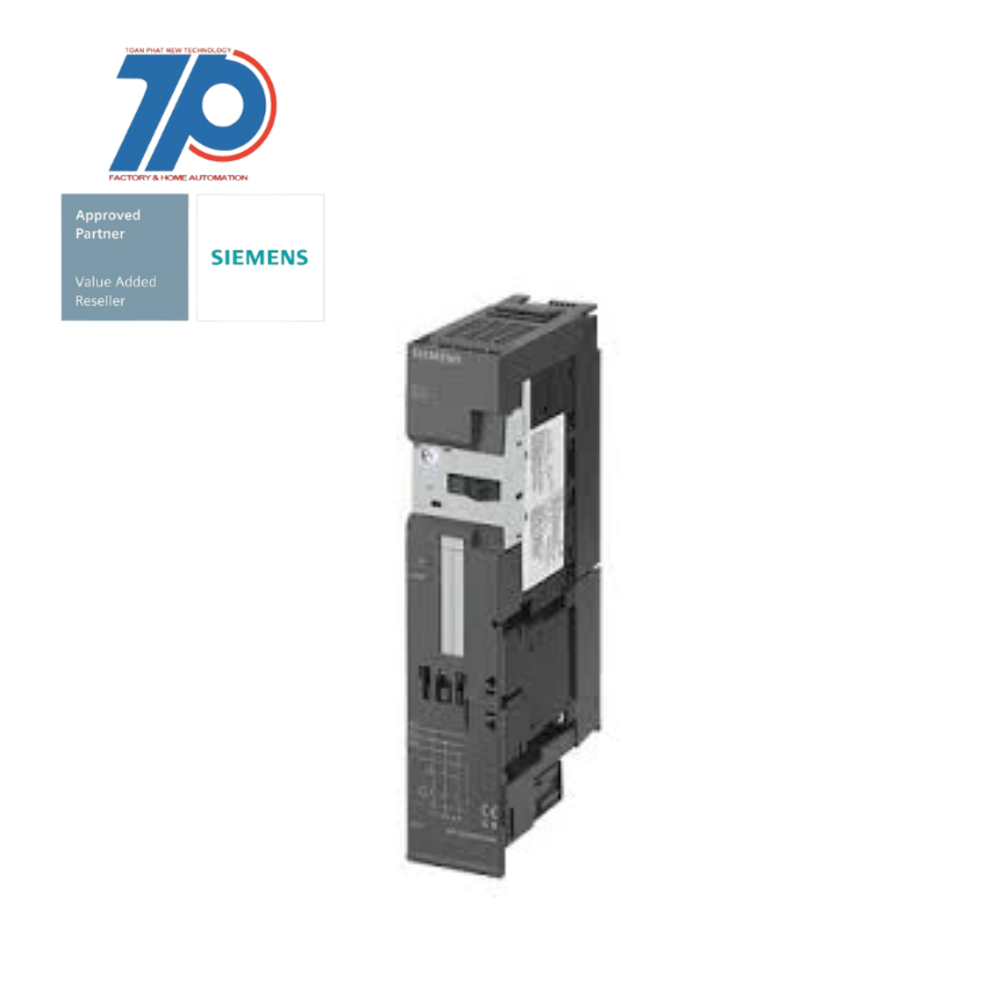

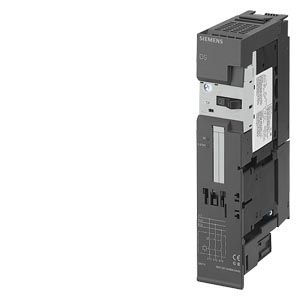

DS1-X for ET 200S Standard DOL starter expandable

The DS1-X is a standard Direct-On-Line (DOL) starter that is expandable and compatible with the ET 200S system.

Technical Features:

Commercial Benefits:

The DS1-X starter provides reliable and efficient control for your brake system. With its expandable design, it offers flexibility for future system expansions. The ET 200S system ensures seamless integration and compatibility with other components.

Note: The ET 200S distributed I/O system has been replaced by the new ET 200SP system.

    • Setting range: 2.2....3.2 A AC-3
    • Power: 1.1 kW / 400 V
    • Control: Electromechanical
    • Module: Brake control
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Width45 mm
Release classCLASS 10
Type of electrical connection of main circuitScrew connection
With short-circuit releasetrue
Degree of protection (IP)IP20
Overload release current setting2.2 A
Depth120 mm
Overload release current setting3.2 A
Rated control supply voltage DC28.8 V
Rated operation current at AC-3, 400 V3.2 A
With transformerfalse
Rated control supply voltage DC20.4 V
Rated operation power at AC-3, 400 V1.1 kW
Voltage type for actuatingDC
Height265 mm
Supporting protocol for ASIfalse
Type of motor starterDirect online starter (DOL)
