Material ID: 3RK1301-1EB00-1AA2

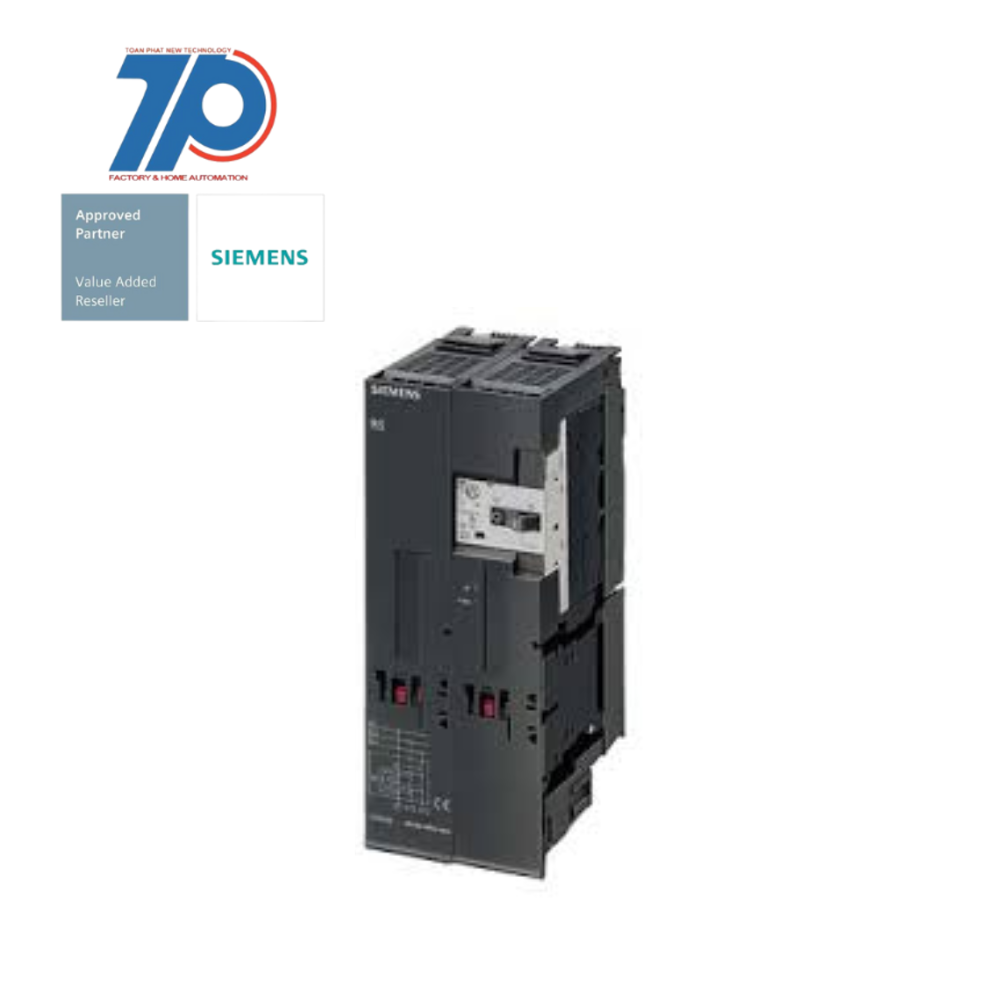

RS1-X for ET 200S
The RS1-X is a standard reversing starter that is expandable and has a setting range of 2.8...4 A AC-3, 1.5 kW / 400 V. It is an electromechanical starter designed for brake control module.
ET 200S Distributed I/O
The ET 200S distributed I/O system has been superseded by the new ET 200SP system.
Key Features:
Commercial Benefits:
- Expandable: The RS1-X is expandable to meet your changing needs.
- Setting Range: The RS1-X has a setting range of 2.8...4 A AC-3, 1.5 kW / 400 V.
- Electromechanical Starter: The RS1-X is an electromechanical starter.
- Brake Control Module: The RS1-X is designed for brake control module.
- Improved Efficiency: The RS1-X ensures efficient brake control.
- Easy to Use: The RS1-X is user-friendly and easy to operate.
- Reliable Performance: The RS1-X delivers reliable performance for your applications.
- Future-Proof: The RS1-X is expandable, allowing you to adapt to future needs.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Release class | CLASS 10 |
| Rated operation current at AC-3, 400 V | 4 A |
| Type of motor starter | Reversing starter |
| Depth | 120 mm |
| Supporting protocol for ASI | false |
| Height | 265 mm |
| Rated control supply voltage DC | 28.8 V |
| Rated operation power at AC-3, 400 V | 1.5 kW |
| Overload release current setting | 2.8 A |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Screw connection |
| Rated control supply voltage DC | 20.4 V |
| Width | 90 mm |
| Voltage type for actuating | DC |
| With transformer | false |
| Overload release current setting | 4 A |
| With short-circuit release | true |
