Material ID: 3RK1301-1FB00-0AA2

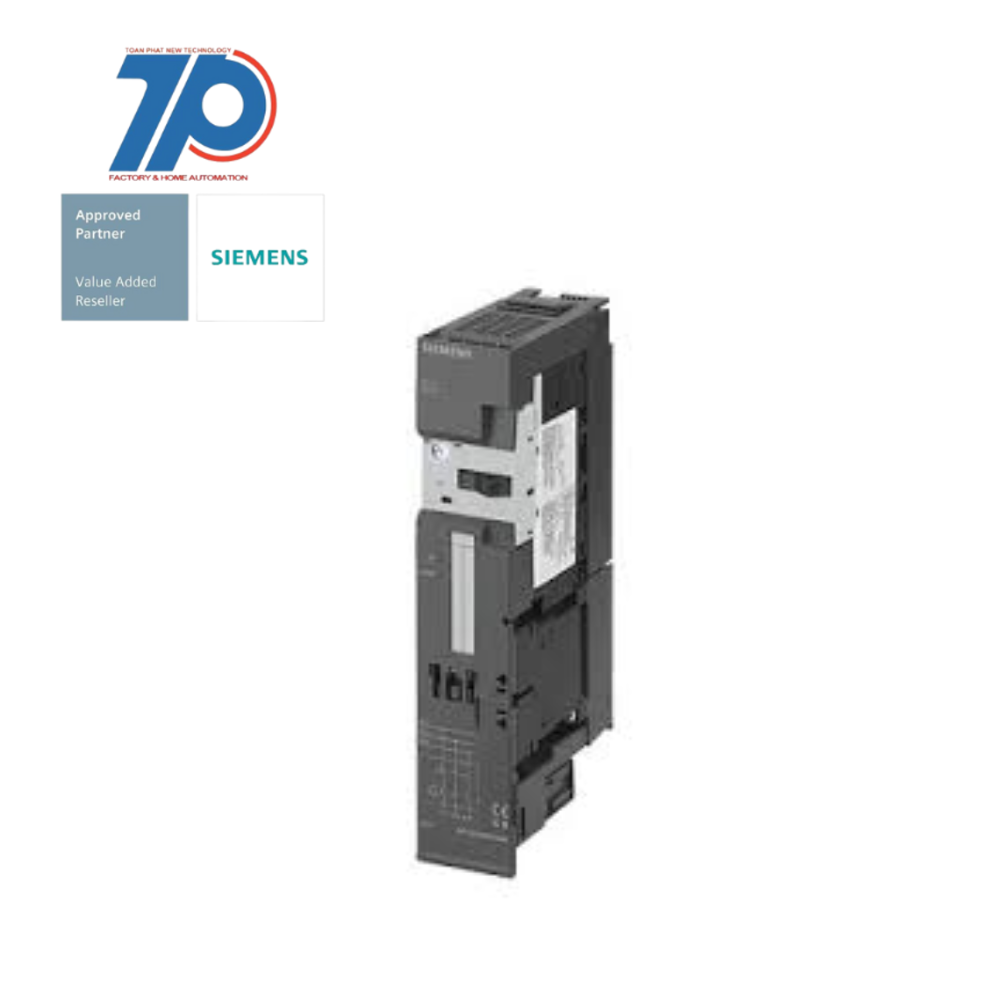

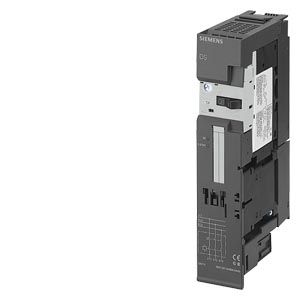

DS1-X for ET 200S Standard DOL starter expandable

The DS1-X for ET 200S is a standard Direct-On-Line (DOL) starter that is expandable. It has a setting range of 3.5...5 A AC-3 and can handle a power of 1.9 kW at 400 V. This electromechanical starter is specifically designed for brake control module.

ET 200S distributed I/O

The ET 200S distributed I/O system has been superseded by the new ET 200SP system.

Technical Features:

Commercial Benefits:

    • Standard DOL starter
    • Expandable
    • Setting range: 3.5...5 A AC-3
    • Power: 1.9 kW at 400 V
    • Electromechanical starter
    • Designed for brake control module
    • Improved control and operation of the brake system
    • Expandable design allows for future scalability
    • Efficient power handling at 400 V
    • Reliable and durable electromechanical starter
    • Superseded by the new ET 200SP system for enhanced performance
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Depth120 mm
Release classCLASS 10
Overload release current setting3.5 A
With transformerfalse
Overload release current setting4 A
Degree of protection (IP)IP20
Rated operation power at AC-3, 400 V1.9 kW
Rated operation current at AC-3, 400 V5 A
With short-circuit releasetrue
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingDC
Height265 mm
Width45 mm
Supporting protocol for ASIfalse
Type of motor starterDirect online starter (DOL)
Rated control supply voltage DC20.4 V
Rated control supply voltage DC28.8 V
