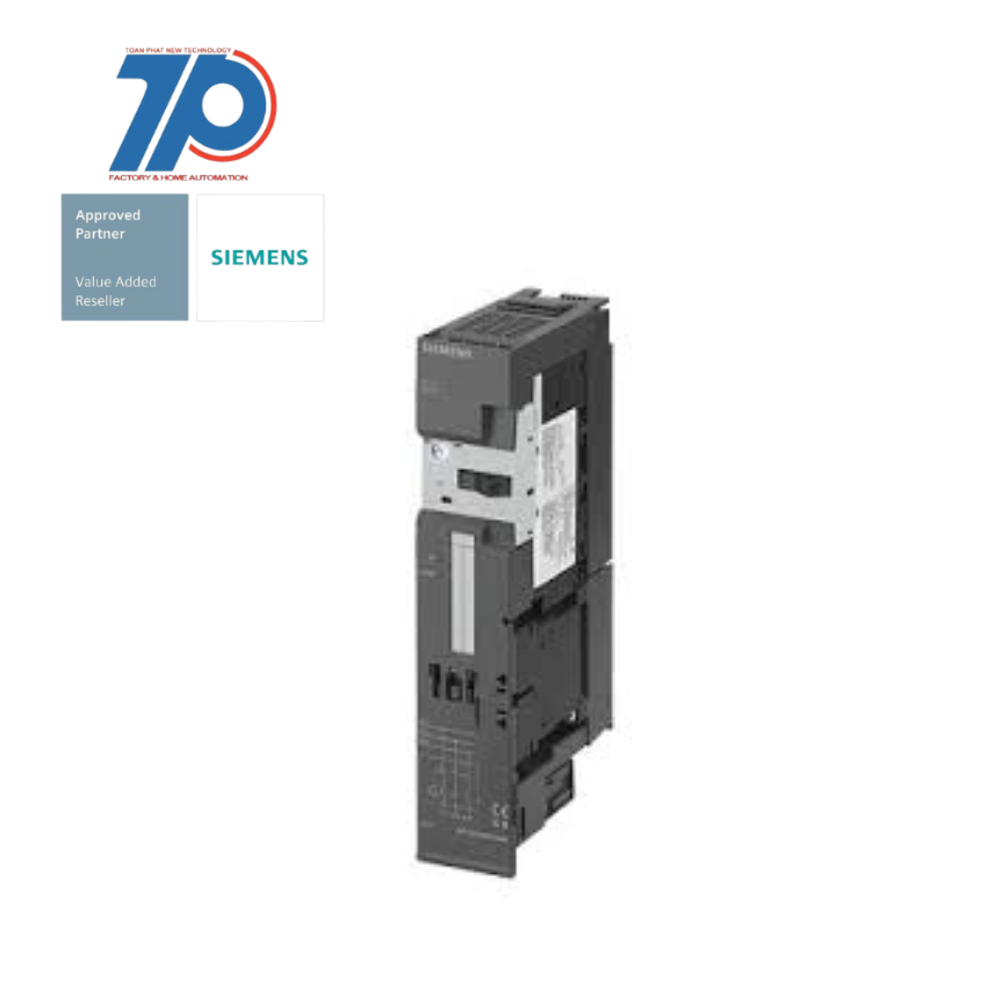

Material ID: 3RK1301-1GB00-0AA2

DS1-X for ET 200S Standard DOL starter expandable

The DS1-X is a standard Direct-On-Line (DOL) starter that is expandable and designed for use with the ET 200S system. It has a setting range of 4.5...6.3 A AC-3 and can handle a power of 2.2 kW at 400 V.

Electromechanical starter for brake control module

The DS1-X is also equipped with an electromechanical starter specifically designed for brake control modules.

ET 200S distributed I/O

The ET 200S distributed I/O system has been superseded by the new ET 200SP system.

Technical Features:

Commercial Benefits:

    • Setting range: 4.5...6.3 A AC-3
    • Power: 2.2 kW / 400 V
    • Expandable
    • Electromechanical starter for brake control module
    • Compatible with the ET 200S system
    • Superseded by the new ET 200SP system
    • Reliable and efficient DOL starter
    • Designed for brake control modules
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

With transformerfalse
Height265 mm
Release classCLASS 10
Type of electrical connection of main circuitScrew connection
Rated control supply voltage DC20.4 V
Rated operation current at AC-3, 400 V6.3 A
Rated operation power at AC-3, 400 V2.2 kW
Width45 mm
Degree of protection (IP)IP20
With short-circuit releasetrue
Type of motor starterDirect online starter (DOL)
Depth120 mm
Overload release current setting4.5 A
Voltage type for actuatingDC
Rated control supply voltage DC28.8 V
Overload release current setting6.3 A
Supporting protocol for ASIfalse
