Material ID: 3RK1301-1HB00-0AA2

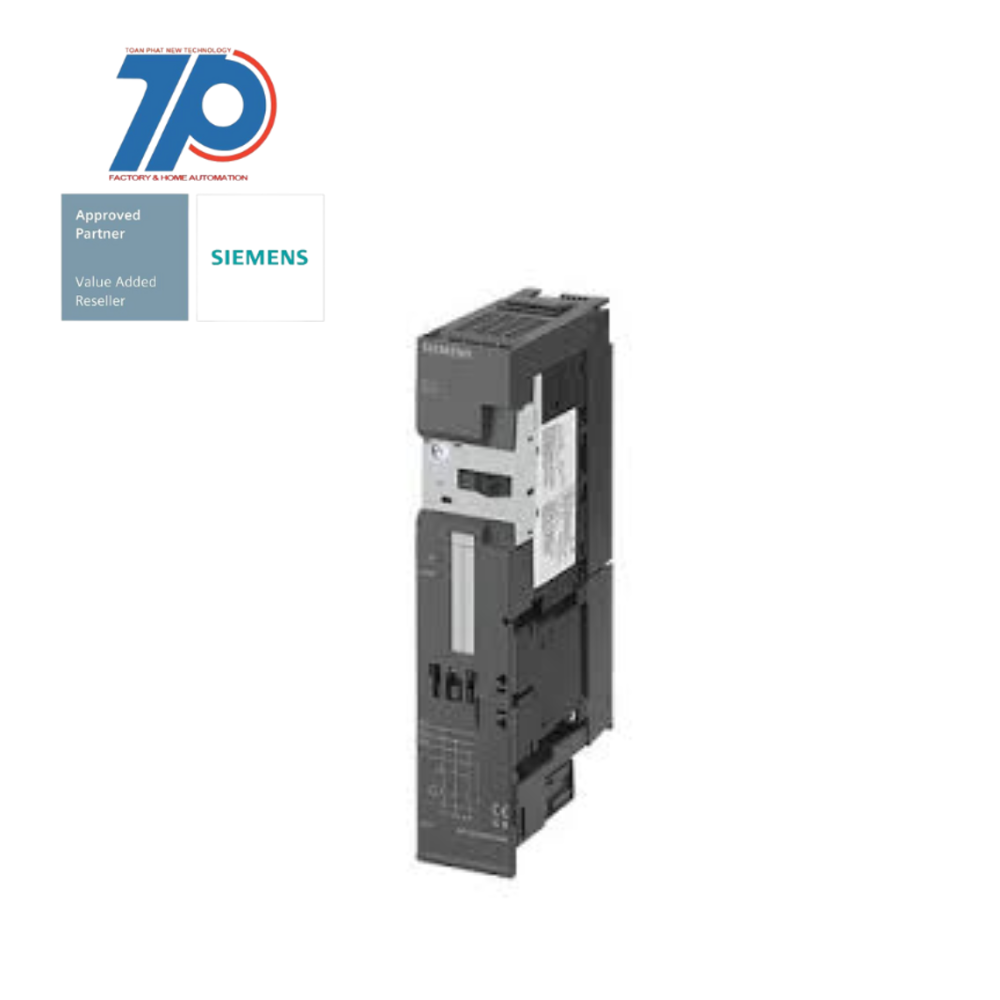

DS1-X for ET 200S Standard DOL Starter

The DS1-X for ET 200S Standard DOL starter is an expandable starter designed for AC-3 applications with a setting range of 5.5...8 A and a power rating of 3 kW at 400 V. It is an electromechanical starter specifically designed for brake control module.

ET 200S Distributed I/O

The ET 200S distributed I/O system has been superseded by the new ET 200SP system.

Technical Features:

Commercial Benefits:

    • Expandable starter
    • Setting range: 5.5...8 A
    • AC-3 applications
    • Power rating: 3 kW at 400 V
    • Electromechanical starter
    • Designed for brake control module
    • Enhanced control and protection for AC-3 applications
    • Optimized performance for brake control module
    • Easy installation and expandability
    • Superseded by the new ET 200SP system for future-proofing
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

With short-circuit releasetrue
Rated operation power at AC-3, 400 V3 kW
Release classCLASS 10
Type of motor starterDirect online starter (DOL)
With transformerfalse
Depth120 mm
Rated control supply voltage DC20.4 V
Rated operation current at AC-3, 400 V8 A
Overload release current setting8 A
Overload release current setting5.5 A
Type of electrical connection of main circuitScrew connection
Supporting protocol for ASIfalse
Height265 mm
Degree of protection (IP)IP20
Rated control supply voltage DC28.8 V
Voltage type for actuatingDC
Width45 mm
