Material ID: 3RK1301-1JB00-0AA2

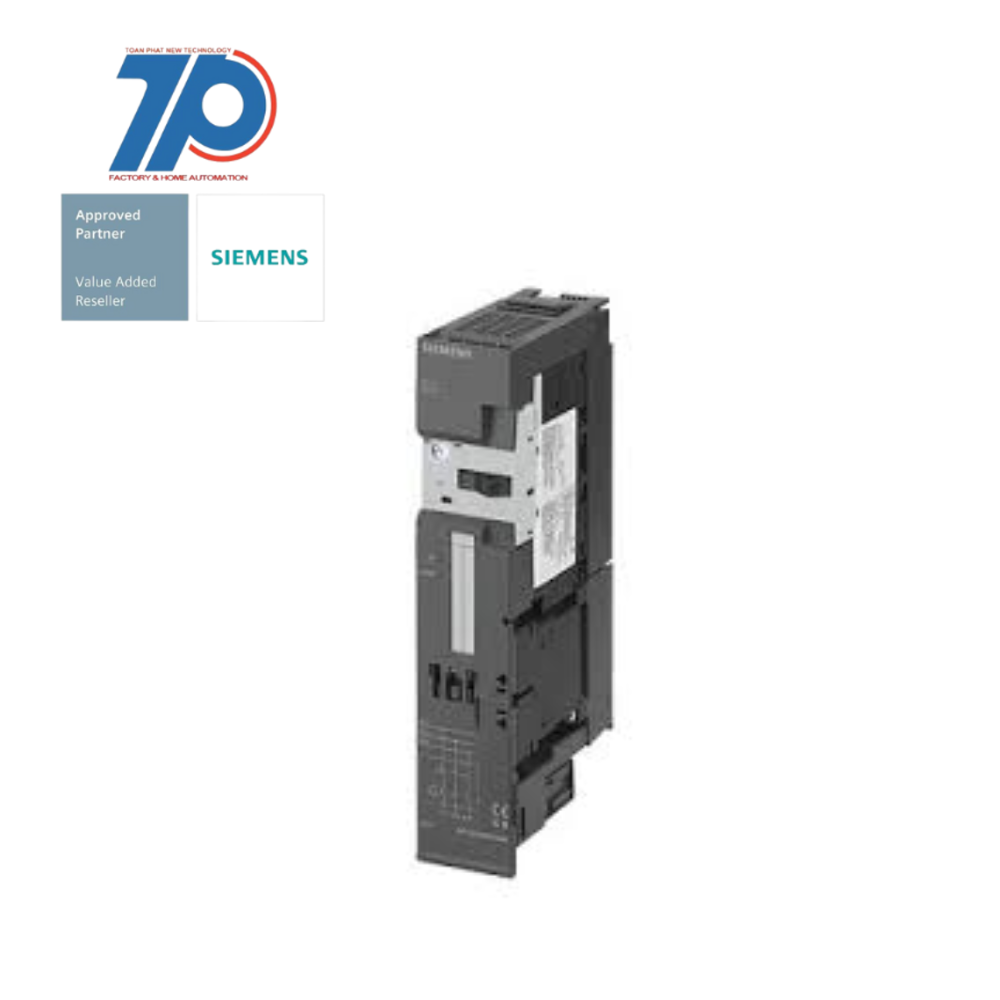

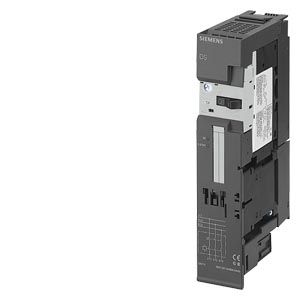

DS1-X for ET 200S Standard DOL Starter
The DS1-X for ET 200S Standard DOL starter is an expandable starter designed for AC-3 applications with a setting range of 7...10 A and a power rating of 4 kW at 400 V. It is an electromechanical starter specifically designed for brake control module.
ET 200S Distributed I/O
The ET 200S distributed I/O system has been superseded by the new ET 200SP system.
Technical Features:
Commercial Benefits:
- Setting range: 7...10 A AC-3
- Power rating: 4 kW / 400 V
- Expandable starter
- Electromechanical starter
- Designed for brake control module
- Enhanced control and protection for AC-3 applications
- Efficient and reliable operation
- Easy installation and expandability
- Superseded by the new ET 200SP system for future-proof investment
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Type of electrical connection of main circuit | Screw connection |
| Rated control supply voltage DC | 20.4 V |
| Height | 265 mm |
| Degree of protection (IP) | IP20 |
| With transformer | false |
| With short-circuit release | true |
| Width | 45 mm |
| Type of motor starter | Direct online starter (DOL) |
| Release class | CLASS 10 |
| Voltage type for actuating | DC |
| Rated operation power at AC-3, 400 V | 4 kW |
| Rated operation current at AC-3, 400 V | 10 A |
| Overload release current setting | 7 A |
| Rated control supply voltage DC | 28.8 V |
| Depth | 120 mm |
| Overload release current setting | 10 A |
| Supporting protocol for ASI | false |
