Material ID: 3RK1304-5KS70-2AA0

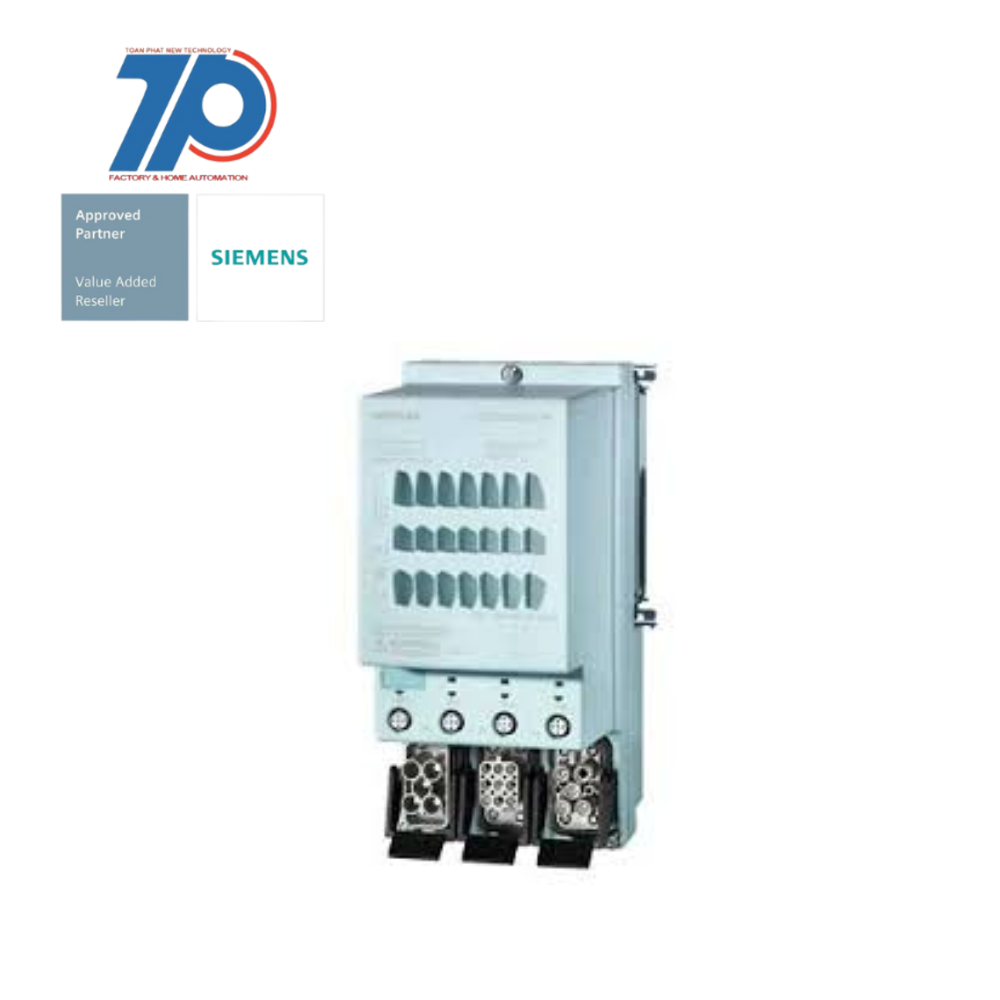

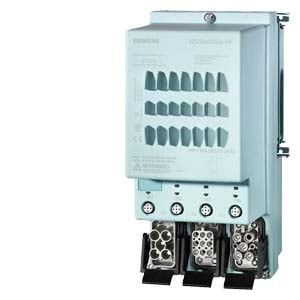

ET 200pro EDSE/DSSE HF electronic direct-on-line starter

The ET 200pro EDSE/DSSE HF electronic direct-on-line starter is an advanced motor protection device designed for operational switching of three-phase motors in the field. It offers short-circuit and overload protection, making it ideal for highly automated applications such as conveyor systems.

Technical Features:

Commercial Benefits:

ET 200pro motor starters - compact and smart.

    • Electronic overload protection + thermistor
    • 400 V 3 AC/0.9 kW 0.15 A...2.00 A
    • Without brake contact
    • 4 DI Han Q4/2 - Han Q8/0
    • Fully integrated in the ET 200pro distributed I/O system
    • Easy configuration in the TIA Portal
    • Cabinet-free use with high IP65/67 degree of protection
    • Integrated communication via PROFIBUS and PROFINET
    • Wide setting range reduces costs for stock keeping and configuration
    • Fast installation and replacement with wiring bus and plug-in technology
    • Increased plant availability
    • Motor Starter ES software for configuration, commissioning, operation, and diagnostics
    • PROFIenergy for active and efficient energy management
    • Worldwide approvals (e.g., IEC, CCC, UL/CSA)
    • IE3/IE4-ready
    • Available as direct-on-line or reversing starter
    • Various motor current ranges
    • Standard or High-Feature versions (including soft start function)
    • Optional repair switch module for secure isolation during repair work
    • Fail-safe repair switch and disconnecting module for fail-safe applications
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Rated control supply voltage DC20.4 V
Rated control supply voltage DC28.8 V
Voltage type for actuatingDC
Height230 mm
Overload release current setting2 A
Depth160 mm
Rated operation power at AC-3, 400 V0.9 kW
Degree of protection (IP)IP65
Rated operation current Ie2 A
Supporting protocol for ASIfalse
Overload release current setting0.15 A
Width110 mm
Rated operation current at AC-3, 400 V2 A
With transformerfalse
With short-circuit releasetrue
