Material ID: 3RK1304-5LS40-4AA0

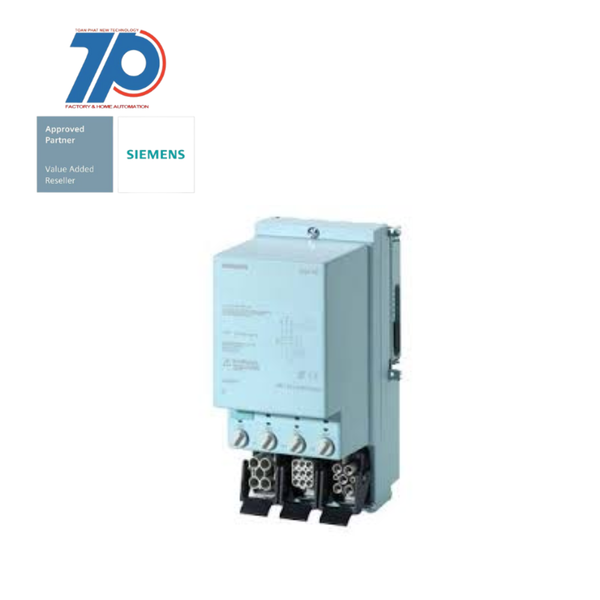

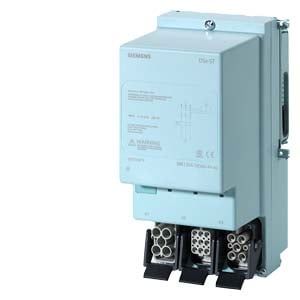

ET 200pro DSE ST DOL starter

Standard Mechanical switching Electronic overload protection AC-3, 5.5 kW / 400 V 1.50 A...12.00 A without brake contact

Technical Features:

Commercial Benefits:

    • Fully integrated in the ET 200pro distributed I/O system
    • Fast and comprehensive configuration in the TIA Portal
    • High IP65/67 degree of protection for cabinet-free use
    • Integrated communication via PROFIBUS and PROFINET
    • Wide setting range for reduced device variety and cost
    • Easy installation with wiring bus and plug-in technology
    • Motor Starter ES software for configuration, commissioning, operation, and diagnostics
    • PROFIenergy for active and efficient energy management
    • Worldwide approvals (e.g. IEC, CCC, UL/CSA) and IE3/IE4-ready
    • Available as direct-on-line or reversing starter with various motor current ranges
    • Standard or High-Feature versions (including soft start function)
    • Optional repair switch module for secure isolation during repair work
    • Fail-safe repair switch and disconnecting module for fail-safe applications
    • Operational switching of three-phase motors in the field
    • Short-circuit and overload protection
    • Fully TIA-integrated for highly automated applications
    • Cabinet-free use reduces costs and increases availability
    • Reduces stock keeping and configuration costs
    • Compact and smart design
Additional Information

Support

Technical Data

Manuals / Links

ID: 3RK1304-5LS40-4AA0

Click to View: ➡️ 3D CAD Model



Thông số kỹ thuật
FEATUREVALUE
With short-circuit releasetrue
Overload release current setting12 A
Rated operation power at AC-3, 400 V5.5 kW
With transformerfalse
Degree of protection (IP)IP65

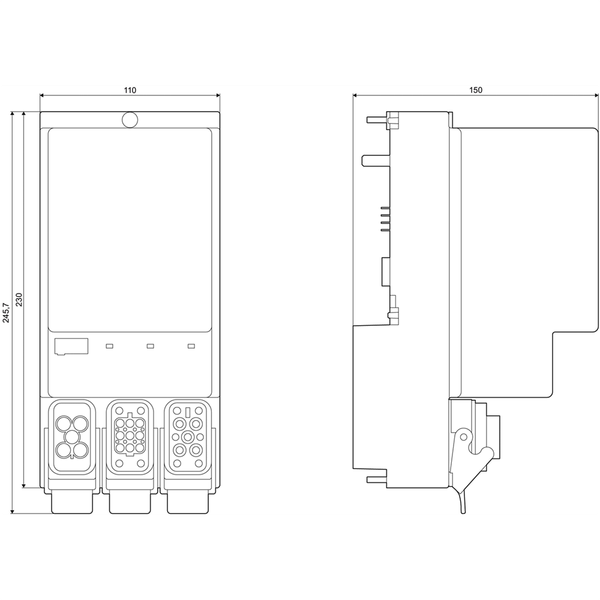

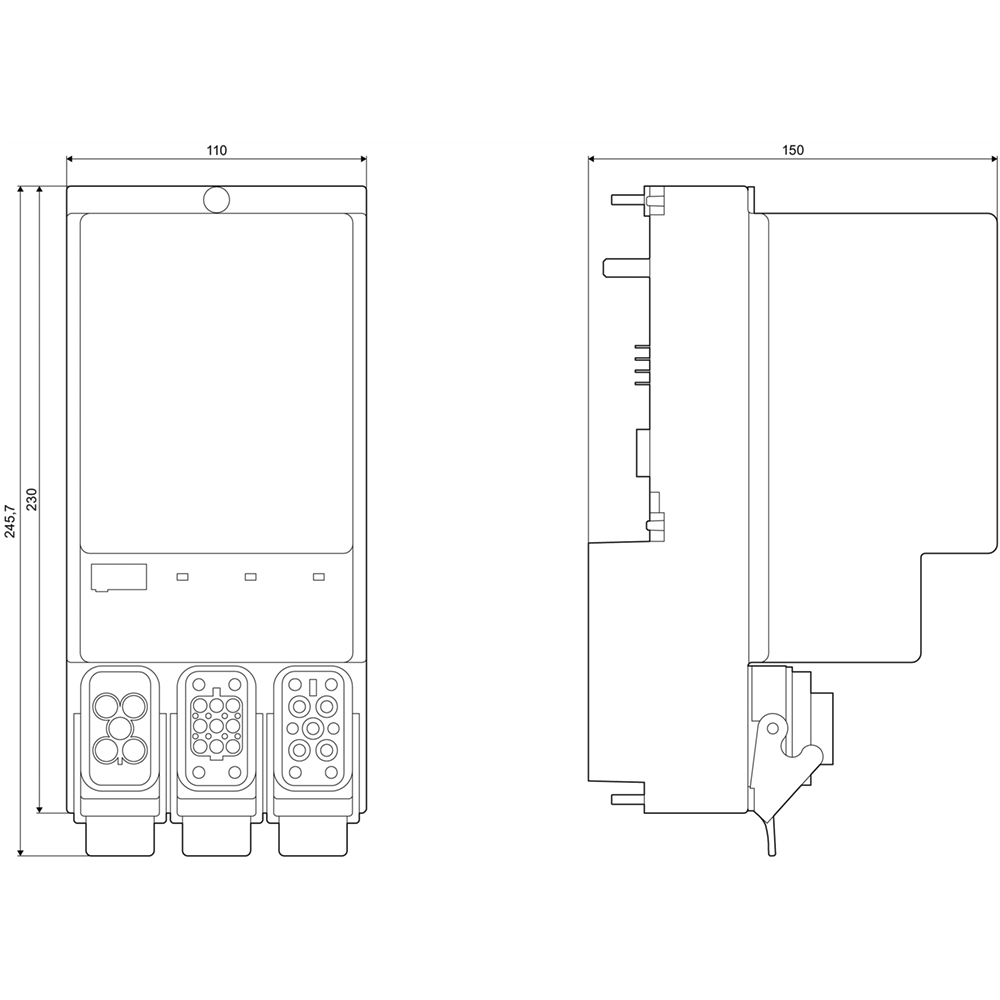

Depth150 mm
Release classCLASS 10
Voltage type for actuatingDC
Overload release current setting1.5 A
Rated control supply voltage DC20.4 V
Width110 mm
Rated operation current at AC-3, 400 V12 A
Rated operation current Ie12 A
Height230 mm
Rated control supply voltage DC28.8 V
Supporting protocol for ASIfalse
