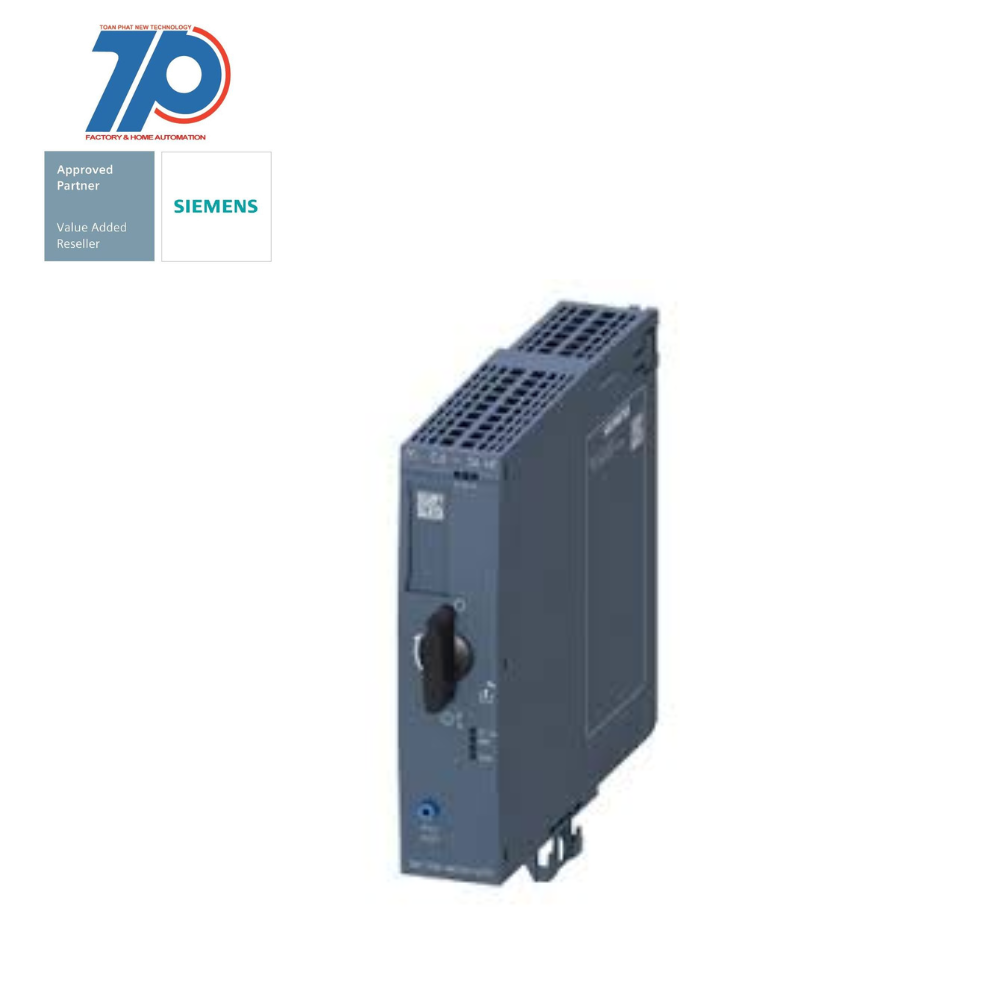

3RK1308-0AC00-0CP0

• Direct-on-line starter High Feature
• Electronic switching
• Electronic overload protection up to 1.1 kW / 400 V
• Adjustment range 0.9 .. 3 A
• PROFIenergy
• Option: 3DI/LC module Direct-on-line starter SIMATIC ET 200SP for functional switching of three-phase motors, with short-circuit protection and electronic overload protection
• The multifunctional motor starters are fully integrated in the ET 200SP distributed I/O system
• The fast and comprehensive configuration takes place in the TIA Portal
• Thanks to hybrid switching technology, the devices are extremely durable and energy efficient
• Thanks to the wide setting range, there is less variety of devices which means reduced costs for stock keeping and configuration
• The narrow design saves space in the control cabinet
• The easy installation by means of a wiring bus and plug-in technology facilitates fast replacement of the motor starters and increases the availability of the plant
• The devices are approved for worldwide use (e.g. IEC, CCC and UL/CSA) and are IE3/IE4-ready
• Available as direct-on-line or reversing starter with various motor current ranges, optionally with safety-related shutdown, also for hazardous applications (ATEX)
• A BaseUnit is necessary for operation of the ET 200SP motor starter
• Optionally, a 3DI/LC control module can be snapped on, in order to establish local control with three additional digital inputs
• The ET 200SP distributed I/O supersedes the tried and tested ET 200S system
• ET 200SP motor starters - flexible Powerful. Space-saving.
