6AG1123-2DB03-2AX0

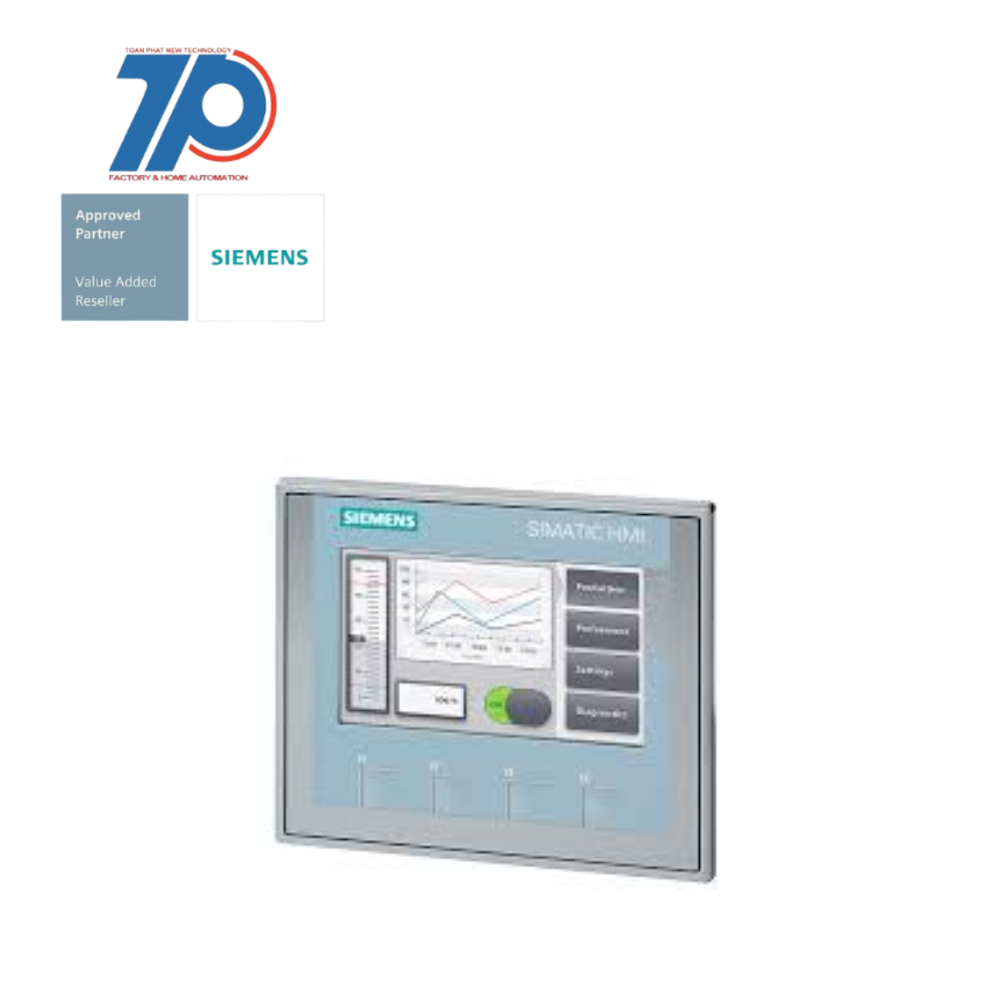

SIPLUS HMI KTP400 Basic Color PN

SIPLUS HMI KTP400 Basic Color PN is a robust and reliable human-machine interface panel designed for industrial applications. It is based on the 6AV2123-2DB03-0AX0 model and features a conformal coating, making it suitable for use in harsh environments with temperatures ranging from -20°C to +60°C.

Technical Features:

Commercial Benefits:

The SIPLUS HMI KTP400 Basic Color PN is part of the SIMATIC HMI Basic Panels of the 2nd Generation. These panels are designed to provide a cost-effective solution for simple visualization tasks at the machine level. They are perfectly compatible with the SIMATIC S7-1200 Basic Controllers, making them an ideal choice for small machines and plants.

The Basic Panels come in different sizes, including 4", 7", 9", and 12" (diagonal) widescreen displays. They offer combined pushbutton/touch-screen operation and support gesture control. The high-resolution displays with 64,000 colors can be dimmed up to 100%, providing flexibility in various lighting conditions.

The operator interface of the SIPLUS HMI KTP400 Basic Color PN has been improved for enhanced usability. It offers new controls and graphics, allowing for a perse range of options. The panel also features a USB interface for easy connection of peripherals such as a keyboard, mouse, or barcode scanner. It supports simple archiving, backup, and restoration of data directly from a USB flash drive.

For demanding applications in harsh ambient conditions, SIPLUS extreme devices are recommended. The conformal coating of the SIPLUS HMI KTP400 Basic Color PN protects the internal components from 100% relative humidity, condensation, corrosive substances, and gases.

• • 4" TFT display
  • 65536 colors
  • PROFINET interface
