Material ID: 6AG1123-2GA03-2AX0

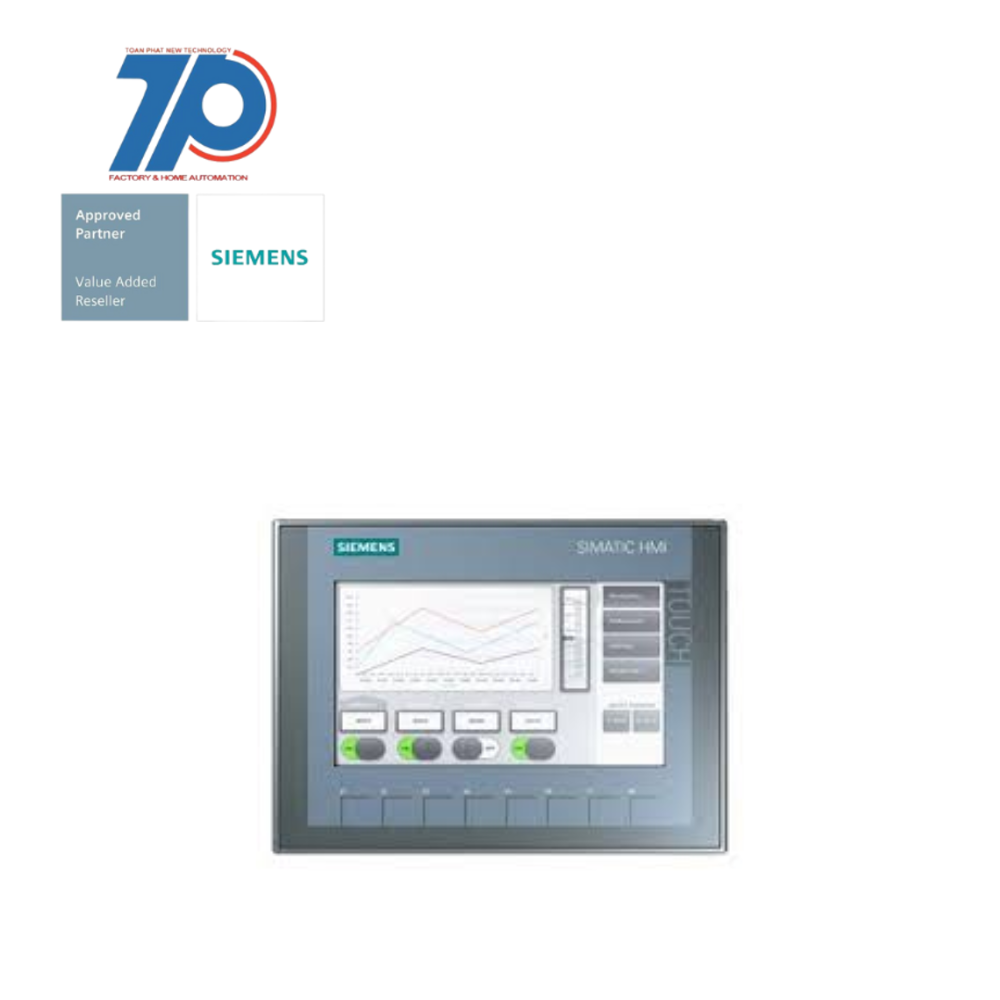

SIPLUS HMI KTP700 Basic DP

SIPLUS HMI KTP700 Basic DP is a rugged human-machine interface (HMI) device designed for harsh ambient conditions. It is based on the 6AV2123-2GA03-0AX0 model and features a conformal coating that protects it from extreme temperatures ranging from -20°C to +50°C.

Technical Features:

Commercial Benefits:

The SIPLUS HMI KTP700 Basic DP is part of the SIMATIC HMI Basic Panels of the 2nd Generation. These panels are designed for cost-effective implementation of simple visualization tasks at the machine level. They are ideal for small machines and plants and are compatible with SIMATIC S7-1200 Basic Controllers.

The Basic Panels come in different sizes: 4", 7", 9", or 12" (diagonal) widescreen displays. They offer combined pushbutton/touch-screen operation and support gesture control. The high-resolution displays with 64,000 colors can be installed upright and have dimmable brightness up to 100%.

The operator interface of the SIPLUS HMI KTP700 Basic DP provides improved usability with new controls and graphics. It also features a USB interface for connecting a keyboard, mouse, or barcode scanner. The USB interface allows for simple archiving, backup, and restoration of data directly at the panel using a USB flash drive.

For extremely challenging tasks in harsh ambient conditions, SIPLUS extreme devices are available. The conformal coating of the SIPLUS HMI KTP700 Basic DP protects it from 100% relative humidity, condensation, corrosive substances, and gases.

    • Key/touch operation
    • 7" TFT display with 65536 colors
    • PROFIBUS interface
    • Configurable with WinCC Basic V13/ STEP 7 Basic V13
    • Contains open source software provided free of charge
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Height of the front158 mm
Number of HW-interfaces industrial Ethernet0
Operating temperature-20 °C
Radio standard UMTSfalse
Degree of protection (IP), front sideIP65
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for PROFINET IOfalse
Radio standard GSMfalse
Number of function buttons, programmable8
Number of colours of the display65536
Supporting protocol for INTERBUSfalse
Radio standard Bluetoothfalse
Number of HW-interfaces RS-4851
With message system (incl. buffer and confirmation)true
Supporting protocol for PROFIsafefalse
With SW interfacesfalse
With numeric keyboardtrue
Supporting protocol for TCP/IPfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Process default value (input) possibletrue
With recipestrue
Supporting protocol for SafetyBUS pfalse
Supply voltage DC19.2 V
With message indicationtrue
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces USB1
Number of interfaces PROFINET0
Supporting protocol for PROFIBUStrue
Number of HW-interfaces parallel0
With alpha numeric keyboardtrue
Supporting protocol for Data-Highwayfalse
Suitable for safety functionsfalse
Width of the front214 mm
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Number of grey-scales/blue-scales of display0
Useful project memory/user memory10000 kByte
Number of HW-interfaces other0
Supporting protocol for other bus systemstrue
Number of buttons with LED0
Number of password levels50
Supporting protocol for PROFINET CBAfalse
Additional software components, loadablefalse
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces serial TTY0
Supporting protocol for CANfalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-2320
Supporting protocol for KNXfalse
Supporting protocol for EtherNet/IPfalse
Number of online languages10
Supporting protocol for LONfalse
Process value representation (output) possibletrue
Colour displaytrue
Number of HW-interfaces wireless0
Operating temperature50 °C
Supporting protocol for SERCOSfalse
Wall mounting/direct mountingfalse
Number of pixels, horizontal800
Screen diagonal7 inch
Number of pixels, vertical480
Rail mounting possiblefalse
Built-in depth39 mm
Number of HW-interfaces RS-4221
Number of system buttons0
With printer outputfalse
Radio standard WLAN 802.11false
Supply voltage DC28.8 V
IO link masterfalse
