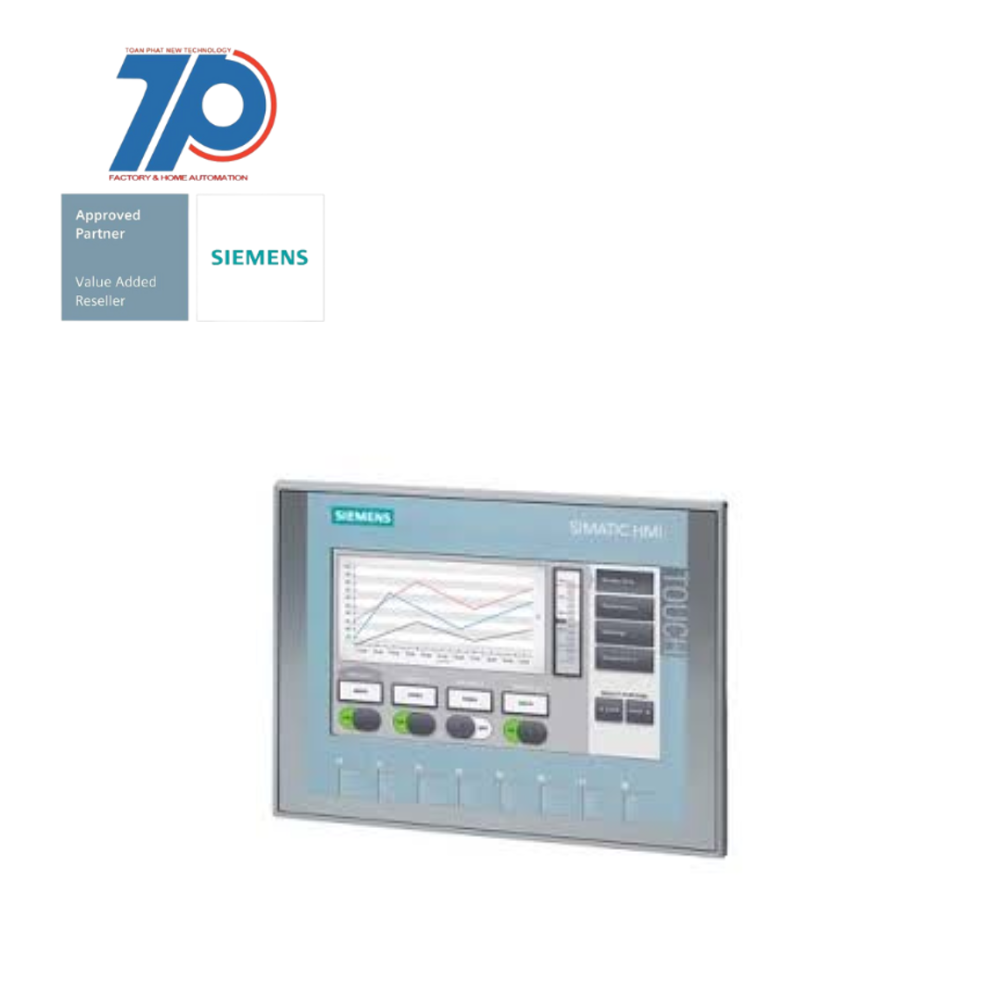

Based on 6AV2123-2GB03-0AX0 with conformal coating, -20…+50 °C, 7" TFT display, 65536 colors PROFINET interface
SIPLUS HMI KTP700 Basic Color PN is part of the SIMATIC HMI Basic Panels of the 2nd Generation. These panels are designed for cost-effective implementation of simple visualization tasks at the machine level. They are perfect entry-level devices for small machines and plants, and are compatible with SIMATIC S7-1200 Basic Controllers.
The Basic Panels come in 4", 7", 9", or 12" widescreen displays, with combined pushbutton/touch-screen operation and support for gesture control. The high-resolution devices with 64,000 color displays can be installed upright and have dimmable brightness up to 100%.
The operator interface offers improved usability with new controls and graphics. The USB interface allows connection of a keyboard, mouse, or barcode scanner, and supports simple archiving, backup, and restoration of data using a USB flash drive directly at the panel.
For challenging tasks in harsh ambient conditions, SIPLUS extreme devices are recommended. The conformal coating protects the panels from 100% relative humidity, condensation, corrosive substances, and gases.
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Supporting protocol for PROFIBUS | false |
Number of HW-interfaces RS-232 | 0 |
Supporting protocol for TCP/IP | true |
Screen diagonal | 7 inch |
Rail mounting possible | false |
Wall mounting/direct mounting | false |
Operating temperature | 50 °C |
Built-in depth | 39 mm |
Number of pixels, horizontal | 800 |
Radio standard WLAN 802.11 | false |
Supporting protocol for Foundation Fieldbus | false |
With recipes | true |
Supporting protocol for other bus systems | true |
Supporting protocol for DeviceNet | false |
Supporting protocol for SERCOS | false |
With message system (incl. buffer and confirmation) | true |
With SW interfaces | false |
Supporting protocol for LON | false |
Supporting protocol for Data-Highway | false |
Number of function buttons, programmable | 8 |
Number of colours of the display | 65536 |
Supply voltage DC | 19.2 V |
Number of interfaces PROFINET | 1 |
Number of system buttons | 0 |
Degree of protection (IP), front side | IP65 |
With numeric keyboard | true |
Supporting protocol for CAN | false |
IO link master | false |
Number of HW-interfaces industrial Ethernet | 1 |
Number of grey-scales/blue-scales of display | 0 |
Supporting protocol for EtherNet/IP | true |
Supply voltage DC | 28.8 V |
Colour display | true |
Process default value (input) possible | true |
Number of HW-interfaces RS-485 | 0 |
Supporting protocol for PROFINET IO | false |
Supporting protocol for SUCONET | false |
Supporting protocol for PROFIsafe | false |
Supporting protocol for KNX | false |
Number of password levels | 50 |
Number of HW-interfaces USB | 1 |
With printer output | false |
Number of HW-interfaces serial TTY | 0 |
Number of pixels, vertical | 480 |
Supporting protocol for INTERBUS | false |
Number of HW-interfaces wireless | 0 |
Voltage type (supply voltage) | DC |
Supporting protocol for INTERBUS-Safety | false |
Radio standard Bluetooth | false |
Width of the front | 214 mm |
Radio standard GPRS | false |
With message indication | true |
Radio standard GSM | false |
With alpha numeric keyboard | true |
Operating temperature | -20 °C |
Supporting protocol for PROFINET CBA | false |
Process value representation (output) possible | true |
Number of buttons with LED | 0 |
Supporting protocol for AS-Interface Safety at Work | false |
Number of HW-interfaces parallel | 0 |
Radio standard UMTS | false |
Supporting protocol for ASI | false |
Supporting protocol for Modbus | true |
Useful project memory/user memory | 10000 kByte |
Number of HW-interfaces other | 0 |
Height of the front | 158 mm |
Additional software components, loadable | false |
Number of HW-interfaces RS-422 | 0 |
Supporting protocol for DeviceNet Safety | false |
Suitable for safety functions | false |
Supporting protocol for SafetyBUS p | false |
Number of online languages | 10 |
