Material ID: 6AG1123-2JB03-2AX0

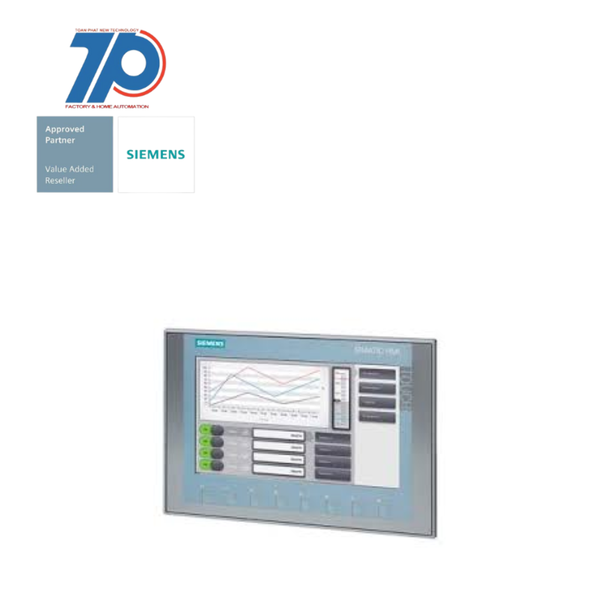

SIPLUS HMI KTP900 Basic Color PN

SIPLUS HMI KTP900 Basic Color PN is a rugged human-machine interface (HMI) device designed for use in harsh ambient conditions. It is based on the 6AV2123-2JB03-0AX0 model and features a conformal coating that protects the internal components.

The device operates in a temperature range of -20°C to +50°C, making it suitable for use in extreme environments. It features a 9" TFT display with 65536 colors, providing clear and vibrant visuals.

The PROFINET interface allows for seamless integration with other industrial automation systems, enabling efficient communication and control.

SIMATIC HMI Basic Panels of the 2nd Generation - the beauty of simplicity!

SIMATIC HMI Basic Panels of the 2nd Generation are ideal for cost-effective implementation of simple visualization tasks at the machine level. These entry-level devices are perfectly suited for small machines and plants, and they seamlessly integrate with SIMATIC S7-1200 Basic Controllers.

The Basic Panels are available in 4", 7", 9", or 12" widescreen displays, offering a range of options to suit different requirements. The displays support both pushbutton and touch-screen operation, and they also support gesture control for enhanced user interaction.

These high-resolution devices with 64,000 color displays can be installed upright and offer flexible brightness control, allowing the user to adjust the brightness up to 100%.

Innovative Operator Interface

The SIPLUS HMI KTP900 Basic Color PN features an innovative operator interface with improved usability. It offers new controls and graphics, providing a perse range of options for efficient operation and visualization.

The device is equipped with a USB interface, enabling easy connection of a keyboard, mouse, or barcode scanner. It also supports simple archiving, as well as backup and restoration of data directly from a USB flash drive.

SIPLUS Extreme Devices

For extremely challenging tasks in harsh ambient conditions, SIPLUS extreme devices are the equipment of choice. The conformal coating on the SIPLUS HMI KTP900 Basic Color PN protects the internal components from 100% relative humidity, condensation, corrosive substances, and gases.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE

    Supporting protocol for TCP/IPtrue
    Supporting protocol for PROFINET IOfalse
    Radio standard Bluetoothfalse
    Supply voltage DC19.2 V
    Supporting protocol for SERCOSfalse
    With recipestrue
    Number of password levels50
    Operating temperature50 °C
    Supporting protocol for SUCONETfalse
    Wall mounting/direct mountingfalse
    Height of the front182 mm
    Operating temperature-20 °C
    Number of interfaces PROFINET1
    Number of system buttons0
    Supporting protocol for Foundation Fieldbusfalse
    Supporting protocol for KNXfalse
    Number of HW-interfaces USB1
    Number of function buttons, programmable8
    Number of colours of the display65536
    Supply voltage DC28.8 V
    Supporting protocol for INTERBUSfalse
    Colour displaytrue
    Process default value (input) possibletrue
    Number of HW-interfaces RS-4850
    Supporting protocol for PROFIBUSfalse
    Supporting protocol for other bus systemstrue
    Supporting protocol for DeviceNetfalse
    Supporting protocol for LONfalse
    With numeric keyboardtrue
    Supporting protocol for PROFIsafefalse
    IO link masterfalse
    Number of HW-interfaces industrial Ethernet1
    Number of HW-interfaces RS-2320
    With message system (incl. buffer and confirmation)true
    With SW interfacesfalse
    Screen diagonal9 inch
    Degree of protection (IP), front sideIP65
    Supporting protocol for CANfalse
    With message indicationtrue
    Supporting protocol for AS-Interface Safety at Workfalse
    With printer outputfalse
    Number of HW-interfaces wireless0
    Process value representation (output) possibletrue
    Number of pixels, vertical480
    Number of buttons with LED0
    Useful project memory/user memory10000 kByte
    Number of HW-interfaces other0
    Width of the front267 mm
    Number of pixels, horizontal800
    Supporting protocol for DeviceNet Safetyfalse
    Number of HW-interfaces RS-4220
    Rail mounting possiblefalse
    Supporting protocol for Data-Highwayfalse
    Radio standard GPRSfalse
    Number of grey-scales/blue-scales of display0
    Radio standard GSMfalse
    Supporting protocol for INTERBUS-Safetyfalse
    Number of HW-interfaces serial TTY0
    Radio standard WLAN 802.11false
    Supporting protocol for EtherNet/IPtrue
    Suitable for safety functionsfalse
    Supporting protocol for SafetyBUS pfalse
    With alpha numeric keyboardtrue
    Voltage type (supply voltage)DC
    Supporting protocol for PROFINET CBAfalse
    Number of online languages10
    Number of HW-interfaces parallel0
    Built-in depth55 mm
    Radio standard UMTSfalse
    Additional software components, loadablefalse
    Supporting protocol for ASIfalse
    Supporting protocol for Modbustrue
