Material ID: 6AG1123-2MA03-2AX0

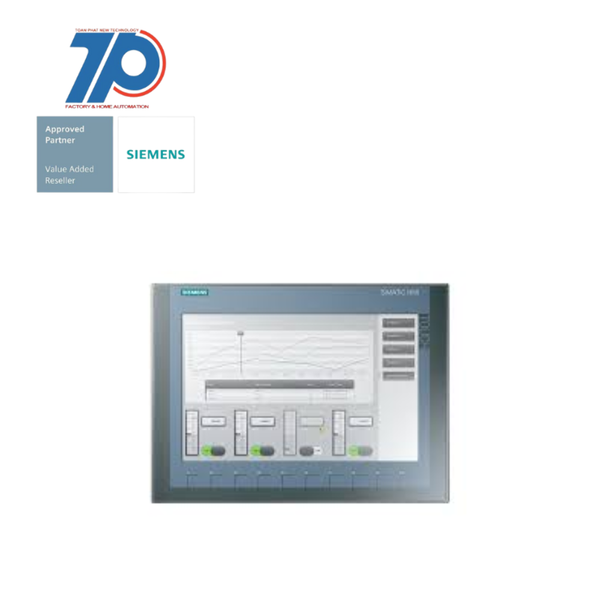

SIPLUS HMI KTP1200 Basic DP

SIPLUS HMI KTP1200 Basic DP is a rugged human-machine interface (HMI) device designed for harsh ambient conditions. It is based on the 6AV2123-2MA03-0AX0 model and features a conformal coating that protects it from extreme temperatures ranging from -10°C to +50°C.

Technical Features:

Commercial Benefits:

The SIPLUS HMI KTP1200 Basic DP is part of the SIMATIC HMI Basic Panels of the 2nd Generation. These panels are designed for cost-effective implementation of simple visualization tasks at the machine level. They are perfect entry-level devices for small machines and plants, and they seamlessly integrate with the SIMATIC S7-1200 Basic Controllers.

The Basic Panels come in different sizes, including 4", 7", 9", and 12" (diagonal) widescreen displays. They offer combined pushbutton/touch-screen operation and support gesture control. The high-resolution displays with 64,000 colors are suitable for upright installation and have dimmable brightness up to 100%.

The SIPLUS HMI KTP1200 Basic DP also features an innovative operator interface with improved usability. It offers new controls and graphics, and the USB interface allows for easy connection of a keyboard, mouse, or barcode scanner. It also supports simple archiving, backup, and restoration of data using a USB flash drive directly at the panel.

For extremely challenging tasks in harsh ambient conditions, SIPLUS extreme devices are recommended. The conformal coating of the SIPLUS HMI KTP1200 Basic DP protects it from 100% relative humidity, condensation, corrosive substances, and gases.

    • Key/touch operation
    • 12" TFT display with 65536 colors
    • PROFIBUS interface
    • Configurable with WinCC Basic V13/ STEP 7 Basic V13
    • Contains open source software
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Number of system buttons0
Useful project memory/user memory10000 kByte
Number of HW-interfaces other0
With alpha numeric keyboardtrue
Number of HW-interfaces wireless0
Supporting protocol for EtherNet/IPfalse
Operating temperature50 °C
Number of function buttons, programmable10
Supporting protocol for LONfalse
Supporting protocol for CANfalse
Number of colours of the display65536
With printer outputfalse
Number of online languages10
Degree of protection (IP), front sideIP65
Colour displaytrue
Number of HW-interfaces RS-4221
Number of pixels, horizontal1280
Additional software components, loadablefalse
Supporting protocol for DeviceNetfalse
Number of grey-scales/blue-scales of display0
Number of buttons with LED0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SafetyBUS pfalse
Radio standard GPRSfalse
Screen diagonal12 inch
Number of pixels, vertical800
Process value representation (output) possibletrue
Supporting protocol for SUCONETfalse
Number of HW-interfaces RS-2320
Supporting protocol for INTERBUSfalse
With recipestrue
Number of password levels50
Height of the front245 mm
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces serial TTY0
Rail mounting possiblefalse
Width of the front330 mm
Built-in depth60 mm
Supporting protocol for KNXfalse
Supporting protocol for PROFINET IOfalse
Radio standard UMTSfalse
Supporting protocol for SERCOSfalse
Supporting protocol for other bus systemstrue
With SW interfacesfalse
Radio standard WLAN 802.11false
Process default value (input) possibletrue
Radio standard Bluetoothfalse
With message indicationtrue
Supply voltage DC28.8 V
Supporting protocol for AS-Interface Safety at Workfalse
Supply voltage DC19.2 V
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces parallel0
Number of interfaces PROFINET0
Supporting protocol for DeviceNet Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Wall mounting/direct mountingfalse
Supporting protocol for TCP/IPfalse
With numeric keyboardtrue
Supporting protocol for Data-Highwayfalse
Operating temperature-10 °C
IO link masterfalse
Supporting protocol for PROFIBUStrue
Supporting protocol for PROFIsafefalse
Suitable for safety functionsfalse
Number of HW-interfaces RS-4851
With message system (incl. buffer and confirmation)true
Number of HW-interfaces USB1
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Radio standard GSMfalse
