Material ID: 6AG1124-0JC01-4AX0

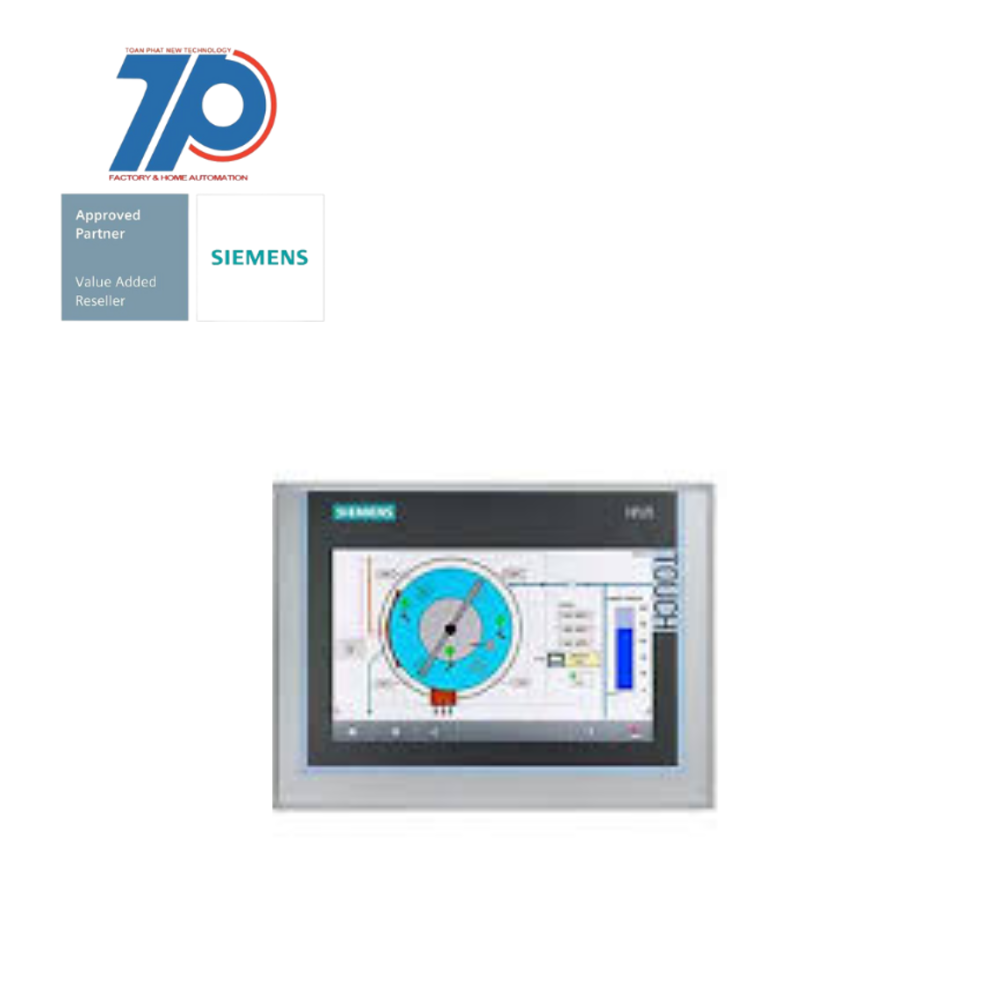

SIPLUS HMI TP900 Comfort

SIPLUS HMI TP900 Comfort is a high-performance visualization device designed for machine-level tasks. It is based on the 6AV2124-0JC01-0AX0 model and features a conformal coating.

Technical Features:

Commercial Benefits:

SIPLUS HMI TP900 Comfort offers the following commercial benefits:

    • Operating Temperature: 0...+50 °C
    • Conformal Coating: The device is protected by a conformal coating, which safeguards the internal components from harsh ambient conditions.
    • Reliability: The conformal coating ensures the device's durability and protection, even in challenging conditions such as 100% relative humidity, condensation, corrosive substances, and gases.
    • Enhanced Performance: The device is capable of handling extremely challenging visualization tasks.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Number of HW-interfaces RS-2320
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
Supporting protocol for SUCONETfalse
Number of pixels, horizontal800
Radio standard WLAN 802.11false
Process value representation (output) possibletrue
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for KNXfalse
Supporting protocol for SERCOSfalse
Supporting protocol for SafetyBUS pfalse
Supply voltage DC19.2 V
Number of buttons with LED0
Supporting protocol for ASIfalse
Supporting protocol for PROFINET IOtrue
With alpha numeric keyboardtrue
Number of HW-interfaces other0
Supporting protocol for LONfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for AS-Interface Safety at Workfalse
Height of the front190 mm
Supporting protocol for Modbustrue
Supporting protocol for TCP/IPtrue
Radio standard UMTSfalse
Degree of protection (IP), front sideIP65
With numeric keyboardtrue
Number of HW-interfaces parallel0
Supporting protocol for DeviceNet Safetyfalse
Built-in depth63 mm
Colour displaytrue
With message indicationtrue
Process default value (input) possibletrue
Wall mounting/direct mountingfalse
Radio standard GSMfalse
Number of HW-interfaces USB2
Number of password levels50
Suitable for safety functionsfalse
With recipestrue
Supporting protocol for other bus systemstrue
Supporting protocol for INTERBUSfalse
Supporting protocol for EtherNet/IPtrue
Number of HW-interfaces RS-4221
Operating temperature50 °C
Number of interfaces PROFINET2
Operating temperature0 °C
Width of the front274 mm
Number of function buttons, programmable0
Radio standard Bluetoothfalse
With printer outputtrue
Number of HW-interfaces serial TTY0
Rail mounting possiblefalse
Number of HW-interfaces industrial Ethernet2
IO link masterfalse
Number of colours of the display16777216
Supporting protocol for PROFIBUStrue
Additional software components, loadabletrue
Number of pixels, vertical480
Number of grey-scales/blue-scales of display0
Screen diagonal9 inch
Number of online languages32
Supply voltage DC28.8 V
Type of displayTFT
Number of HW-interfaces wireless0
With SW interfacesfalse
Supporting protocol for Foundation Fieldbusfalse
Useful project memory/user memory12000 kByte
Supporting protocol for CANfalse
Radio standard GPRSfalse
Supporting protocol for DeviceNetfalse
Number of system buttons0
