Material ID: 6AG1124-0MC01-4AX0SIPLUS HMI TP1200 Comfort

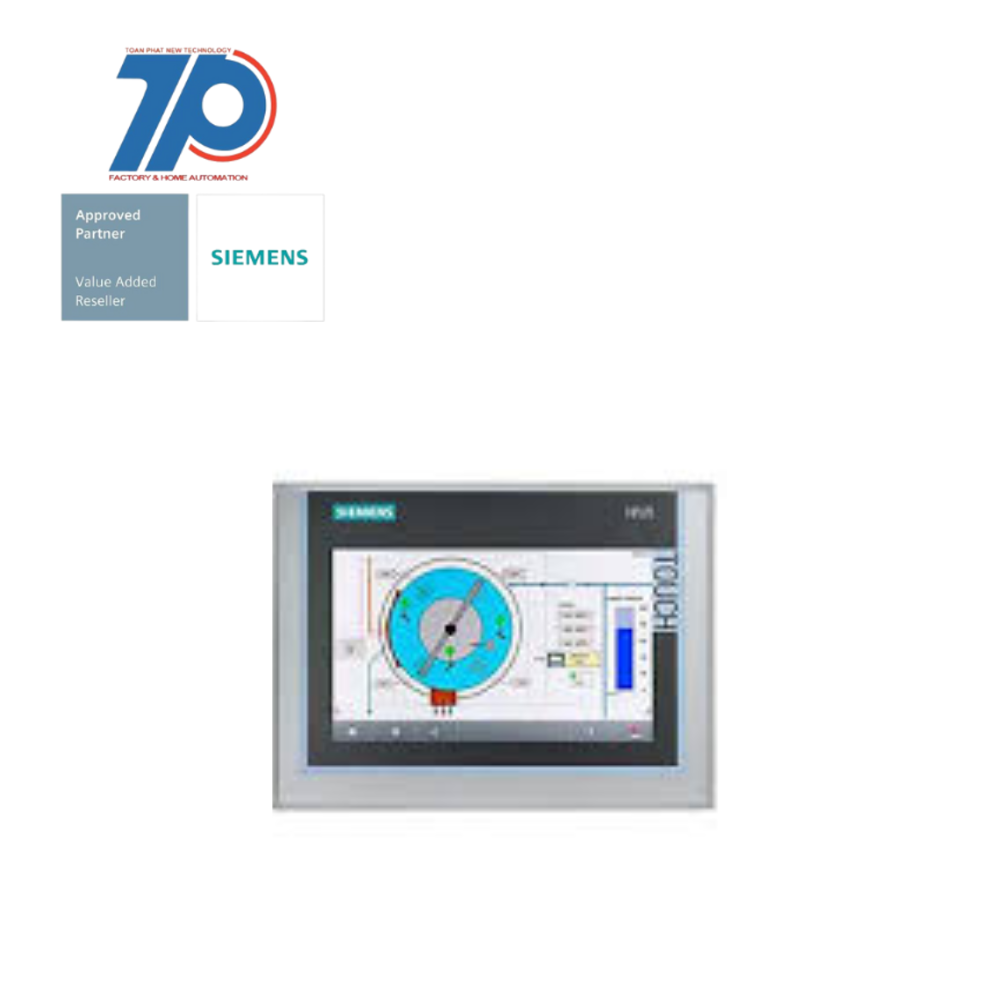

SIPLUS HMI TP1200 Comfort
Technical Features:
Product Description:
The SIPLUS HMI TP1200 Comfort is a high-performance visualization panel designed for machine-level tasks. It is equipped with a conformal coating that provides protection against harsh ambient conditions, including 100% relative humidity, condensation, corrosive substances, and gases.
Commercial Benefits:
The SIPLUS extreme devices are the ideal choice for extremely challenging tasks in harsh environments. With the conformal coating, the SIPLUS HMI TP1200 Comfort ensures reliable operation and longevity, even in the most demanding conditions.
- Model: 6AV2124-0MC01-0AX0
- Operating Temperature: 0...+50 °C
- Conformal Coating: Yes
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| IO link master | false |
| Number of colours of the display | 16777216 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of HW-interfaces USB | 2 |
| Supporting protocol for PROFINET CBA | false |
| Number of HW-interfaces RS-422 | 1 |
| Operating temperature | 50 °C |
| Supporting protocol for PROFIBUS | true |
| Height of the front | 241 mm |
| Number of system buttons | 0 |
| Degree of protection (IP), front side | IP65 |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for CAN | false |
| With SW interfaces | false |
| Colour display | true |
| Number of interfaces PROFINET | 2 |
| Number of password levels | 50 |
| Built-in depth | 65 mm |
| Supporting protocol for other bus systems | true |
| Additional software components, loadable | true |
| Operating temperature | 0 °C |
| Useful project memory/user memory | 12000 kByte |
| Number of pixels, vertical | 800 |
| Process value representation (output) possible | true |
| Number of online languages | 32 |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Number of pixels, horizontal | 1280 |
| Number of grey-scales/blue-scales of display | 0 |
| Number of HW-interfaces serial TTY | 0 |
| With printer output | true |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for Foundation Fieldbus | false |
| With message indication | true |
| Process default value (input) possible | true |
| Supporting protocol for ASI | false |
| Supporting protocol for Modbus | true |
| Number of function buttons, programmable | 0 |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for SafetyBUS p | false |
| Radio standard Bluetooth | false |
| Rail mounting possible | false |
| Width of the front | 330 mm |
| Supporting protocol for KNX | false |
| Number of HW-interfaces industrial Ethernet | 2 |
| Supply voltage DC | 19.2 V |
| Supply voltage DC | 28.8 V |
| Type of display | TFT |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for PROFINET IO | true |
| Number of buttons with LED | 0 |
| Wall mounting/direct mounting | false |
| With numeric keyboard | true |
| Radio standard GSM | false |
| Radio standard GPRS | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for Data-Highway | false |
| Number of HW-interfaces other | 0 |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for LON | false |
| Supporting protocol for PROFIsafe | false |
| Suitable for safety functions | false |
| Number of HW-interfaces RS-232 | 0 |
| With recipes | true |
| With message system (incl. buffer and confirmation) | true |
| Number of HW-interfaces RS-485 | 1 |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for EtherNet/IP | true |
| Screen diagonal | 12.1 inch |
| With alpha numeric keyboard | true |
| Radio standard UMTS | false |
