Material ID: 6AG1124-0XC02-4AX1SIPLUS HMI TP2200 Comfort

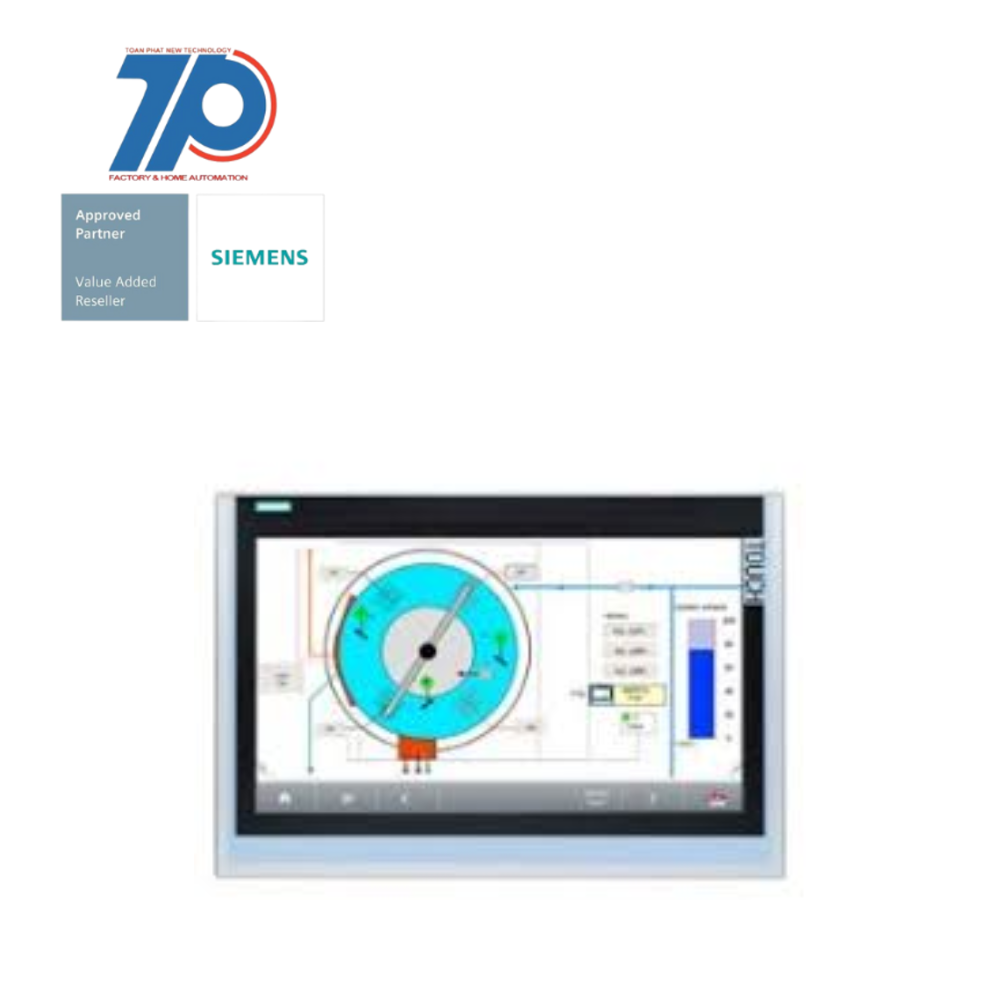

SIPLUS HMI TP2200 Comfort

Technical Features:

Commercial Benefits:

The SIPLUS HMI TP2200 Comfort is designed for implementing high-performance visualization tasks at machine-level. It is ideal for extremely challenging tasks in harsh ambient conditions. The conformal coating protects the inside of the Panels even in conditions of 100% relative humidity, condensation, corrosive substances, and gases.

    • Model: 6AV2124-0XC02-0AX1
    • Conformal coating
    • Operating temperature: 0…+45 °C
    • Comfort Panel
    • Touch operation
    • 22" widescreen TFT display
    • 16 million colors
    • PROFINET interface
    • MPI/PROFIBUS DP interface
    • 24 MB configuration memory
    • WEC 2013
    • Configurable as of WinCC Comfort V14 SP1 with HSP
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of interfaces PROFINET2
With recipestrue
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
Radio standard Bluetoothfalse
Supporting protocol for INTERBUSfalse
Number of password levels50
Degree of protection (IP), front sideIP65
Process value representation (output) possibletrue
Process default value (input) possibletrue
Supporting protocol for LONfalse
Number of system buttons0
Rail mounting possiblefalse
Number of HW-interfaces industrial Ethernet2
Supporting protocol for other bus systemstrue
Height of the front380 mm
Number of function buttons, programmable0
Number of grey-scales/blue-scales of display0
IO link masterfalse
Wall mounting/direct mountingfalse
Supporting protocol for SERCOSfalse
Number of online languages32
Supporting protocol for KNXfalse
Colour displaytrue
Number of pixels, horizontal1920
Type of displayTFT
Number of colours of the display16777216
Radio standard UMTSfalse
Number of HW-interfaces RS-2320
Supporting protocol for DeviceNetfalse
Suitable for safety functionsfalse
Operating temperature0 °C
Supporting protocol for EtherNet/IPtrue
Number of HW-interfaces wireless0
Screen diagonal21.5 inch
Additional software components, loadabletrue
Number of HW-interfaces USB2
Supporting protocol for PROFINET IOtrue
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for CANfalse
With printer outputtrue
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces parallel0
Supporting protocol for PROFIBUStrue
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Supporting protocol for DeviceNet Safetyfalse
Operating temperature45 °C
Number of buttons with LED0
Number of HW-interfaces other0
Supporting protocol for TCP/IPtrue
Useful project memory/user memory24000 kByte
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Number of pixels, vertical1080
With SW interfacesfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for AS-Interface Safety at Workfalse
With alpha numeric keyboardtrue
With message indicationtrue
Built-in depth75 mm
Supply voltage DC19.2 V
Supply voltage DC28.8 V
Radio standard GSMfalse
Radio standard WLAN 802.11false
Width of the front560 mm
Supporting protocol for PROFINET CBAfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
With numeric keyboardtrue
