Material ID: 6AG1124-1GC01-4AX0SIPLUS HMI KP700 Comfort

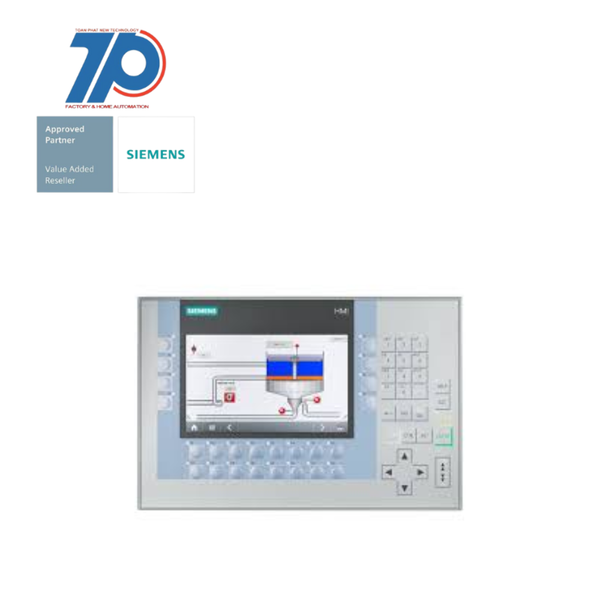

SIPLUS HMI KP700 Comfort

Technical Features:

Product Description:

The SIPLUS HMI KP700 Comfort is a high-performance visualization panel designed for machine-level tasks. It is equipped with a conformal coating that provides protection against harsh ambient conditions, including 100% relative humidity, condensation, corrosive substances, and gases.

Commercial Benefits:

The SIPLUS extreme devices are the ideal choice for extremely challenging tasks in harsh environments. With the conformal coating, the SIPLUS HMI KP700 Comfort ensures reliable operation and longevity, even in the most demanding conditions.

    • Model: 6AV2124-1GC01-0AX0
    • Operating Temperature: 0...+50 °C
    • Conformal Coating: Yes
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for EtherNet/IPtrue
Supporting protocol for INTERBUSfalse
Radio standard Bluetoothfalse
Process default value (input) possibletrue
Supporting protocol for other bus systemstrue
Number of colours of the display16777216
Number of HW-interfaces other0
Number of HW-interfaces RS-4851
With message system (incl. buffer and confirmation)true
Degree of protection (IP), front sideIP65
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces industrial Ethernet2
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFIBUStrue
Supporting protocol for LONfalse
Radio standard GPRSfalse
Supporting protocol for PROFINET IOtrue
Width of the front308 mm
Rail mounting possiblefalse
Number of interfaces PROFINET2
Supporting protocol for PROFINET CBAfalse
With recipestrue
Supporting protocol for SUCONETfalse
Process value representation (output) possibletrue
Number of function buttons, programmable24
Radio standard GSMfalse
Number of HW-interfaces RS-4221
Supporting protocol for PROFIsafefalse
Operating temperature50 °C
Number of system buttons28
With numeric keyboardtrue
Radio standard UMTSfalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
With alpha numeric keyboardtrue
Supporting protocol for SERCOSfalse
Number of HW-interfaces USB2
Screen diagonal7 inch
With SW interfacesfalse
Supply voltage DC28.8 V
Colour displaytrue
Supporting protocol for TCP/IPtrue
Supporting protocol for Foundation Fieldbusfalse
Height of the front204 mm
Number of buttons with LED24
Operating temperature0 °C
Supporting protocol for DeviceNet Safetyfalse
Number of pixels, horizontal800
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces serial TTY0
With printer outputtrue
Additional software components, loadabletrue
Type of displayTFT
Number of grey-scales/blue-scales of display0
Supporting protocol for DeviceNetfalse
Supporting protocol for KNXfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Number of password levels50
Built-in depth63 mm
Supply voltage DC19.2 V
With message indicationtrue
Useful project memory/user memory12000 kByte
Radio standard WLAN 802.11false
Number of pixels, vertical480
Wall mounting/direct mountingfalse
Number of HW-interfaces RS-2320
Number of online languages32
Number of HW-interfaces wireless0
IO link masterfalse
Number of HW-interfaces parallel0
Supporting protocol for CANfalse
