Material ID: 6AG1124-1JC01-4AX0

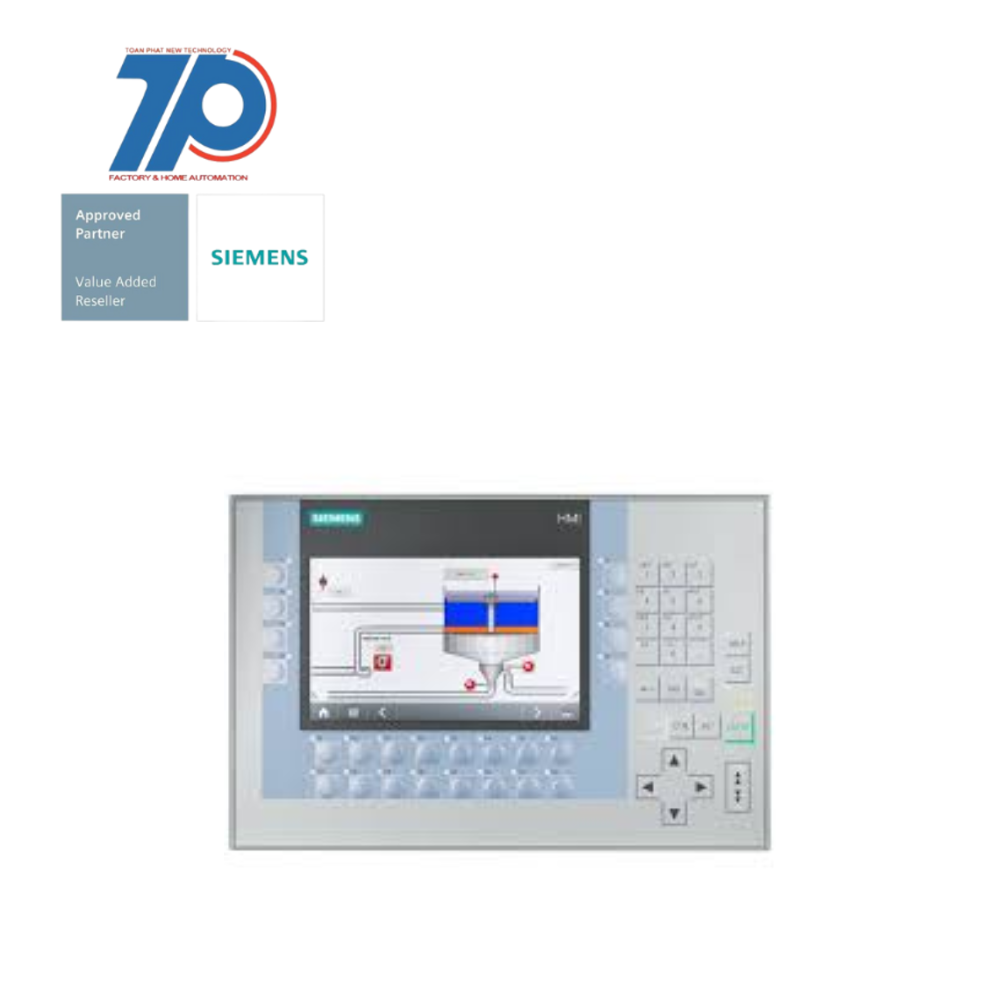

SIPLUS HMI KP900 Comfort

SIPLUS HMI KP900 Comfort is a high-performance visualization device designed for machine-level tasks. It is based on the 6AV2124-1JC01-0AX0 model and features a conformal coating.

Technical Features:

Commercial Benefits:

The SIPLUS HMI KP900 Comfort offers the following commercial benefits:

    • Operating Temperature: 0...+50 °C
    • Conformal Coating: The device is protected by a conformal coating that safeguards it from harsh ambient conditions.
    • Reliability: The conformal coating ensures the device's durability even in challenging conditions such as 100% relative humidity, condensation, corrosive substances, and gases.
    • Enhanced Performance: The device is designed to handle extremely challenging tasks.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Operating temperature50 °C
Number of system buttons28
Suitable for safety functionsfalse
Number of interfaces PROFINET2
Number of HW-interfaces industrial Ethernet2
IO link masterfalse
Supporting protocol for SafetyBUS pfalse
Screen diagonal9 inch
Supporting protocol for DeviceNet Safetyfalse
Built-in depth63 mm
Radio standard UMTSfalse
With numeric keyboardtrue
Supporting protocol for other bus systemstrue
Supporting protocol for INTERBUSfalse
Number of HW-interfaces RS-4851
With message system (incl. buffer and confirmation)true
Useful project memory/user memory12000 kByte
Radio standard Bluetoothfalse
Radio standard GSMfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for PROFIsafefalse
Number of function buttons, programmable26
Supporting protocol for EtherNet/IPtrue
Number of buttons with LED26
Supporting protocol for PROFINET IOtrue
Rail mounting possiblefalse
Supporting protocol for Modbustrue
Supporting protocol for ASIfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supply voltage DC19.2 V
Supply voltage DC28.8 V
Colour displaytrue
Number of colours of the display16777216
Supporting protocol for PROFIBUStrue
Number of HW-interfaces other0
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces serial TTY0
With printer outputtrue
Supporting protocol for TCP/IPtrue
With recipestrue
Supporting protocol for DeviceNetfalse
Additional software components, loadabletrue
Supporting protocol for SUCONETfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Width of the front362 mm
Supporting protocol for SERCOSfalse
With alpha numeric keyboardtrue
Number of grey-scales/blue-scales of display0
Number of HW-interfaces RS-2320
Number of online languages32
Supporting protocol for KNXfalse
With SW interfacesfalse
Type of displayTFT
Number of HW-interfaces wireless0
Process value representation (output) possibletrue
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces USB2
Supporting protocol for CANfalse
Degree of protection (IP), front sideIP65
Radio standard GPRSfalse
Number of pixels, vertical480
Number of HW-interfaces RS-4221
With message indicationtrue
Operating temperature0 °C
Number of HW-interfaces parallel0
Height of the front230 mm
Number of pixels, horizontal800
Radio standard WLAN 802.11false
Process default value (input) possibletrue
Wall mounting/direct mountingfalse
Supporting protocol for LONfalse
Number of password levels50
