Material ID: 6AG1124-1MC01-4AX0

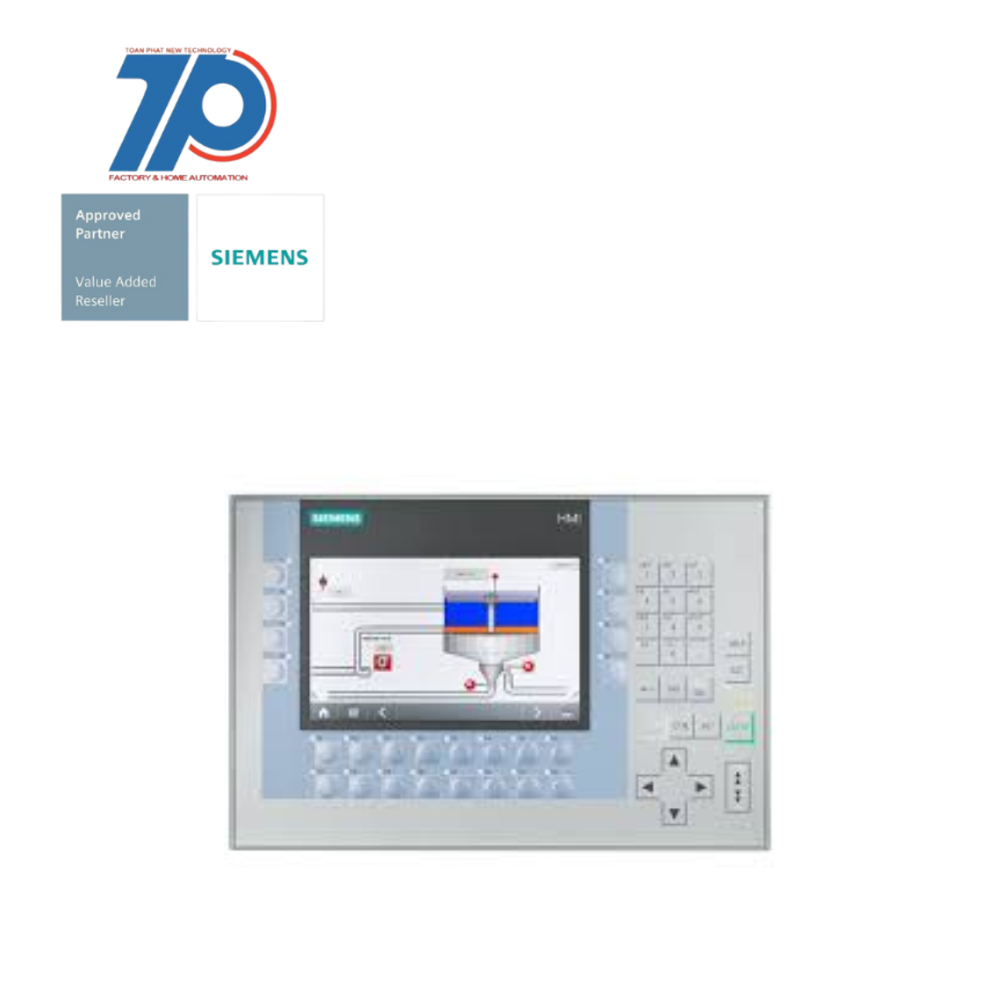

SIPLUS HMI KP1200 Comfort
Le SIPLUS HMI KP1200 Comfort est basé sur le modèle 6AV2124-1MC01-0AX0 et est doté d'un revêtement de protection. Il peut fonctionner dans une plage de température de 0 à +50 °C.
Caractéristiques techniques :
Avantages commerciaux :
- Panneau de commande conçu pour des tâches de visualisation haute performance au niveau de la machine.
- Revêtement de protection qui assure une protection contre l'humidité relative de 100%, la condensation, les substances corrosives et les gaz.
- Convient aux environnements difficiles grâce à sa résistance aux conditions ambiantes extrêmes.
- Permet une visualisation efficace des tâches critiques.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Screen diagonal | 12.1 inch |
| Supporting protocol for CAN | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for PROFINET CBA | false |
| Number of grey-scales/blue-scales of display | 0 |
| Colour display | true |
| Supporting protocol for LON | false |
| Degree of protection (IP), front side | IP65 |
| Supporting protocol for TCP/IP | true |
| With SW interfaces | false |
| Supporting protocol for SERCOS | false |
| Number of HW-interfaces RS-232 | 0 |
| Number of online languages | 32 |
| Supporting protocol for KNX | false |
| Supporting protocol for INTERBUS | false |
| Number of HW-interfaces parallel | 0 |
| Width of the front | 454 mm |
| Number of HW-interfaces industrial Ethernet | 2 |
| Supporting protocol for Foundation Fieldbus | false |
| Number of pixels, horizontal | 1280 |
| Number of HW-interfaces USB | 2 |
| Built-in depth | 65 mm |
| Wall mounting/direct mounting | false |
| Suitable for safety functions | false |
| Operating temperature | 0 °C |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for SUCONET | false |
| Useful project memory/user memory | 12000 kByte |
| With alpha numeric keyboard | true |
| Number of HW-interfaces wireless | 0 |
| Number of function buttons, programmable | 34 |
| Number of HW-interfaces RS-422 | 1 |
| Number of interfaces PROFINET | 2 |
| Number of password levels | 50 |
| Supporting protocol for other bus systems | true |
| Type of display | TFT |
| Number of colours of the display | 16777216 |
| Supporting protocol for PROFIBUS | true |
| Number of HW-interfaces other | 0 |
| Process value representation (output) possible | true |
| Number of pixels, vertical | 800 |
| Radio standard GPRS | false |
| With message indication | true |
| Supporting protocol for Data-Highway | false |
| IO link master | false |
| Number of buttons with LED | 34 |
| Supporting protocol for PROFIsafe | false |
| With recipes | true |
| Number of HW-interfaces RS-485 | 1 |
| With message system (incl. buffer and confirmation) | true |
| Supporting protocol for DeviceNet | false |
| Additional software components, loadable | true |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supply voltage DC | 19.2 V |
| Number of system buttons | 28 |
| Operating temperature | 50 °C |
| Radio standard WLAN 802.11 | false |
| Process default value (input) possible | true |
| Supporting protocol for EtherNet/IP | true |
| Radio standard Bluetooth | false |
| Supporting protocol for PROFINET IO | true |
| Rail mounting possible | false |
| Radio standard UMTS | false |
| With printer output | true |
| Number of HW-interfaces serial TTY | 0 |
| With numeric keyboard | true |
| Height of the front | 289 mm |
| Supporting protocol for ASI | false |
| Supporting protocol for Modbus | true |
| Radio standard GSM | false |
