Material ID: 6AG1124-1QC02-4AX1

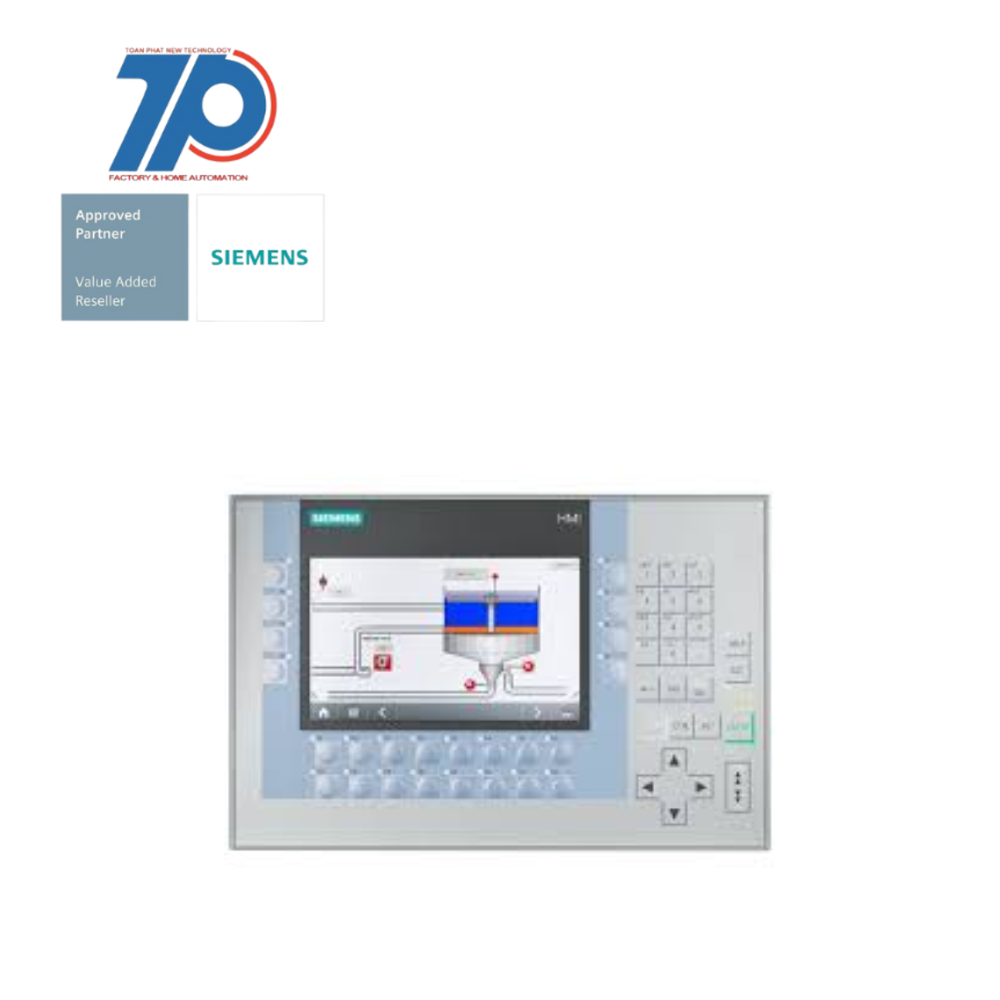

SIPLUS HMI KP1500 Comfort

The SIPLUS HMI KP1500 Comfort, based on 6AV2124-1QC02-0AX1, is a high-performance visualization device designed for machine-level tasks. It features a 15" widescreen TFT display with 16 million colors, providing a vibrant and detailed visual experience.

With its conformal coating, this device is capable of operating in harsh ambient conditions. The coating protects the inside of the Panels from 100% relative humidity, condensation, corrosive substances, and gases, ensuring reliable performance even in challenging environments.

Technical Features:

Commercial Benefits:

The SIPLUS HMI KP1500 Comfort offers several commercial benefits, including:

    • PROFINET interface
    • MPI/PROFIBUS DP interface
    • 24 MB configuration memory
    • WEC 2013
    • Configurable as of WinCC Comfort V14 SP1 with HSP
    • High-performance visualization for machine-level tasks
    • Reliable operation in harsh ambient conditions
    • Enhanced durability with conformal coating
    • Easy configuration with WinCC Comfort V14 SP1 and HSP
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
With SW interfacesfalse
Suitable for safety functionsfalse
Useful project memory/user memory24000 kByte
Number of HW-interfaces RS-2320
Supporting protocol for SUCONETfalse
Number of pixels, vertical800
Process value representation (output) possibletrue
Supporting protocol for PROFINET CBAfalse
Built-in depth75 mm
Supply voltage DC19.2 V
Number of pixels, horizontal1280
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for PROFIBUStrue
IO link masterfalse
Rail mounting possiblefalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Degree of protection (IP), front sideIP65
Number of password levels50
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Colour displaytrue
Number of online languages32
Supporting protocol for LONfalse
Operating temperature0 °C
Number of HW-interfaces other0
Supporting protocol for Foundation Fieldbusfalse
Number of grey-scales/blue-scales of display0
Supporting protocol for other bus systemstrue
Supporting protocol for DeviceNetfalse
Supporting protocol for CANfalse
Supporting protocol for TCP/IPtrue
Process default value (input) possibletrue
Number of HW-interfaces industrial Ethernet2
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Supporting protocol for KNXfalse
With recipestrue
Number of HW-interfaces USB2
With numeric keyboardtrue
Wall mounting/direct mountingfalse
With printer outputtrue
Number of HW-interfaces serial TTY0
Radio standard GPRSfalse
Number of function buttons, programmable36
Number of HW-interfaces parallel0
Radio standard GSMfalse
Number of HW-interfaces RS-4220
Type of displayTFT
With message indicationtrue
Supporting protocol for EtherNet/IPtrue
Number of interfaces PROFINET2
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Operating temperature50 °C
Number of system buttons28
With alpha numeric keyboardtrue
Radio standard WLAN 802.11false
Height of the front310 mm
Screen diagonal15.4 inch
Number of colours of the display16777216
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFINET IOtrue
Width of the front483 mm
Additional software components, loadabletrue
Number of buttons with LED36
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard Bluetoothfalse
With message system (incl. buffer and confirmation)true
Number of HW-interfaces RS-4851
