Material ID: 6AG1131-4BF00-7AA0

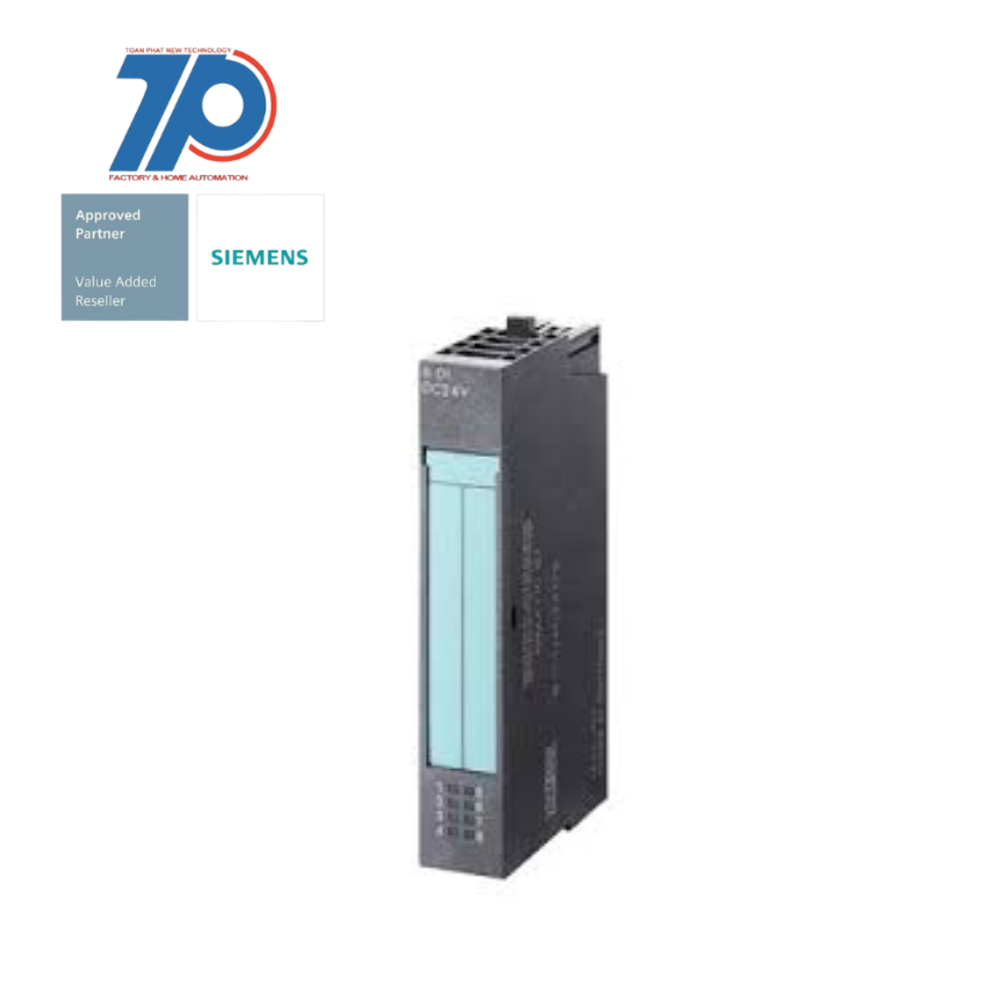

SIPLUS ET 200S EM 8 DI

The SIPLUS ET 200S EM 8 DI, based on 6ES7131-4BF00-0AA0, is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It offers a wide range of modules with various characteristics to improve functionality and price scalability.

Technical Features:

Commercial Benefits:

The SIPLUS ET 200S EM 8 DI offers the following commercial benefits:

With the SIPLUS ET 200S EM 8 DI, you can trust that your digital signals will be reliably recorded, regardless of the ambient conditions.

    • Operating Temperature: -25°C to +70°C
    • Conformal Coating: Provides protection against biologically, chemically, and physically active substances, condensation, frost, and corrosive gases
    • Module Compatibility: Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandability: Supports up to 64 I/O modules in any combination
    • Module Types: Standard functions (ST), extended range of functions and diagnostics (HF High Feature/HS High Speed)
    • Hot Swapping: Allows for swapping modules and terminal boxes during operation, increasing machine availability and productivity
    • Easy Application: The system is easy to use and operate
    • Reliable Signal Recording: Ensures reliable recording of digital signals
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces industrial Ethernet0
Number of digital outputs0
Supporting protocol for Foundation Fieldbusfalse
Type of voltage (input voltage)DC
Number of HW-interfaces RS-4220
Rack-assembly possiblefalse
Front built-in possiblefalse
Number of HW-interfaces RS-2320
Type of digital outputNone
Number of HW-interfaces parallel0
Supporting protocol for Modbusfalse
Input current at signal 15 mA
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Supporting protocol for SERCOSfalse
Supporting protocol for KNXfalse
Supply voltage DC28.8 V
Supporting protocol for LONfalse
Number of HW-interfaces wireless0
Supporting protocol for CANfalse
IO link masterfalse
Number of HW-interfaces RS-4850
Radio standard Bluetoothfalse
Suitable for safety functionsfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for DeviceNet Safetyfalse
Fieldbus connection over separate bus coupler possibletrue
System accessorytrue
Supporting protocol for PROFINET IOfalse
Permitted voltage at input-30 V
Appendant operation agent (Ex ib)false
Depth52 mm
Supporting protocol for INTERBUSfalse
Number of digital inputs8
Radio standard GPRSfalse
With optical interfacefalse
Supporting protocol for PROFIBUSfalse
Supply voltage DC20.4 V
Time delay at signal change4.5 ms
Radio standard GSMfalse
Permitted voltage at input30 V
Rail mounting possibletrue
Supporting protocol for PROFINET CBAfalse
Supporting protocol for Data-Highwayfalse
Digital inputs configurabletrue
Number of HW-interfaces serial TTY0
Number of interfaces PROFINET0
Radio standard WLAN 802.11false
Height81 mm
Wall mounting/direct mountingfalse
Appendant operation agent (Ex ia)false
Width15 mm
Supporting protocol for SafetyBUS pfalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces USB0
Time delay at signal change2 ms
Radio standard UMTSfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for ASIfalse
Degree of protection (IP)IP20
Number of HW-interfaces other0
Supporting protocol for other bus systemsfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for EtherNet/IPfalse
