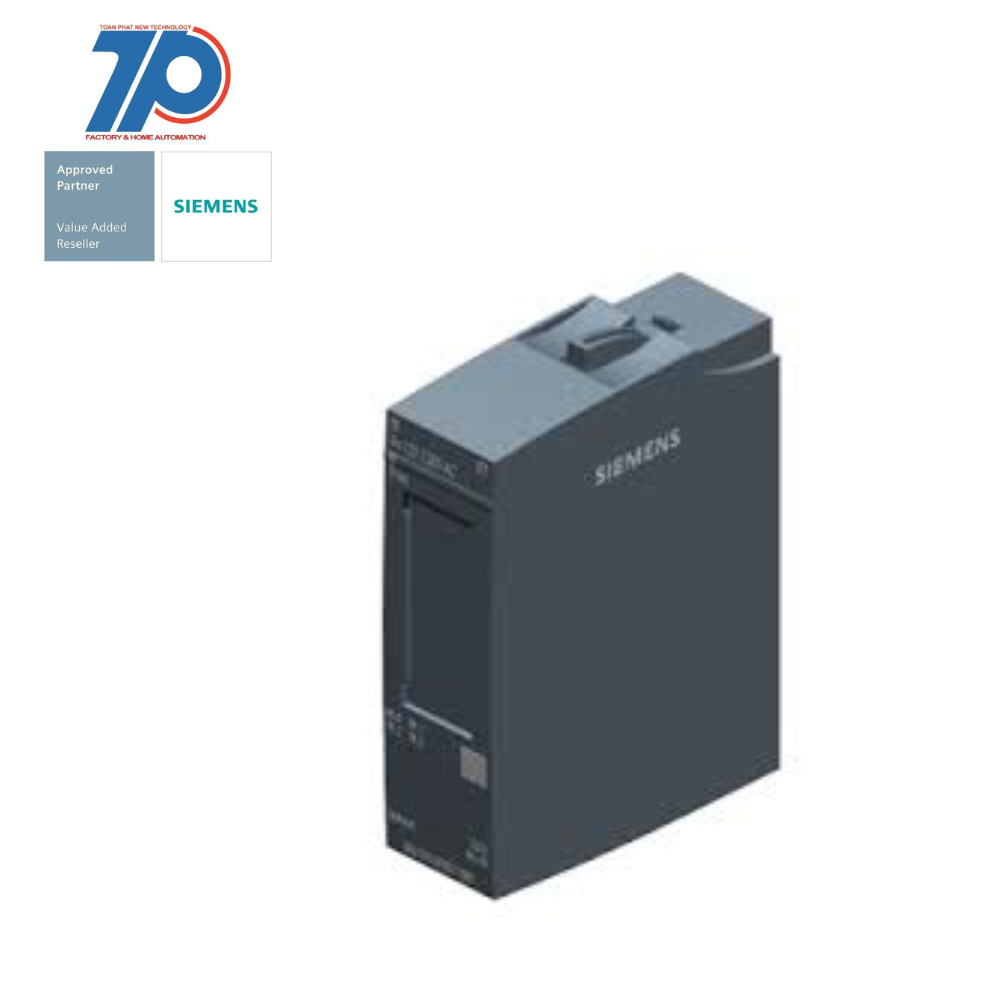

Material ID: 6AG1131-6FD01-7BB1
- SIPLUS ET 200SP DI 4x120..230 V AC ST based on 6ES7131-6FD01-0BB1 with conformal coating, -40…+70 °C, digital input module, suitable for BU type B1, color code CC41, module diagnostics
- Approved for degree of protection IP20 and for installation in a compact control box
- Maximum flexibility with multi hot swapping feature for quick and simple module replacement
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system based on equipment labeling plates and color-coded connector assignments for simplified installation and service
- Future-proof investment with integration of innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance
- Digital input modules protected against extreme ambient conditions with 100% conformal coating
- Reliable recording of digital signals regardless of the conditions
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Permitted voltage at input | 0 V |
| Supporting protocol for SafetyBUS p | false |
| IO link master | false |
| Supporting protocol for ASI | false |
| With optical interface | false |
| Supporting protocol for DeviceNet Safety | false |
| Rail mounting possible | true |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for EtherNet/IP | false |
| Permitted voltage at input | 264 V |
| Wall mounting/direct mounting | false |
| Radio standard GPRS | false |
| Supporting protocol for LON | false |
| Time delay at signal change | 1.5 ms |
| Radio standard Bluetooth | false |
| Supporting protocol for Data-Highway | false |
| Suitable for safety functions | false |
| Supporting protocol for TCP/IP | false |
| System accessory | true |
| Input current at signal 1 | 10.8 mA |
| Supporting protocol for PROFIBUS | false |
| Appendant operation agent (Ex ib) | false |
| Width | 20 mm |
| Supporting protocol for SUCONET | false |
| Radio standard UMTS | false |
| Height | 73 mm |
| Fieldbus connection over separate bus coupler possible | true |
| Voltage type (supply voltage) | AC |
| Supply voltage AC 50 Hz | 187 V |
| Number of digital inputs | 4 |
| Supply voltage AC 60 Hz | 264 V |
| Supply voltage AC 60 Hz | 187 V |
| Supply voltage AC 50 Hz | 264 V |
| Supporting protocol for AS-Interface Safety at Work | false |
| Time delay at signal change | 8 ms |
| Depth | 58 mm |
| Supporting protocol for PROFINET IO | false |
| Front built-in possible | false |
| Type of digital output | None |
| Radio standard WLAN 802.11 | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for other bus systems | false |
| Radio standard GSM | false |
| Appendant operation agent (Ex ia) | false |
| Digital inputs configurable | true |
| Supporting protocol for SERCOS | false |
| Rack-assembly possible | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for KNX | false |
| Supporting protocol for PROFIsafe | false |
