Material ID: 6AG1132-4BD02-7AA0

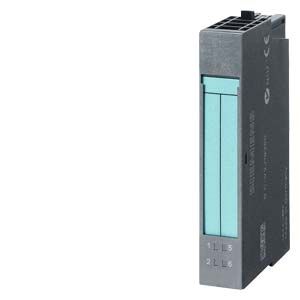

SIPLUS ET 200S EM 4DQ

The SIPLUS ET 200S EM 4DQ is a standard electronic module based on 6ES7132-4BD02-0AA0 with conformal coating. It operates in a temperature range of -25°C to +70°C. The module has a width of 15 mm and requires a power supply of 24 V DC with a current rating of 0.5 A. Each packing unit contains 5 units of the module.

Technical Features

Commercial Benefits

With the SIPLUS ET 200S EM 4DQ, you can enhance the performance and reliability of your machine while ensuring ease of application and protection against extreme ambient conditions.

    • Modularly scalable, distributed I/O system
    • Specially designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules with different characteristics
    • Modules available with standard functions (ST), extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with module and terminal box swapping during operation
    • Increased availability and productivity with "hot swapping"
    • Digital output modules protected against extreme ambient conditions
    • Improved scalability in terms of functionality and price
    • Reliable output of digital signals regardless of the conditions
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces serial TTY0
Supporting protocol for AS-Interface Safety at Workfalse
Short-circuit protection, outputs availabletrue
Supply voltage DC28.8 V
Digital outputs configurabletrue
Radio standard GPRSfalse
Number of digital inputs0
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for SERCOSfalse
Time delay at signal change0.09 ms
Permitted voltage at output17.4 V
Number of HW-interfaces RS-4850
Appendant operation agent (Ex ib)false
Number of HW-interfaces parallel0
Supporting protocol for TCP/IPfalse
Number of HW-interfaces RS-4220
Number of interfaces PROFINET0
Suitable for safety functionsfalse
Radio standard GSMfalse
Height81 mm
Wall mounting/direct mountingfalse
Radio standard WLAN 802.11false
IO link masterfalse
Supporting protocol for Modbusfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Fieldbus connection over separate bus coupler possibletrue
Type of output voltageDC
Supporting protocol for PROFIBUSfalse
Supply voltage DC20.4 V
Time delay at signal change0.045 ms
With optical interfacefalse
Supporting protocol for ASIfalse
Rack-assembly possiblefalse
Appendant operation agent (Ex ia)false
Number of HW-interfaces USB0
Supporting protocol for Data-Highwayfalse
Radio standard UMTSfalse
Number of digital outputs4
Supporting protocol for LONfalse
Supporting protocol for PROFIsafefalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Output current0.5 A
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFINET CBAfalse
Radio standard Bluetoothfalse
Supporting protocol for SUCONETfalse
Width15 mm
Supporting protocol for CANfalse
Supporting protocol for Foundation Fieldbusfalse
Permitted voltage at output25.8 V
Front built-in possiblefalse
Degree of protection (IP)IP20
Rail mounting possibletrue
System accessorytrue
Supporting protocol for DeviceNetfalse
Depth52 mm
Supporting protocol for PROFINET IOfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for other bus systemsfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for KNXfalse
Type of digital outputTransistor
Number of HW-interfaces other0
Number of HW-interfaces wireless0
