Material ID: 6AG1132-4BD32-2AA0

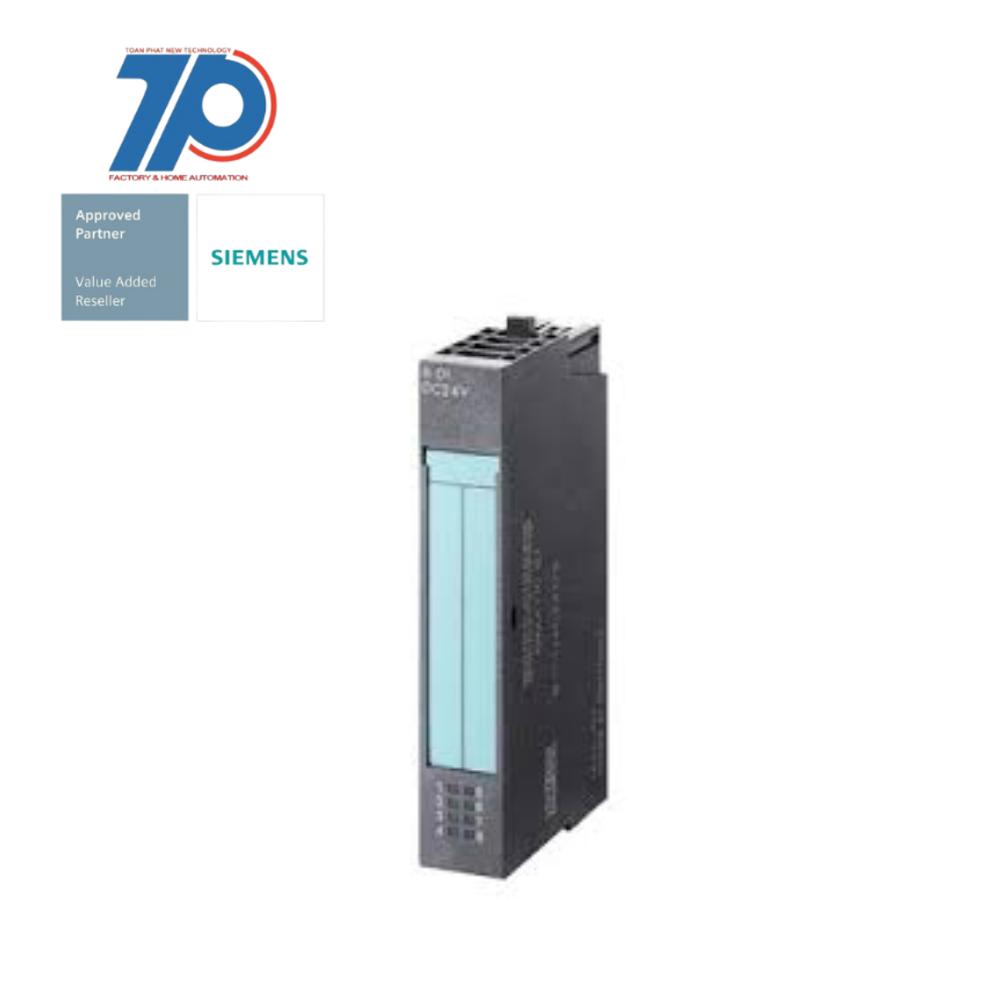

SIPLUS ET 200S EM 4DQ DC 24V/2A

SIPLUS ET 200S EM 4DQ DC 24V/2A is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It is based on the 6ES7132-4BD32-0AA0 module with conformal coating, allowing it to withstand extreme ambient conditions.

Technical Features:

Commercial Benefits:

The SIPLUS ET 200S EM 4DQ DC 24V/2A system offers the following commercial benefits:

With SIPLUS ET 200S EM 4DQ DC 24V/2A, you can ensure reliable and efficient operation of your machine in challenging environments.

    • Operating Temperature: -25…+60 °C
    • Packing Unit: 5 units per packing unit
    • Expansion Capability: Up to 64 I/O modules
    • Module Compatibility: Modules can be inserted in any combination
    • Module Variations: Standard functions (ST), extended functions and diagnostics (HF High Feature/ HS High Speed)
    • Hot Swapping: Capability to swap modules and terminal boxes during operation
    • Improved Scalability: Wide variety of module characteristics for improved functionality and price scalability
    • Reliable Output: Digital output modules provide reliable signal output regardless of the conditions
    • Increased Availability and Productivity: "Hot swapping" capability increases machine availability and productivity
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Appendant operation agent (Ex ia)false
System accessorytrue
Depth52 mm
Supporting protocol for PROFINET IOfalse
Supply voltage DC28.8 V
Supporting protocol for SafetyBUS pfalse
Wall mounting/direct mountingfalse
Supporting protocol for SERCOSfalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces RS-4220
Supporting protocol for SUCONETfalse
With optical interfacefalse
Supporting protocol for LONfalse
Type of digital outputTransistor
Supporting protocol for EtherNet/IPfalse
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4850
Rail mounting possibletrue
Time delay at signal change0.05 ms
Number of HW-interfaces USB0
Supporting protocol for CANfalse
Radio standard WLAN 802.11false
Supporting protocol for INTERBUSfalse
Supporting protocol for KNXfalse
IO link masterfalse
Digital outputs configurabletrue
Front built-in possiblefalse
Radio standard GPRSfalse
Type of output voltageDC
Permitted voltage at output25.8 V
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard GSMfalse
Number of HW-interfaces parallel0
Supporting protocol for other bus systemsfalse
Permitted voltage at output17.4 V
Number of HW-interfaces wireless0
Supporting protocol for Modbusfalse
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for PROFIBUSfalse
Output current2 A
Rack-assembly possiblefalse
Number of HW-interfaces other0
Radio standard UMTSfalse
Supporting protocol for PROFIsafefalse
Degree of protection (IP)IP20
Number of digital outputs4
Width15 mm
Number of digital inputs0
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces serial TTY0
Number of interfaces PROFINET0
Appendant operation agent (Ex ib)false
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNet Safetyfalse
Suitable for safety functionsfalse
Supporting protocol for TCP/IPfalse
Height81 mm
Short-circuit protection, outputs availabletrue
Supply voltage DC20.4 V
Time delay at signal change0.12 ms
Supporting protocol for ASIfalse
