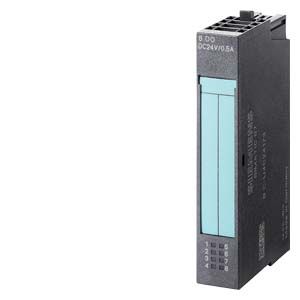

Material ID: 6AG1132-4BF00-7AA0SIPLUS ET 200S EM 8 DQ

SIPLUS ET 200S EM 8 DQ

Technical Features:

Product Description:

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

Commercial Benefits:

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping". Just like the CPU, the digital output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your digital signals are reliably output.

    • Based on 6ES7132-4BF00-0AA0
    • Conformal coating for -25…+70 °C
    • Electronic module for ET 200S
    • 8 DQ 24 V DC/0.5 A
    • 15 mm width
    • 1 unit per packing unit
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Supporting protocol for EtherNet/IPfalse
Appendant operation agent (Ex ia)false
Wall mounting/direct mountingfalse
Supporting protocol for CANfalse
Time delay at signal change0.6 ms
Front built-in possiblefalse
Number of HW-interfaces other0
Appendant operation agent (Ex ib)false
Number of HW-interfaces serial TTY0
Supporting protocol for LONfalse
Number of HW-interfaces wireless0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SERCOSfalse
Supporting protocol for PROFIBUSfalse
Digital outputs configurabletrue
Type of output voltageDC
Rail mounting possibletrue
Height81 mm
Number of HW-interfaces RS-4850
Supporting protocol for INTERBUSfalse
System accessorytrue
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFINET CBAfalse
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Number of HW-interfaces RS-2320
Supporting protocol for KNXfalse
Permitted voltage at output25.8 V
Supply voltage DC20.4 V
Type of digital outputTransistor
With optical interfacefalse
Depth52 mm
Number of HW-interfaces parallel0
Supply voltage DC28.8 V
IO link masterfalse
Degree of protection (IP)IP20
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Width15 mm
Number of interfaces PROFINET0
Supporting protocol for PROFINET IOfalse
Radio standard UMTSfalse
Number of HW-interfaces USB0
Supporting protocol for PROFIsafefalse
Number of digital inputs0
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for other bus systemsfalse
Supporting protocol for Data-Highwayfalse
Suitable for safety functionsfalse
Output current0.5 A
Number of digital outputs8
Supporting protocol for AS-Interface Safety at Workfalse
Permitted voltage at output17.4 V
Time delay at signal change0.3 ms
Radio standard Bluetoothfalse
Short-circuit protection, outputs availabletrue
Radio standard WLAN 802.11false
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for ASIfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for Modbusfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-4220
Rack-assembly possiblefalse
Radio standard GSMfalse
