Material ID: 6AG1132-4BF50-7AA0

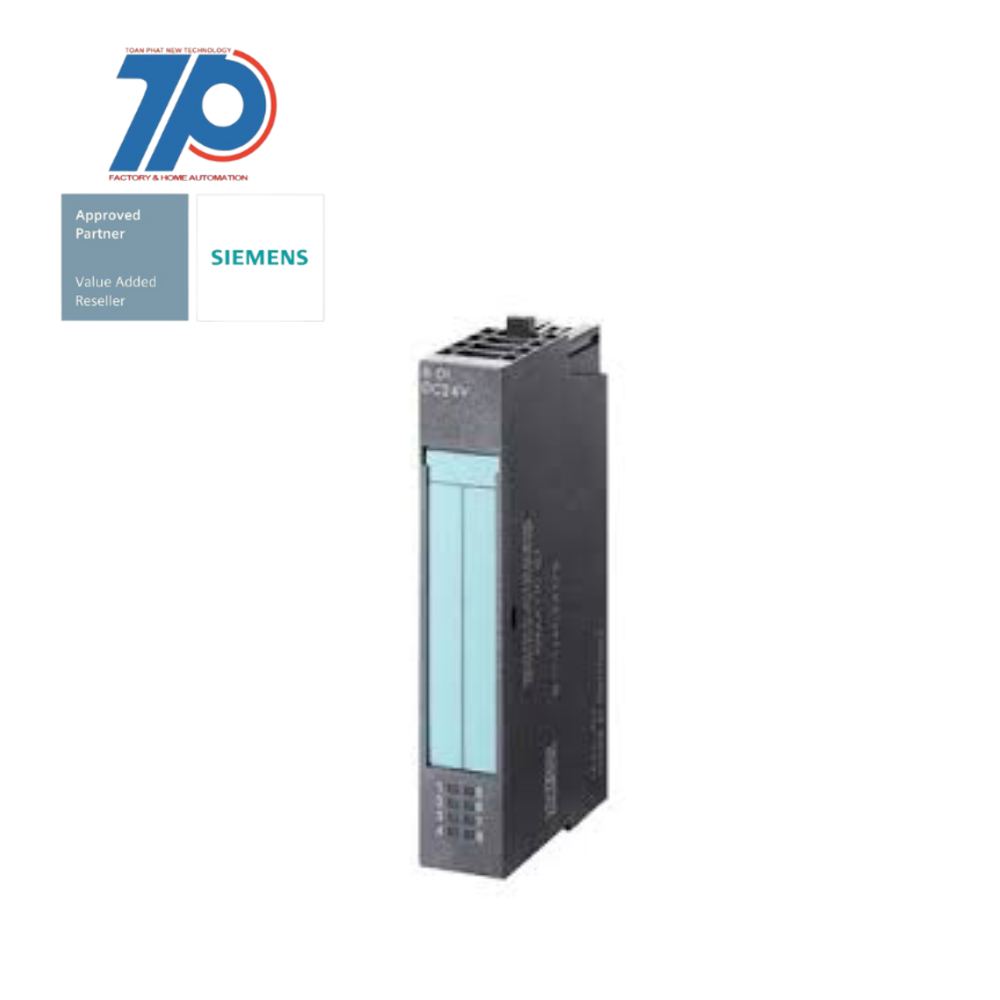

SIPLUS ET 200S EM 8 DQ DC 24V/ 0.5

The SIPLUS ET 200S EM 8 DQ DC 24V/ 0.5 is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It is based on the 6ES7132-4BF50-0AA0 module with conformal coating, allowing it to operate in temperatures ranging from -25°C to +70°C.

Technical Features:

Commercial Benefits:

The SIPLUS ET 200S EM 8 DQ DC 24V/ 0.5 offers the following commercial benefits:

    • Modularly scalable, distributed I/O system
    • Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with module and terminal box swapping during operation
    • Digital output modules protected against extreme ambient conditions
    • 100% conformal coating for protection against biologically, chemically, and physically active substances, condensation, frost, and corrosive gases
    • Improved scalability in terms of functionality and price
    • Increased availability and productivity of the machine through "hot swapping"
    • Reliable output of digital signals regardless of the conditions
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supply voltage DC20.4 V
Supporting protocol for DeviceNet Safetyfalse
Number of digital inputs0
Number of interfaces PROFINET0
Supporting protocol for EtherNet/IPfalse
Time delay at signal change0.6 ms
Supporting protocol for LONfalse
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces other0
Radio standard UMTSfalse
Supporting protocol for PROFINET IOfalse
Degree of protection (IP)IP20
Supporting protocol for Data-Highwayfalse
Rail mounting possibletrue
Time delay at signal change0.3 ms
Permitted voltage at output17.4 V
Supporting protocol for PROFINET CBAfalse
Supporting protocol for AS-Interface Safety at Workfalse
Type of digital outputTransistor
Height81 mm
Supporting protocol for TCP/IPfalse
Wall mounting/direct mountingfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Supporting protocol for SUCONETfalse
Supporting protocol for KNXfalse
Type of output voltageDC
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Permitted voltage at output25.8 V
Radio standard GPRSfalse
Appendant operation agent (Ex ib)false
Number of HW-interfaces serial TTY0
Width15 mm
Depth52 mm
Supporting protocol for Foundation Fieldbusfalse
System accessorytrue
Supporting protocol for DeviceNetfalse
Supporting protocol for CANfalse
Supporting protocol for ASIfalse
Number of HW-interfaces USB0
Number of HW-interfaces RS-4220
Supporting protocol for other bus systemsfalse
Radio standard Bluetoothfalse
Output current0.5 A
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Modbusfalse
Digital outputs configurabletrue
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Number of HW-interfaces RS-4850
Appendant operation agent (Ex ia)false
With optical interfacefalse
Supporting protocol for PROFIsafefalse
Number of digital outputs8
IO link masterfalse
Number of HW-interfaces parallel0
Radio standard GSMfalse
Fieldbus connection over separate bus coupler possibletrue
Rack-assembly possiblefalse
Front built-in possiblefalse
Short-circuit protection, outputs availabletrue
Radio standard WLAN 802.11false
