Material ID: 6AG1132-4HB13-2AB0

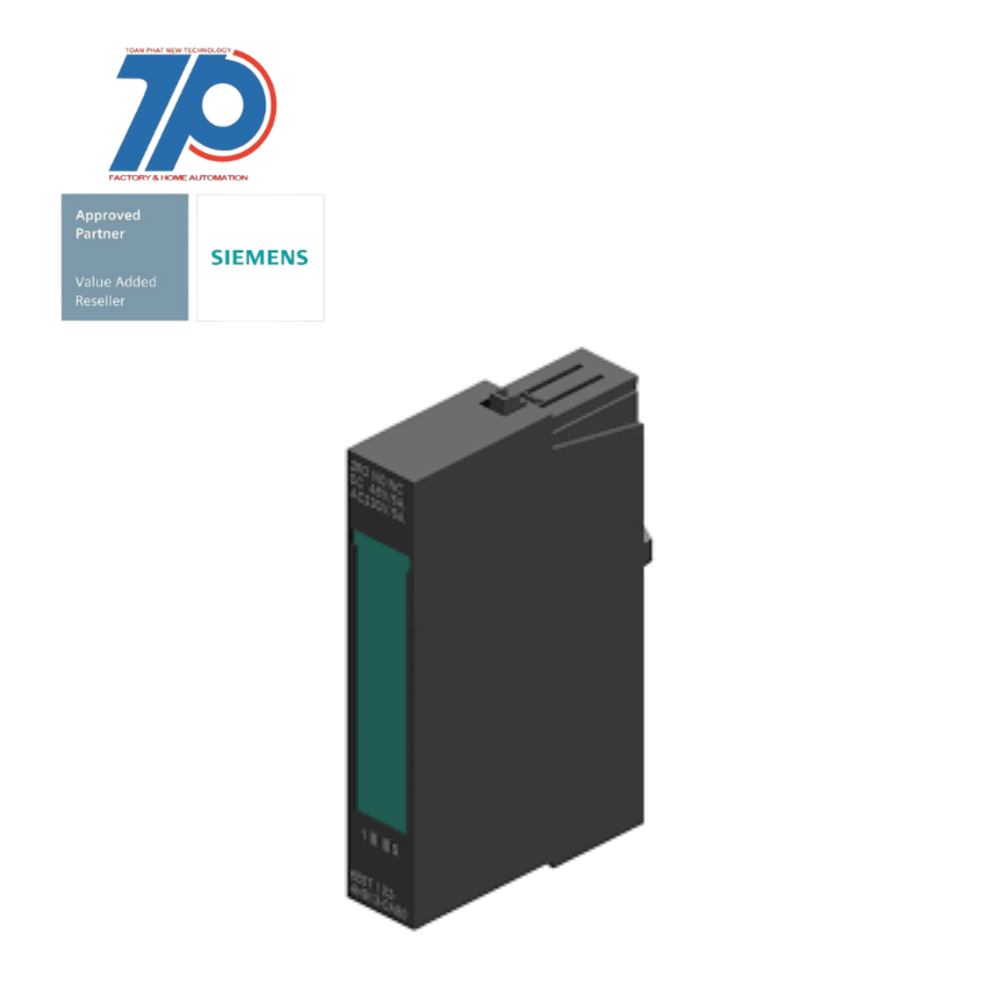

SIPLUS ET 200S EM 2DQ RLY 5 A

Based on 6ES7132-4HB13-0AB0 with conformal coating, -40…+60 °C, 24 V-48 V DC/5 A, 24 V-230 V AC/5 A

Technical Features:

Commercial Benefits:

Substitute value output: 5 units per packing unit

    • Modularly scalable, distributed I/O system
    • Specially designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules, in any combination
    • Comprehensive range of modules
    • Modules available with standard functions (ST), extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with capability of swapping modules and terminal boxes during operation
    • Digital output modules protected against extreme ambient conditions
    • 100% conformal coating for protection against biologically, chemically and physically active substances, condensation, frost, and corrosive gases
    • Improved scalability in regard to functionality and price
    • Increased availability and productivity of the machine due to "hot swapping"
    • Reliable output of digital signals regardless of the conditions
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Degree of protection (IP)IP20
Wall mounting/direct mountingfalse
Front built-in possiblefalse
Supporting protocol for EtherNet/IPfalse
Radio standard WLAN 802.11false
Supporting protocol for Modbusfalse
Number of HW-interfaces RS-2320
Supporting protocol for DeviceNetfalse
Rail mounting possibletrue
With optical interfacefalse
Supporting protocol for LONfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces USB0
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Fieldbus connection over separate bus coupler possibletrue
Number of digital inputs0
Radio standard UMTSfalse
Supporting protocol for SUCONETfalse
IO link masterfalse
Supply voltage DC28.8 V
Appendant operation agent (Ex ia)false
Width15 mm
Number of interfaces PROFINET0
Height81 mm
Supporting protocol for PROFINET CBAfalse
Supporting protocol for CANfalse
Supporting protocol for ASIfalse
Supply voltage DC20.4 V
Supporting protocol for INTERBUSfalse
Number of HW-interfaces other0
Number of HW-interfaces industrial Ethernet0
Digital outputs configurabletrue
Supporting protocol for SERCOSfalse
Supporting protocol for other bus systemsfalse
Number of HW-interfaces RS-4850
Number of digital outputs2
Number of HW-interfaces wireless0
Supporting protocol for KNXfalse
Number of HW-interfaces parallel0
Number of HW-interfaces serial TTY0
Depth52 mm
Rack-assembly possiblefalse
Permitted voltage at output264 V
Type of digital outputRelay
Number of HW-interfaces RS-4220
Type of output voltageAC/DC
Supporting protocol for Foundation Fieldbusfalse
Output current5 A
System accessorytrue
Supporting protocol for TCP/IPfalse
Appendant operation agent (Ex ib)false
Suitable for safety functionsfalse
Radio standard GPRSfalse
Short-circuit protection, outputs availablefalse
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Radio standard GSMfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for DeviceNet Safetyfalse
Permitted voltage at output20.4 V
