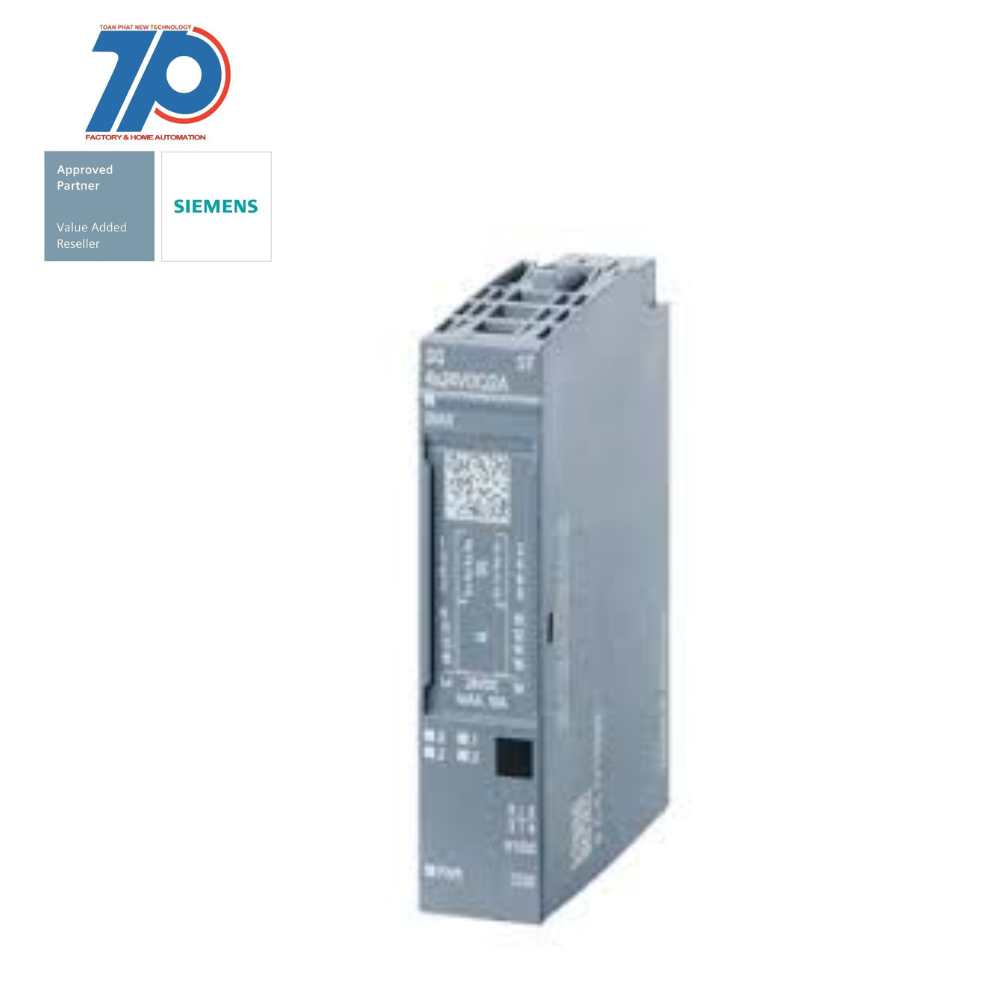

Material ID: 6AG1132-6BD20-7BA0
- SIPLUS ET 200SP DQ 4x24VDC/2A Standard based on 6ES7132-6BD20-0BA0 with conformal coating, -40…+70 °C, digital output module, suitable for BU type A0, color code CC02, channel diagnostics
- With SIMATIC ET 200SP, Siemens offers a multifunctional and distributed I/O system, which can be commissioned very simply due to its space-saving design
- Approved for degree of protection IP20 and for installation in a compact control box
- Maximum flexibility with multi hot swapping feature for quick and simple module replacement
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system based on equipment labeling plates and color-coded connector assignments for simplified installation and service
- Future-proof investment with integration of innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance of ET 200 products
- Digital output modules protected against extreme ambient conditions with 100% conformal coating
- Reliable output of digital signals regardless of the conditions
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for DeviceNet Safety | false |
| IO link master | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Time delay at signal change | 0.05 ms |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Radio standard GSM | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for SERCOS | false |
| Height | 73 mm |
| Supporting protocol for ASI | false |
| Appendant operation agent (Ex ib) | false |
| Permitted voltage at output | 19.2 V |
| Supporting protocol for PROFIBUS | false |
| With optical interface | false |
| Radio standard Bluetooth | false |
| Short-circuit protection, outputs available | true |
| Supporting protocol for Modbus | false |
| Output current | 2 A |
| Width | 15 mm |
| Time delay at signal change | 0.1 ms |
| Front built-in possible | false |
| Supply voltage DC | 28.8 V |
| Rack-assembly possible | false |
| Supporting protocol for SUCONET | false |
| Radio standard UMTS | false |
| Type of output voltage | DC |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for PROFINET CBA | false |
| Rail mounting possible | true |
| Digital outputs configurable | true |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for INTERBUS | false |
| System accessory | true |
| Fieldbus connection over separate bus coupler possible | true |
| Supply voltage DC | 19.2 V |
| Number of digital outputs | 4 |
| Supporting protocol for LON | false |
| Supporting protocol for KNX | false |
| Permitted voltage at output | 28.8 V |
| Radio standard GPRS | false |
| Supporting protocol for CAN | false |
| Supporting protocol for other bus systems | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SafetyBUS p | false |
| Suitable for safety functions | false |
| Wall mounting/direct mounting | false |
| Radio standard WLAN 802.11 | false |
| Degree of protection (IP) | IP20 |
| Depth | 58 mm |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for PROFINET IO | false |
