Material ID: 6AG1134-4GB11-2AB0

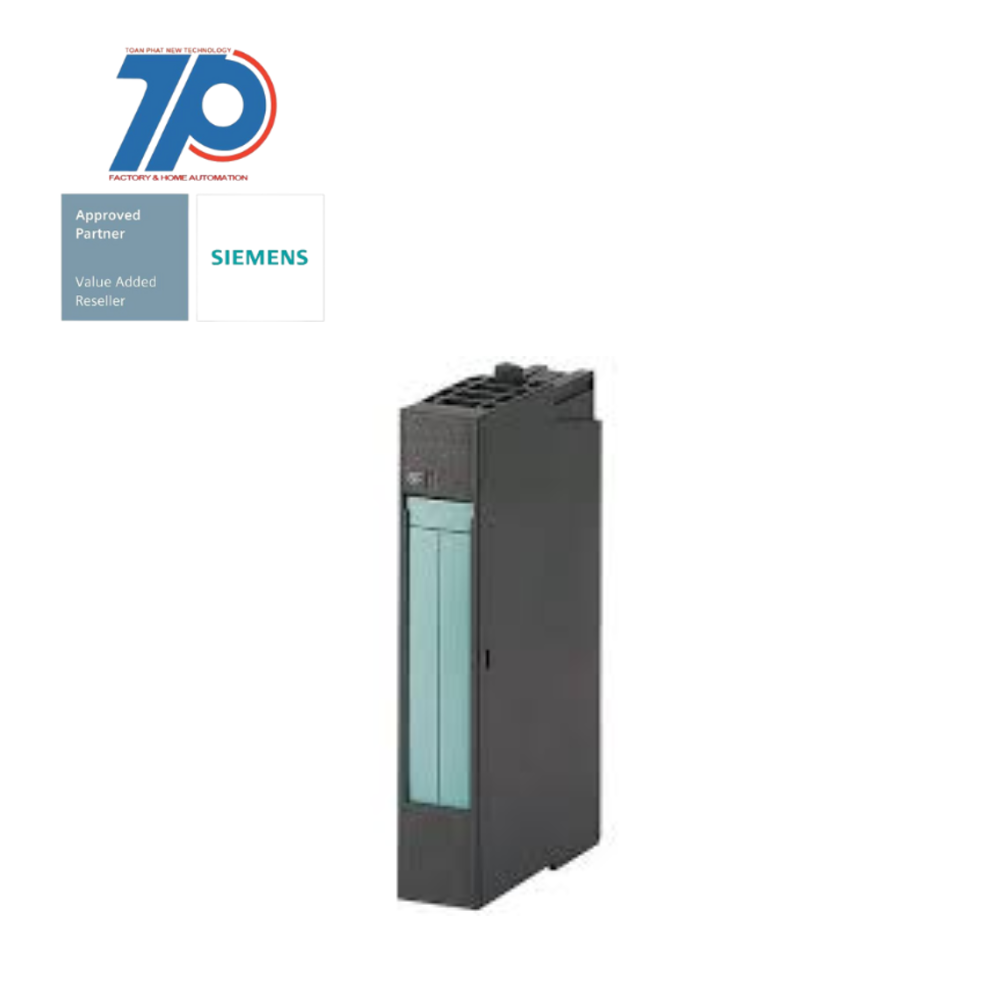

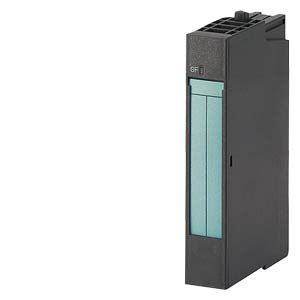

SIPLUS ET 200S EM 2AI I-4-wire transducer

The SIPLUS ET 200S EM 2AI I-4-wire transducer, based on 6ES7134-4GB11-0AB0, is designed for installation in small control boxes near the machine. It is a modularly scalable, distributed I/O system that offers a comprehensive range of modules.

Technical Features:

Commercial Benefits:

The SIPLUS ET 200S EM 2AI I-4-wire transducer offers the following commercial benefits:

    • Temperature range: -25°C to +60°C
    • Conformal coating for protection against biologically, chemically, and physically active substances, condensation, frost, and corrosive gases
    • Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Modules available with standard functions (ST), extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy module and terminal box swapping during operation
    • Improved scalability in terms of functionality and price
    • Increased availability and productivity of the machine
    • Reliable recording of analog signals
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of analogue inputs2
Degree of protection (IP)IP20
Appendant operation agent (Ex ib)false
Number of HW-interfaces parallel0
Supporting protocol for CANfalse
Suitable for safety functionsfalse
Number of HW-interfaces RS-2320
Input, resistorfalse
Radio standard GSMfalse
Front built-in possibletrue
IO link masterfalse
Supporting protocol for Modbusfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for Foundation Fieldbusfalse
System accessorytrue
Number of HW-interfaces wireless0
Input, resistance thermometerfalse
Appendant operation agent (Ex ia)false
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Number of analogue outputs0
Input, voltagefalse
Radio standard GPRSfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Width15 mm
Supporting protocol for Data-Highwayfalse
Input, currenttrue
Height81 mm
Supporting protocol for EtherNet/IPfalse
Supporting protocol for other bus systemsfalse
Number of HW-interfaces RS-4850
Supporting protocol for SERCOSfalse
Supporting protocol for ASIfalse
Rack-assembly possiblefalse
Supporting protocol for TCP/IPfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4220
Radio standard UMTSfalse
Supporting protocol for SUCONETfalse
Number of interfaces PROFINET0
Input signal, configurabletrue
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFINET CBAfalse
Radio standard WLAN 802.11false
Rail mounting possibletrue
Resolution of the analogue inputs14 Bit
Supply voltage DC28.8 V
Wall mounting/direct mountingtrue
Analogue inputs configurabletrue
Supporting protocol for KNXfalse
Supply voltage DC20.4 V
Number of HW-interfaces other0
Depth52 mm
Supporting protocol for PROFIBUSfalse
Supporting protocol for INTERBUSfalse
Input, thermocouplefalse
Supporting protocol for LONfalse
Supporting protocol for PROFIsafefalse
Radio standard Bluetoothfalse
