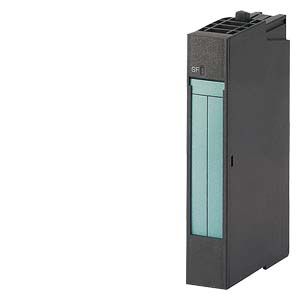

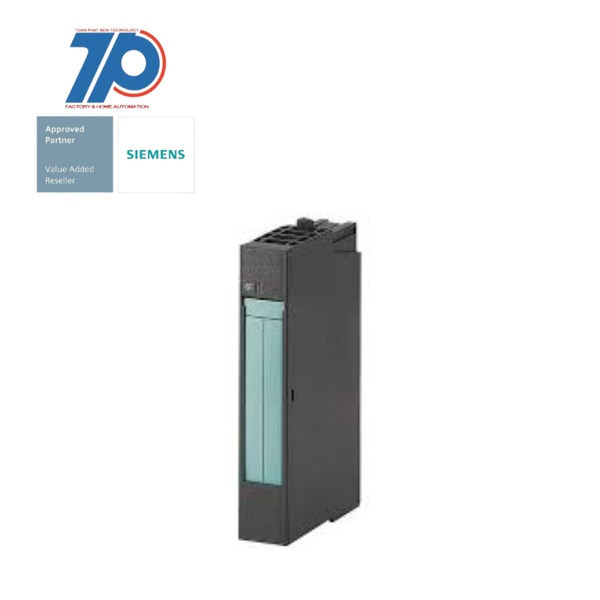

The SIPLUS ET 200S EM 4 AI I 2-wire module, based on 6ES7134-4GD00-0AB0, is designed for use in extreme ambient conditions. With a temperature range of -25°C to +70°C and a 100% conformal coating, it can withstand biologically, chemically, and physically active substances, condensation, frost, and corrosive gases. This electronic module has a width of 15 mm and supports 2-wire transmitters with a cycle time of 40 ms/module. It provides accurate analog input measurements with a resolution of 13 bits.
The SIPLUS ET 200S EM 4 AI I 2-wire module is part of the SIMATIC ET 200S modularly scalable, distributed I/O system. It is specifically designed for installation in small control boxes near the machine. The system allows for easy expansion with up to 64 I/O modules, which can be inserted in any combination. This provides a comprehensive range of modules with various functionalities and price options. The ET 200S system also offers the advantage of "hot swapping," allowing for module and terminal box replacement during operation without affecting machine availability and productivity.
The analog input modules, including the SIPLUS ET 200S EM 4 AI I 2-wire module, are protected against extreme ambient conditions. The 100% conformal coating ensures their durability and reliability in harsh environments. Regardless of the conditions, your analog signals will be reliably recorded.
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Input, resistance thermometer | false |
Suitable for safety functions | false |
Voltage type (supply voltage) | DC |
Supporting protocol for INTERBUS-Safety | false |
Width | 15 mm |
Supporting protocol for KNX | false |
Number of analogue inputs | 4 |
Front built-in possible | true |
Number of HW-interfaces RS-485 | 0 |
System accessory | true |
IO link master | false |
Appendant operation agent (Ex ib) | false |
Input, current | true |
Supporting protocol for other bus systems | false |
Number of HW-interfaces other | 0 |
Supporting protocol for SERCOS | false |
Analogue inputs configurable | true |
Rail mounting possible | true |
Input signal, configurable | true |
Input, voltage | false |
Degree of protection (IP) | IP20 |
Radio standard WLAN 802.11 | false |
Supply voltage DC | 28.8 V |
Number of HW-interfaces USB | 0 |
Supporting protocol for DeviceNet | false |
Number of HW-interfaces RS-232 | 0 |
Supply voltage DC | 20.4 V |
Supporting protocol for EtherNet/IP | false |
Appendant operation agent (Ex ia) | false |
Depth | 52 mm |
Fieldbus connection over separate bus coupler possible | true |
Radio standard UMTS | false |
Supporting protocol for DeviceNet Safety | false |
Supporting protocol for PROFINET IO | false |
Radio standard Bluetooth | false |
Number of HW-interfaces industrial Ethernet | 0 |
Supporting protocol for SafetyBUS p | false |
Supporting protocol for PROFIBUS | false |
Supporting protocol for PROFIsafe | false |
Supporting protocol for Data-Highway | false |
Number of analogue outputs | 0 |
Input, thermocouple | false |
Number of HW-interfaces wireless | 0 |
Supporting protocol for LON | false |
Wall mounting/direct mounting | true |
Height | 81 mm |
Supporting protocol for INTERBUS | false |
Supporting protocol for Foundation Fieldbus | false |
Number of HW-interfaces RS-422 | 0 |
Supporting protocol for PROFINET CBA | false |
Radio standard GSM | false |
Input, resistor | false |
Number of interfaces PROFINET | 0 |
Supporting protocol for AS-Interface Safety at Work | false |
Supporting protocol for ASI | false |
Number of HW-interfaces parallel | 0 |
Radio standard GPRS | false |
Supporting protocol for Modbus | false |
Rack-assembly possible | false |
Supporting protocol for SUCONET | false |
Supporting protocol for TCP/IP | false |
Number of HW-interfaces serial TTY | 0 |
Supporting protocol for CAN | false |
Resolution of the analogue inputs | 13 Bit |
