Material ID: 6AG1134-4JB51-7AB0

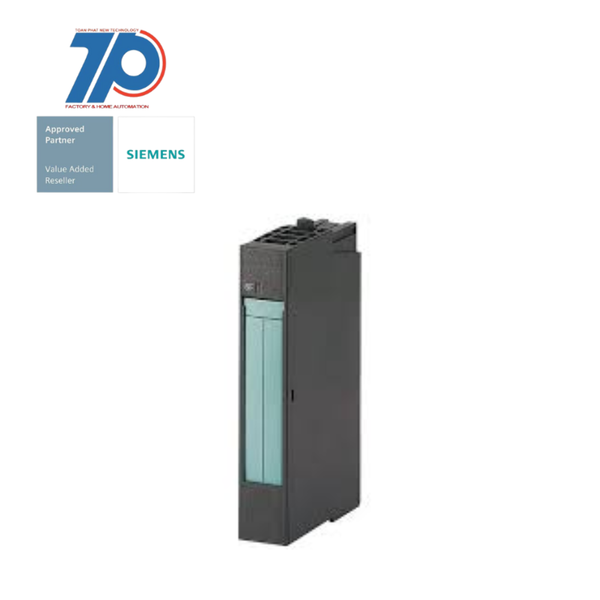

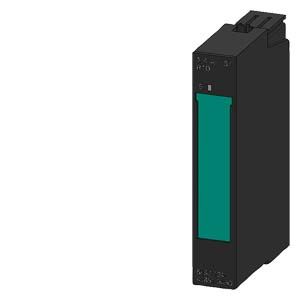

SIPLUS ET 200S EM 2AI RTD based on 6ES7134-4JB51-0AB0

The SIPLUS ET 200S EM 2AI RTD based on 6ES7134-4JB51-0AB0 is a module with conformal coating that operates in a temperature range of -25°C to +70°C. It is designed for installation in small control boxes near the machine.

Technical Features:

Commercial Benefits:

    • Modularly scalable, distributed I/O system
    • Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST) and modules with extended functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy module and terminal box swapping during operation
    • Analog input modules protected against extreme ambient conditions
    • 100% conformal coating for protection against biologically, chemically, and physically active substances, condensation, frost, and corrosive gases
    • Improved scalability in terms of functionality and price
    • Increased availability and productivity of the machine through "hot swapping"
    • Reliable recording of analog signals regardless of the conditions
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Input, currentfalse
Resolution of the analogue inputs16 Bit
Supporting protocol for Modbusfalse
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for other bus systemsfalse
Input, resistance thermometertrue
Supply voltage DC20.4 V
Appendant operation agent (Ex ib)false
Degree of protection (IP)IP20
Number of HW-interfaces parallel0
Radio standard UMTSfalse
Supporting protocol for PROFINET IOfalse
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Number of HW-interfaces RS-4220
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for DeviceNet Safetyfalse
Number of interfaces PROFINET0
Supporting protocol for ASIfalse
Input signal, configurabletrue
Supporting protocol for SUCONETfalse
Number of analogue inputs4
Supporting protocol for PROFIBUSfalse
Wall mounting/direct mountingtrue
Supporting protocol for Foundation Fieldbusfalse
System accessorytrue
Supporting protocol for DeviceNetfalse
Supporting protocol for CANfalse
Depth52 mm
Rack-assembly possiblefalse
Number of analogue outputs0
Input, thermocouplefalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Supporting protocol for KNXfalse
Number of HW-interfaces RS-2320
Appendant operation agent (Ex ia)false
Supporting protocol for LONfalse
Number of HW-interfaces USB0
Supporting protocol for PROFINET CBAfalse
Radio standard WLAN 802.11false
Supporting protocol for Data-Highwayfalse
Input, voltagefalse
Radio standard Bluetoothfalse
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Height81 mm
Supporting protocol for TCP/IPfalse
Supporting protocol for PROFIsafefalse
IO link masterfalse
Front built-in possibletrue
Number of HW-interfaces serial TTY0
Number of HW-interfaces other0
Number of HW-interfaces industrial Ethernet0
Input, resistortrue
Width15 mm
Rail mounting possibletrue
Radio standard GPRSfalse
Supporting protocol for EtherNet/IPfalse
Analogue inputs configurabletrue
Number of HW-interfaces RS-4850
