Material ID: 6AG1134-4NB01-7AB0

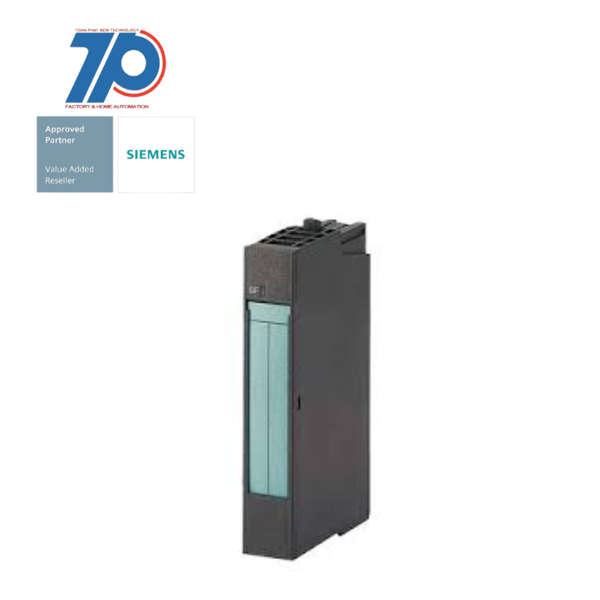

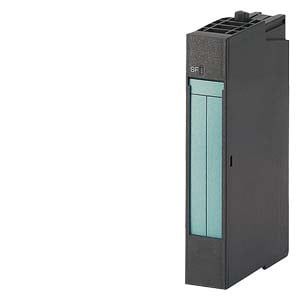

SIPLUS ET 200S EM 2AI TC HF based on 6ES7134-4NB01-0AB0

The SIPLUS ET 200S EM 2AI TC HF is a high-performance analog input module designed for use in harsh environments. It is based on the 6ES7134-4NB01-0AB0 model and features a 15 mm width and 15 bit+sign resolution with internal temperature compensation.

Technical Features:

Commercial Benefits:

    • Modularly scalable, distributed I/O system
    • Specially designed for installation in small control boxes near the machine
    • Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules with various characteristics
    • Modules available with standard functions (ST) and extended functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with module and terminal box swapping during operation
    • Analog input modules protected against extreme ambient conditions
    • 100% conformal coating for resistance against biologically, chemically, and physically active substances, condensation, frost, and corrosive gases
    • Improved scalability in terms of functionality and price
    • Increased availability and productivity of the machine with "hot swapping" capability
    • Reliable recording of analog signals regardless of the conditions
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for CANfalse
Number of HW-interfaces other0
Resolution of the analogue inputs16 Bit
Supporting protocol for EtherNet/IPfalse
Number of HW-interfaces wireless0
Radio standard GSMfalse
Input, resistorfalse
Analogue inputs configurabletrue
Appendant operation agent (Ex ib)false
Wall mounting/direct mountingtrue
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Number of analogue outputs0
Number of HW-interfaces USB0
Supporting protocol for TCP/IPfalse
Number of HW-interfaces serial TTY0
Supporting protocol for DeviceNet Safetyfalse
Number of interfaces PROFINET0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4220
Supporting protocol for other bus systemsfalse
Input, voltagetrue
Radio standard WLAN 802.11false
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNetfalse
Degree of protection (IP)IP20
Supporting protocol for Data-Highwayfalse
Fieldbus connection over separate bus coupler possibletrue
Suitable for safety functionsfalse
Width15 mm
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Input, currentfalse
Depth52 mm
Supply voltage DC20.4 V
Supporting protocol for PROFINET CBAfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supply voltage DC28.8 V
Input signal, configurabletrue
Supporting protocol for INTERBUSfalse
Number of HW-interfaces RS-2320
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Radio standard Bluetoothfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces industrial Ethernet0
Number of analogue inputs2
Input, thermocoupletrue
System accessorytrue
Supporting protocol for PROFIsafefalse
IO link masterfalse
Front built-in possibletrue
Radio standard UMTSfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for KNXfalse
Rail mounting possibletrue
Supporting protocol for SERCOSfalse
Number of HW-interfaces RS-4850
Supporting protocol for Modbusfalse
Input, resistance thermometerfalse
Height81 mm
Appendant operation agent (Ex ia)false
Supporting protocol for LONfalse
