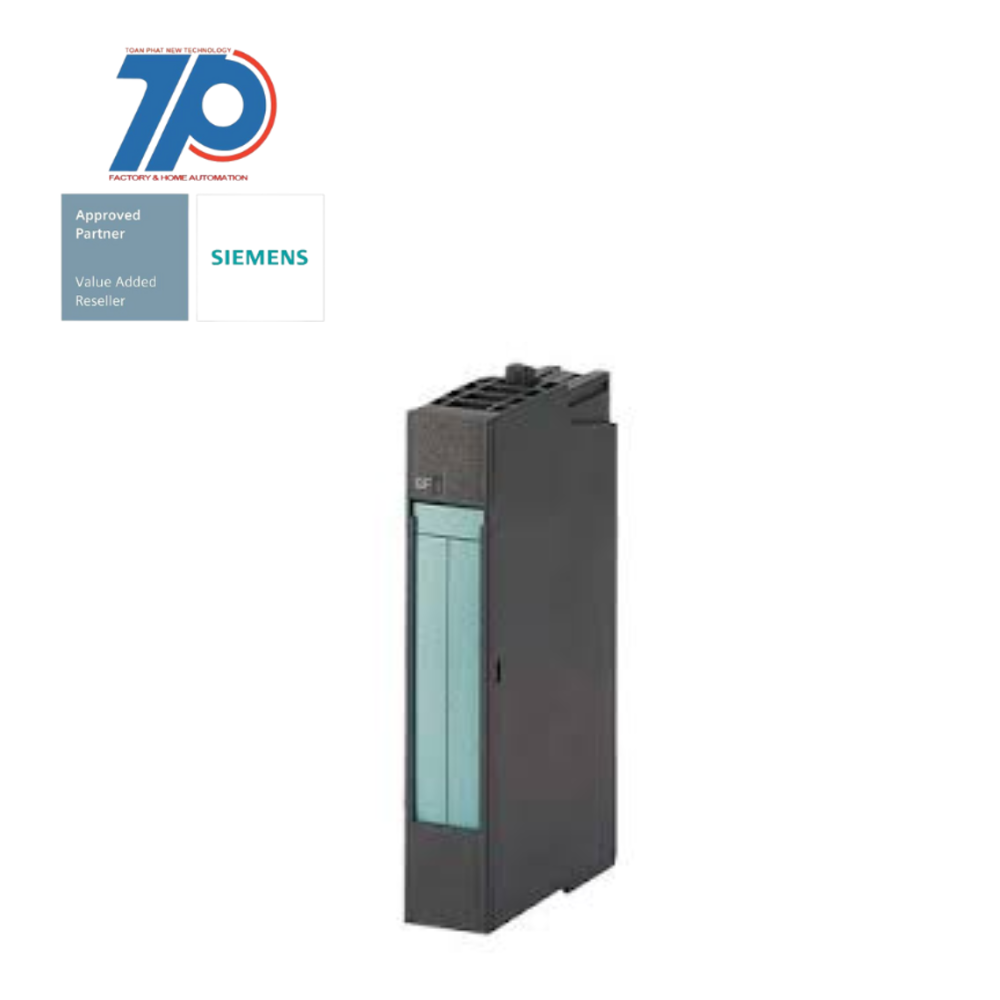

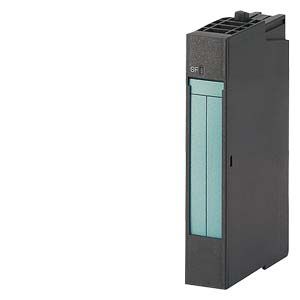

Material ID: 6AG1135-4GB01-2AB0SIPLUS ET 200S EM 2AQ I

SIPLUS ET 200S EM 2AQ I

Technical Features:

Commercial Benefits:

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping". Just like the CPU, the analog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.

    • Based on 6ES7135-4GB01-0AB0
    • Conformal coating
    • Operating temperature: -25…+70 °C
    • Current range: +/-20 mA
    • Resolution: 13 bit+sign
    • Current range: 4..20 mA
    • Resolution: 13 bit
    • Cycle time: less than 1 ms
    • With SF LED (group fault)
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Output, voltagefalse
Supporting protocol for SERCOSfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for SUCONETfalse
Radio standard Bluetoothfalse
Supporting protocol for Data-Highwayfalse
Wall mounting/direct mountingtrue
Number of analogue outputs2
Number of HW-interfaces RS-4850
Suitable for safety functionsfalse
Supporting protocol for Foundation Fieldbusfalse
System accessorytrue
Supporting protocol for DeviceNetfalse
Radio standard GPRSfalse
Supply voltage DC28.8 V
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces RS-2320
Rail mounting possibletrue
Supporting protocol for LONfalse
Supporting protocol for EtherNet/IPfalse
Depth52 mm
Rack-assembly possiblefalse
Analogue outputs configurabletrue
Number of HW-interfaces wireless0
Supporting protocol for Modbusfalse
Supporting protocol for SafetyBUS pfalse
Height81 mm
Supporting protocol for PROFIsafefalse
Supporting protocol for KNXfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for CANfalse
IO link masterfalse
Front built-in possibletrue
Resolution of the analogue outputs14 Bit
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
Output signal configurabletrue
Supporting protocol for other bus systemsfalse
Supporting protocol for INTERBUSfalse
Number of HW-interfaces RS-4220
Fieldbus connection over separate bus coupler possibletrue
Number of interfaces PROFINET0
Appendant operation agent (Ex ib)false
Supporting protocol for ASIfalse
Number of analogue inputs0
Degree of protection (IP)IP20
Radio standard WLAN 802.11false
Number of HW-interfaces serial TTY0
Appendant operation agent (Ex ia)false
Width15 mm
Number of HW-interfaces other0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces USB0
Output, currenttrue
Supporting protocol for PROFINET CBAfalse
Supply voltage DC20.4 V
Number of HW-interfaces parallel0
Radio standard UMTSfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
