Material ID: 6AG1136-6DB00-2CA0

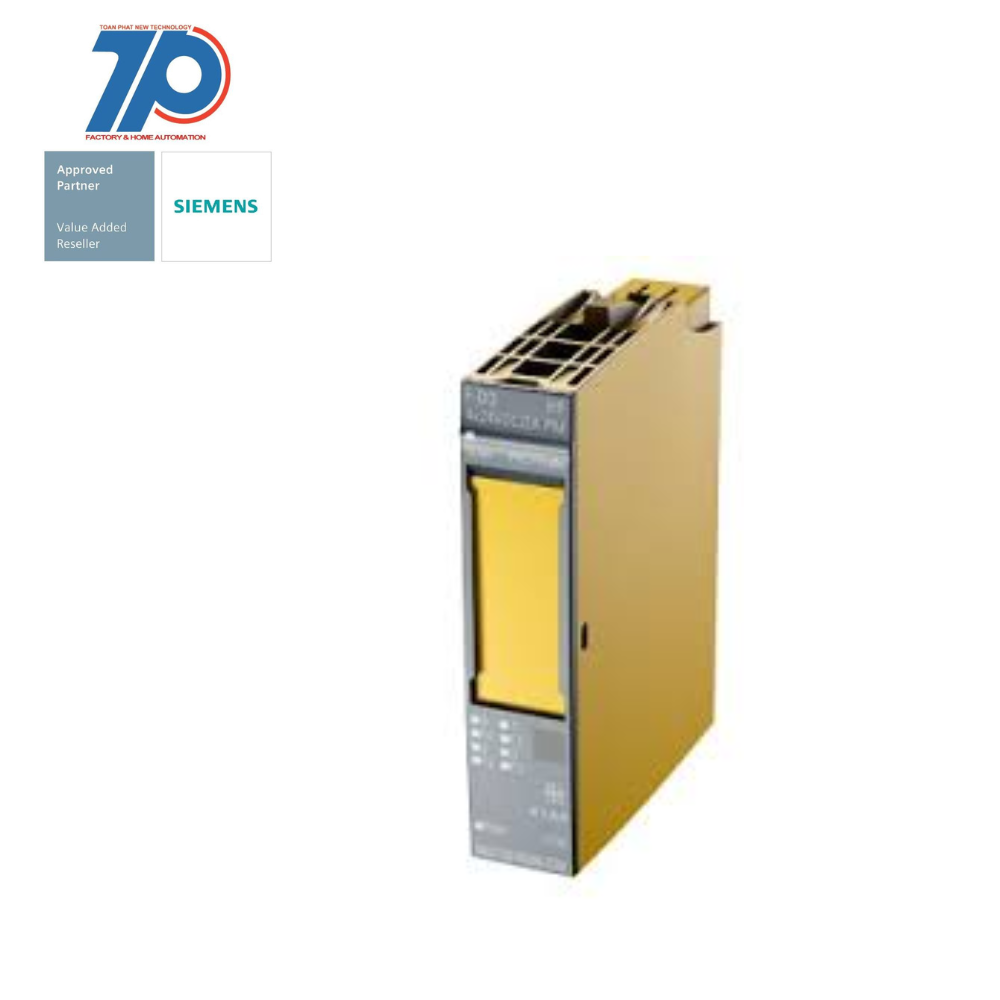

- SIPLUS ET 200SP F-DQ 4x24VDC/2A PM HF based on 6ES7136-6DB00-0CA0 with conformal coating, -30…+60 °C, fail-safe digital outputs up to PL e (ISO 13849), up to SIL 3 (IEC 61508)
- Approved for degree of protection IP20 and for installation in a compact control box
- Maximum flexibility with multi hot swapping feature for quick and simple module replacement
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system for simplified installation and service
- Future-proof investment with integration of innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options for optimum performance
- Digital output modules protected against extreme ambient conditions with 100% conformal coating
- Reliable output of digital signals regardless of the conditions
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for LON | false |
| Supporting protocol for PROFINET CBA | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for SERCOS | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for Data-Highway | false |
| Supply voltage DC | 20.4 V |
| Appendant operation agent (Ex ib) | false |
| Short-circuit protection, outputs available | true |
| Supporting protocol for other bus systems | false |
| Number of digital outputs | 4 |
| Supporting protocol for KNX | false |
| Radio standard UMTS | false |
| Supporting protocol for DeviceNet | false |
| Rack-assembly possible | false |
| Rail mounting possible | true |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for Foundation Fieldbus | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Width | 15 mm |
| Degree of protection (IP) | IP20 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for INTERBUS | false |
| Fieldbus connection over separate bus coupler possible | true |
| IO link master | false |
| Suitable for safety functions | true |
| Supporting protocol for CAN | false |
| Supporting protocol for ASI | false |
| Radio standard GSM | false |
| Radio standard Bluetooth | false |
| Depth | 58 mm |
| Front built-in possible | false |
| Digital outputs configurable | true |
| Supporting protocol for DeviceNet Safety | false |
| Height | 73 mm |
| Permitted voltage at output | 19.2 V |
| Wall mounting/direct mounting | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for PROFIsafe | true |
| Appendant operation agent (Ex ia) | false |
| Type of digital output | Transistor |
| Supporting protocol for Modbus | false |
| System accessory | true |
| Output current | 2 A |
| Permitted voltage at output | 28.8 V |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for SafetyBUS p | false |
| Radio standard GPRS | false |
| With optical interface | false |
| Supporting protocol for SUCONET | false |
| Type of output voltage | DC |
