Material ID: 6AG1138-4CA01-2AA0

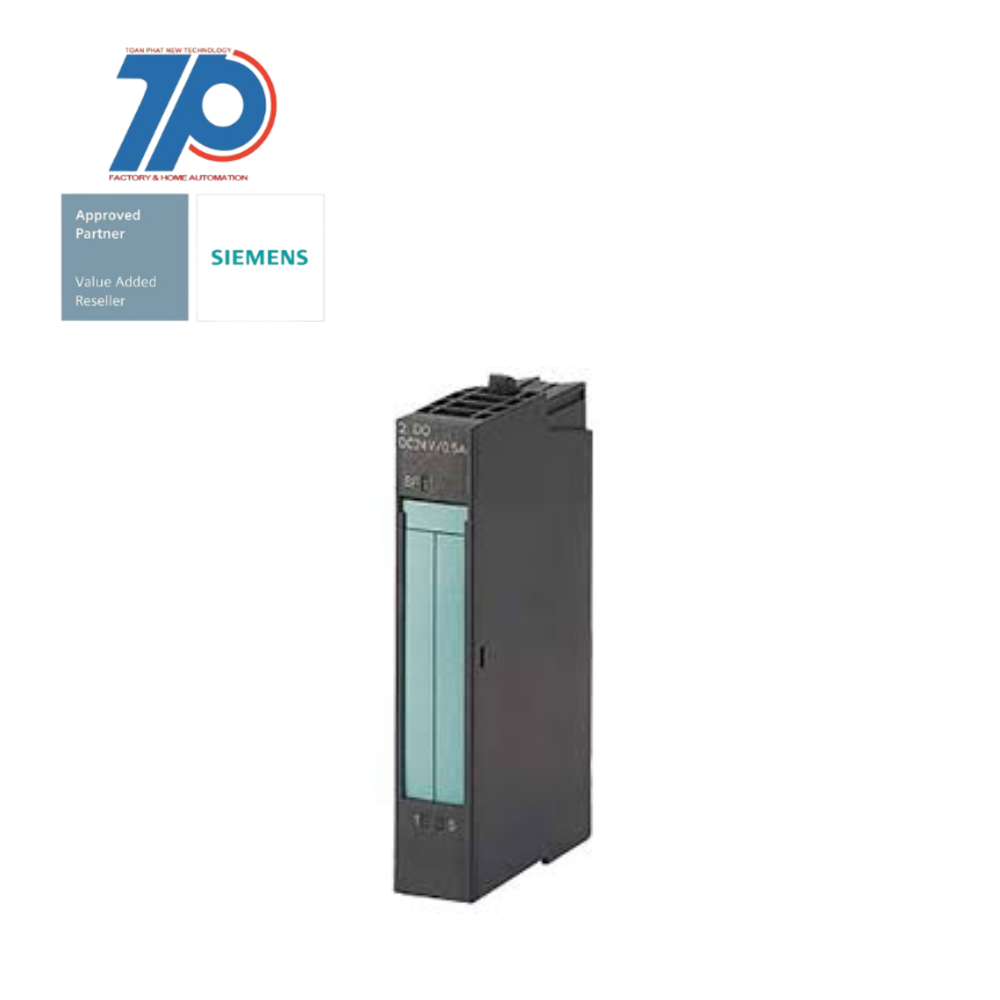

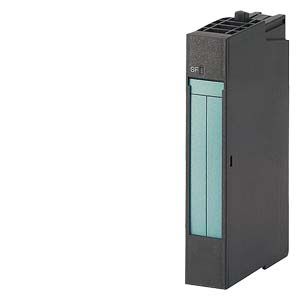

SIPLUS ET 200S PM-E DC 24V with diagnostics based on 6ES7138-4CA01-0AA0 with conformal coating

SIPLUS ET 200S PM-E DC 24V with diagnostics based on 6ES7138-4CA01-0AA0 is a robust and reliable modularly scalable, distributed I/O system. It is specially designed for installation in small control boxes near the machine.

Technical Features:

Commercial Benefits:

    • Operating Temperature: -40°C to +70°C
    • Conformal Coating: Provides protection against extreme ambient conditions
    • Modularity: Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandability: Supports up to 64 I/O modules, allowing for flexible configuration
    • Comprehensive Range of Modules: Offers a wide variety of modules with different characteristics, improving functionality and price scalability
    • Hot Swapping: Allows for easy module and terminal box swapping during operation, increasing machine availability and productivity
    • Enhanced Scalability: Choose from modules with standard functions (ST) or extended range of functions and diagnostics (HF High Feature/ HS High Speed) to meet specific requirements
    • Reliable Power Supply: SIPLUS extreme ensures reliable power supply even in harsh ambient conditions
    • Improved Machine Performance: The system's ease of application and hot swapping capability contribute to increased machine availability and productivity
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Input voltage DC28.8 V
Output voltage DC28.8 V
Type of output voltageDC
Type of voltage (input voltage)DC
Depth52 mm
Suitable for safety functionsfalse
Height81 mm
Redundancyfalse
Output voltage DC20.4 V
Input voltage DC20.4 V
Width15 mm
Max. output current DC10 A
