Material ID: 6AG1138-4CB11-2AB0

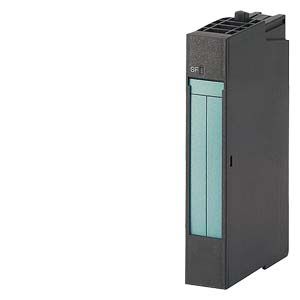

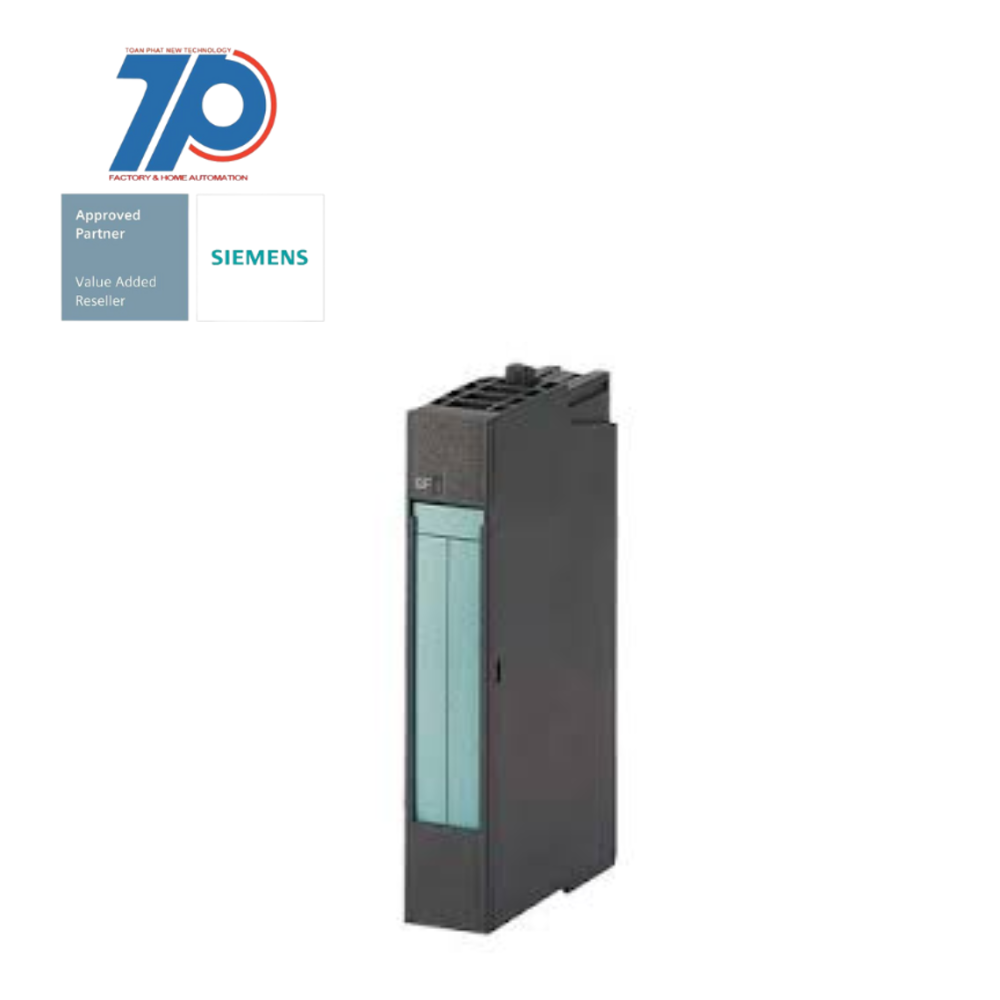

SIPLUS ET 200S PM-E DC/AC based on 6ES7138-4CB11-0AB0 with conformal coating, -25…+60 °C

The SIPLUS ET 200S PM-E DC/AC is a power module designed for the SIMATIC ET 200S modularly scalable, distributed I/O system. It is specifically designed for installation in small control boxes near the machine.

The power module operates within a temperature range of -25…+60 °C and is equipped with conformal coating, providing protection against extreme ambient conditions.

The module supports a power supply of 24-48 V DC and 24-230 V AC, ensuring reliable power delivery to the system.

With its diagnostic capabilities and fuse, the PM-E power module enhances the overall performance and reliability of the system.

SIMATIC ET 200S Modularly Scalable Distributed I/O System

The SIMATIC ET 200S is a modularly scalable, distributed I/O system that offers flexible installation options. It can be directly plugged into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.

The system supports up to 64 I/O modules, allowing for versatile configuration options. These modules can be inserted in any combination, providing a comprehensive range of functionality.

In addition to standard function modules (ST), the ET 200S system also offers modules with extended functions and diagnostics (HF High Feature/ HS High Speed), further enhancing its scalability and performance.

One of the key advantages of the ET 200S system is its ease of application, including the capability of swapping modules and terminal boxes during operation. This feature, known as "hot swapping," significantly improves machine availability and productivity.

SIPLUS Extreme: Reliable Power Supply in Harsh Ambient Conditions

SIPLUS Extreme is a series of products that ensure reliable power supply even in harsh ambient conditions. It offers expanded temperature range, protection against humidity and condensation, as well as resistance to physically, biologically, and chemically active substances.

By using SIPLUS Extreme, the SIPLUS ET 200S PM-E DC/AC power module guarantees the continuous and reliable supply of power, further enhancing the overall performance and durability of the system.

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE
    Input voltage DC20.4 V
    Redundancyfalse
    Output voltage DC57.6 V
    Output voltage AC 50 Hz264 V
    Height81 mm
    Type of output voltageAC/DC
    Output voltage AC 50 Hz20.4 V
    Max. output current AC 60 Hz8 A
    Depth52 mm
    Input voltage AC 50 Hz20.4 V
    Width15 mm
    Output voltage AC 60 Hz264 V
    Input voltage AC 60 Hz264 V
    Max. output current AC 50 Hz8 A
    Output voltage DC20.4 V
    Suitable for safety functionsfalse
    Max. output current DC10 A
    Input voltage AC 50 Hz264 V
    Type of voltage (input voltage)AC/DC
    Input voltage AC 60 Hz20.4 V
    Input voltage DC57.6 V
    Output voltage AC 60 Hz20.4 V
