Material ID: 6AG1138-4DA04-2AB0

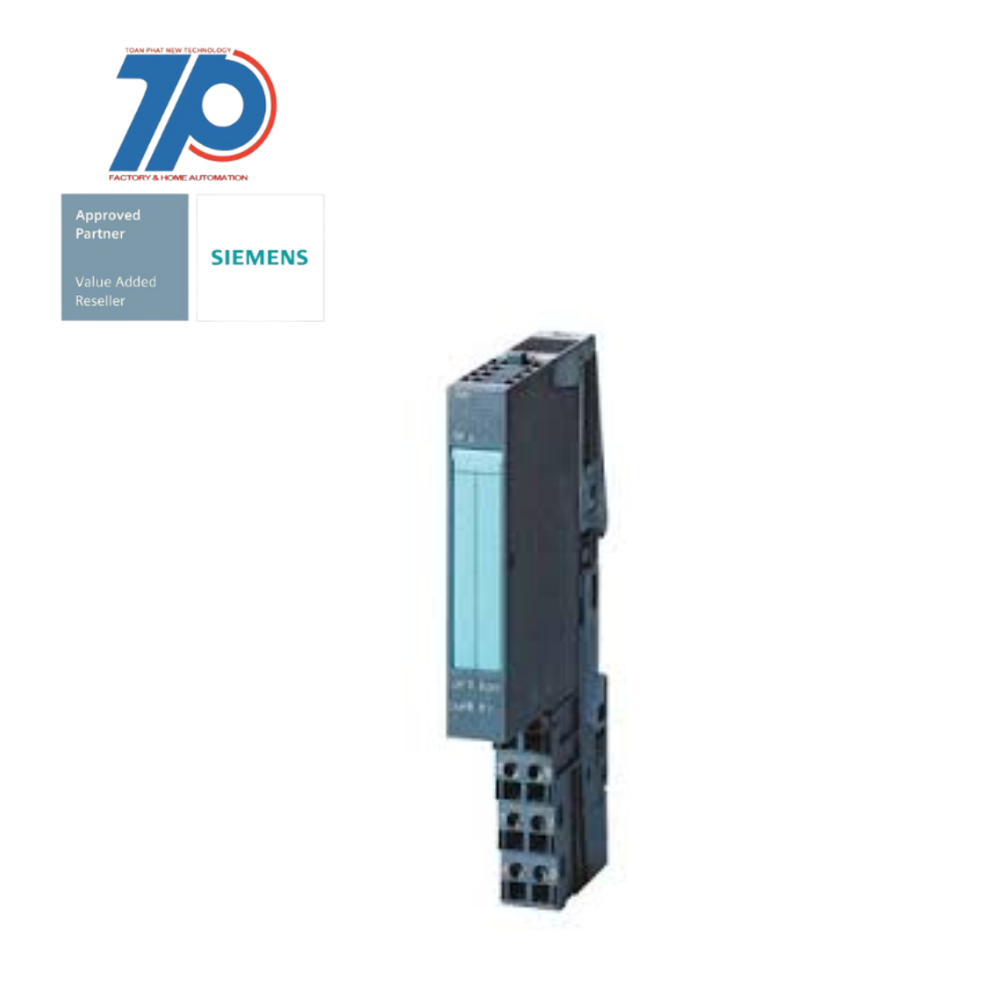

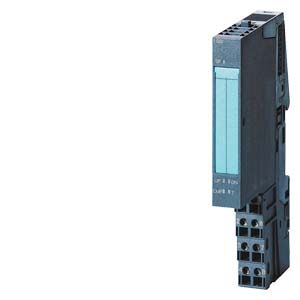

SIPLUS ET 200S EM 1 Count 24V/ 100 based on 6ES7138-4DA04-0AB0 with conformal coating

SIPLUS ET 200S EM 1 Count 24V/ 100 is a robust and reliable module designed for industrial applications. It is equipped with a conformal coating, which provides protection against extreme ambient conditions such as temperature variations (-25…+60 °C), humidity, condensation, and exposure to physically, biologically, and chemically active substances.

Technical Features:

Commercial Benefits:

SIPLUS ET 200S EM 1 Count 24V/ 100 with conformal coating is the ideal choice for industrial environments where reliability, scalability, and protection against extreme conditions are crucial.

    • Modularly scalable, distributed I/O system
    • Specially designed for installation in small control boxes near the machine
    • Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with the capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity through "hot swapping"
    • Protected power supply against extreme ambient conditions
    • Improved scalability in terms of functionality and price
    • Reliable power supply even in harsh ambient conditions
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Suitable for multi-axis positioningfalse
Function block automatic resetfalse
Supporting protocol for other bus systemsfalse
Suitable for temperature controlfalse
Suitable for pressure controlfalse
Width15 mm
Supporting protocol for EtherNet/IPfalse
Function block contactless working protection installationfalse
Contactor control function blockfalse
Radio standard UMTSfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of HW-interfaces other0
Suitable for flux measurementfalse
Number of HW-interfaces wireless0
Number of interfaces PROFINET0
Appendant operation agent (Ex ib)false
Supporting protocol for DeviceNet Safetyfalse
Suitable for single-axis controllerfalse
Suitable for welding controlfalse
Number of HW-interfaces RS-2320
Suitable for cam controllerfalse
Function block restart blockagefalse
Function block 2-hand switchingfalse
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Suitable for CNCfalse
Suitable for countingtrue
Supporting protocol for PROFIBUSfalse
Rail mounting possibletrue
Radio standard GSMfalse
Supporting protocol for LONfalse
Supply voltage DC20.4 V
Height81 mm
Suitable for NCfalse
Supporting protocol for Modbusfalse
Degree of protection (IP)IP20
Supporting protocol for PROFINET CBAfalse
Supporting protocol for AS-Interface Safety at Workfalse
Fieldbus connection over separate bus coupler possiblefalse
Suitable for path controllerfalse
Number of HW-interfaces parallel0
Explosion safety category for dustNone
Supporting protocol for SUCONETfalse
System accessorytrue
Frequency measurementfalse
Depth52 mm
IO link masterfalse
With optical interfacefalse
Suitable for weighingfalse
Supporting protocol for ASIfalse
Suitable for detection absolute valuetrue
Suitable for flying sawfalse
Supporting protocol for SERCOSfalse
Radio standard WLAN 802.11false
Number of HW-interfaces RS-4850
Suitable for multi-axis controlfalse
Radio standard Bluetoothfalse
Supporting protocol for SafetyBUS pfalse
Suitable for SSIfalse
Wall mounting/direct mountingfalse
Function block operating mode selectionfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces USB0
Supporting protocol for KNXfalse
Number of HW-interfaces serial TTY0
Appendant operation agent (Ex ia)false
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNetfalse
Suitable for incremental data detectionfalse
Function block emergency stopfalse
Supporting protocol for TCP/IPfalse
Function block affirm pushbuttonfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for CANfalse
Function block access controlfalse
Suitable for flux controllerfalse
Radio standard GPRSfalse
Supply voltage DC28.8 V
Front built-in possiblefalse
Suitable for electronic positioningfalse
Suitable for single-axis positioningfalse
