Material ID: 6AG1138-4FA05-2AB0

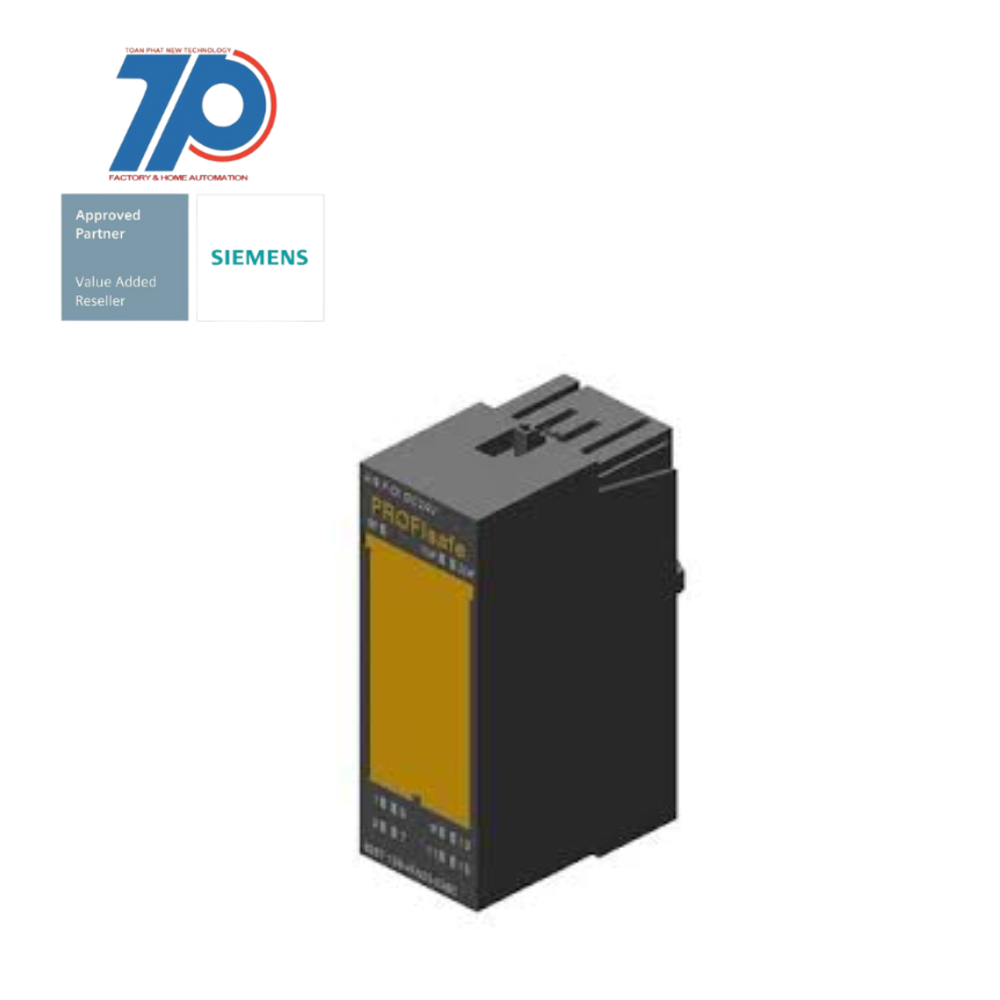

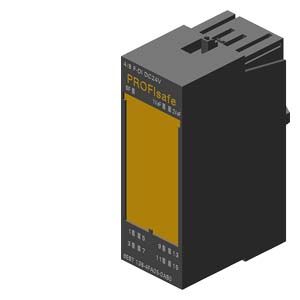

SIPLUS ET 200S EM F-DI 24V PROFIsafe

SIPLUS ET 200S EM F-DI 24V PROFIsafe is an electronic module for the ET 200S system. It has a 30 mm overall width and operates on 24 V DC power supply. The module is designed with conformal coating, allowing it to withstand extreme ambient conditions ranging from -25°C to +60°C.

This module is specifically developed for applications that require safety functions. It is capable of achieving up to category 4 (EN 954-1), SIL3 (IEC 61508), and PLE (ISO 13849) safety levels.

Key Features:

SIMATIC ET 200S

SIMATIC ET 200S is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It offers flexibility in terms of connectivity options, allowing modules to be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.

The system supports up to 64 I/O modules, which can be inserted in any combination. It provides a comprehensive range of modules, including standard functions (ST) as well as modules with extended functions and diagnostics (HF High Feature/ HS High Speed) for improved functionality and price scalability.

Advantages:

With SIPLUS ET 200S EM F-DI 24V PROFIsafe and SIMATIC ET 200S, you can rely on the reliable recording of your digital signals, regardless of the operating conditions.

    • 4/8 F-DI PROFIsafe
    • Can be used in PROFINET configuration with IM 151-3 HF
    • Easy application with the capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity through "hot swapping"
    • Digital input modules are protected against extreme ambient conditions
    • 100% conformal coating for resistance against biologically, chemically, and physically active substances, condensation, frost, and corrosive gases
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces RS-4850
Time delay at signal change0.3 ms
Rail mounting possibletrue
Number of digital outputs0
Type of voltage (input voltage)DC
Supporting protocol for ASIfalse
Number of interfaces PROFINET0
Height81 mm
Supporting protocol for KNXfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Supporting protocol for PROFINET IOtrue
Supporting protocol for Modbusfalse
IO link masterfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces RS-2320
Supporting protocol for LONfalse
Fieldbus connection over separate bus coupler possibletrue
Appendant operation agent (Ex ia)false
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces RS-4220
System accessorytrue
Supporting protocol for INTERBUSfalse
Supporting protocol for Foundation Fieldbusfalse
Number of digital inputs8
Number of HW-interfaces parallel0
Supporting protocol for PROFIsafetrue
Radio standard GPRSfalse
Permitted voltage at input30 V
Radio standard GSMfalse
Radio standard WLAN 802.11false
Wall mounting/direct mountingfalse
Supporting protocol for PROFINET CBAfalse
Radio standard Bluetoothfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces serial TTY0
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Rack-assembly possiblefalse
Degree of protection (IP)IP20
Supporting protocol for SERCOSfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Front built-in possiblefalse
Type of digital outputNone
Width30 mm
Permitted voltage at input-30 V
Supporting protocol for CANfalse
Supply voltage DC28.8 V
Appendant operation agent (Ex ib)false
Supporting protocol for PROFIBUStrue
With optical interfacefalse
Supply voltage DC20.4 V
Suitable for safety functionstrue
Supporting protocol for other bus systemsfalse
Input current at signal 13.7 mA
Digital inputs configurabletrue
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces USB0
Supporting protocol for TCP/IPfalse
Depth52 mm
Time delay at signal change17 ms
