SIPLUS ET 200S F-DQ 24V PROFIsafe

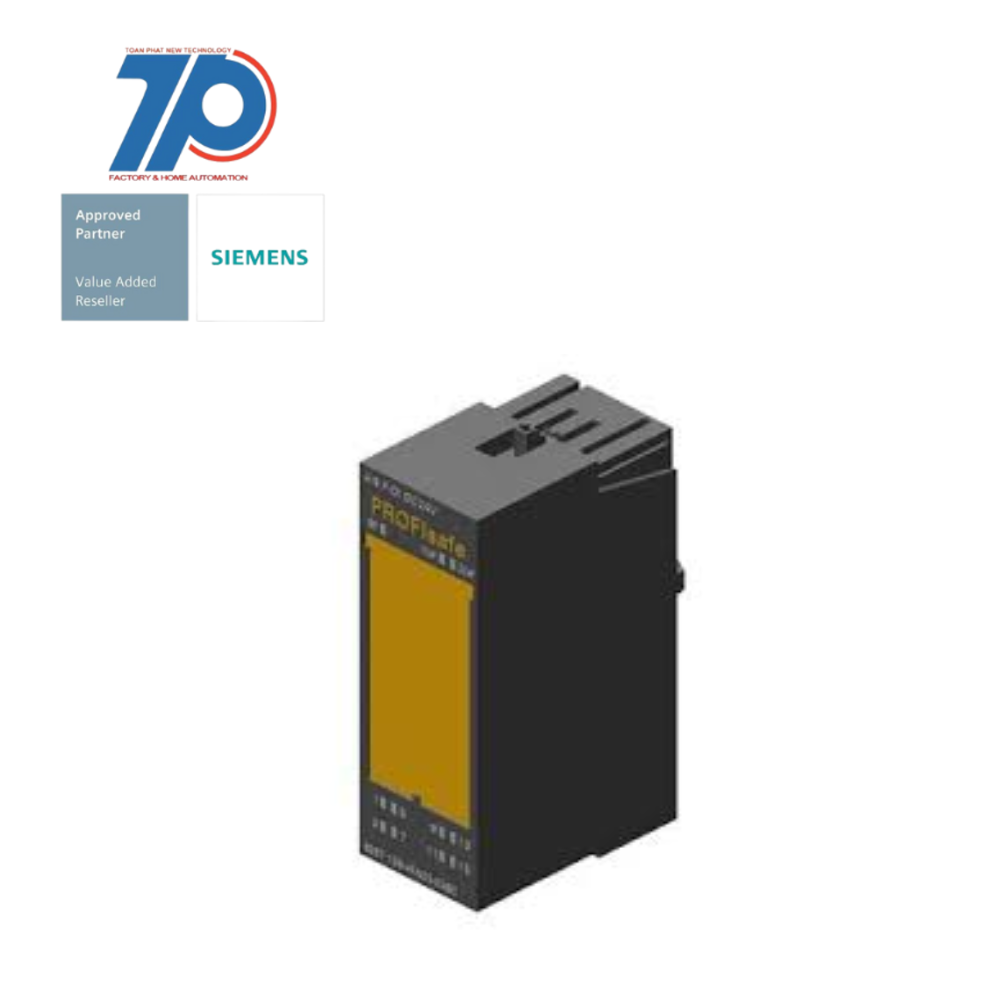

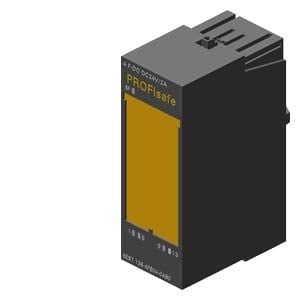

SIPLUS ET 200S F-DQ 24V PROFIsafe is an electronic module for the ET 200S system. It has a 30 mm overall width and operates at 24 V DC/2 A. The module is designed for use in a temperature range of -25°C to +60°C and is equipped with conformal coating.

Key Features:

SIMATIC ET 200S is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It offers the flexibility to either plug modules directly into an ET 200S IM with CPU functionality or connect them to a central controller via PROFINET or PROFIBUS.

Key Features:

The ET 200S system is known for its ease of application, allowing for module and terminal box swapping during operation. This "hot swapping" capability significantly increases machine availability and productivity.

The digital output modules of the ET 200S system are protected against extreme ambient conditions. They are coated with a 100% conformal coating, making them resistant to biologically, chemically, and physically active substances, condensation, frost, and corrosive gases. This ensures reliable output of digital signals in any conditions.

• • 4 F-DQ PROFIsafe digital output channels
  • Up to category 4 (EN 954-1)/ SIL3 (IEC 61508)/PLE (ISO 13849) safety level
  • Can be used in PROFINET configurations with IM 151-3 HF
  • Modular scalability with up to 64 I/O modules
  • Wide variety of module characteristics for improved functionality and price scalability
  • Modules available with standard functions (ST), extended functions and diagnostics (HF High Feature/ HS High Speed)
