Material ID: 6AG1138-4HA00-7AB0

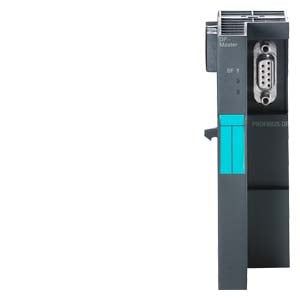

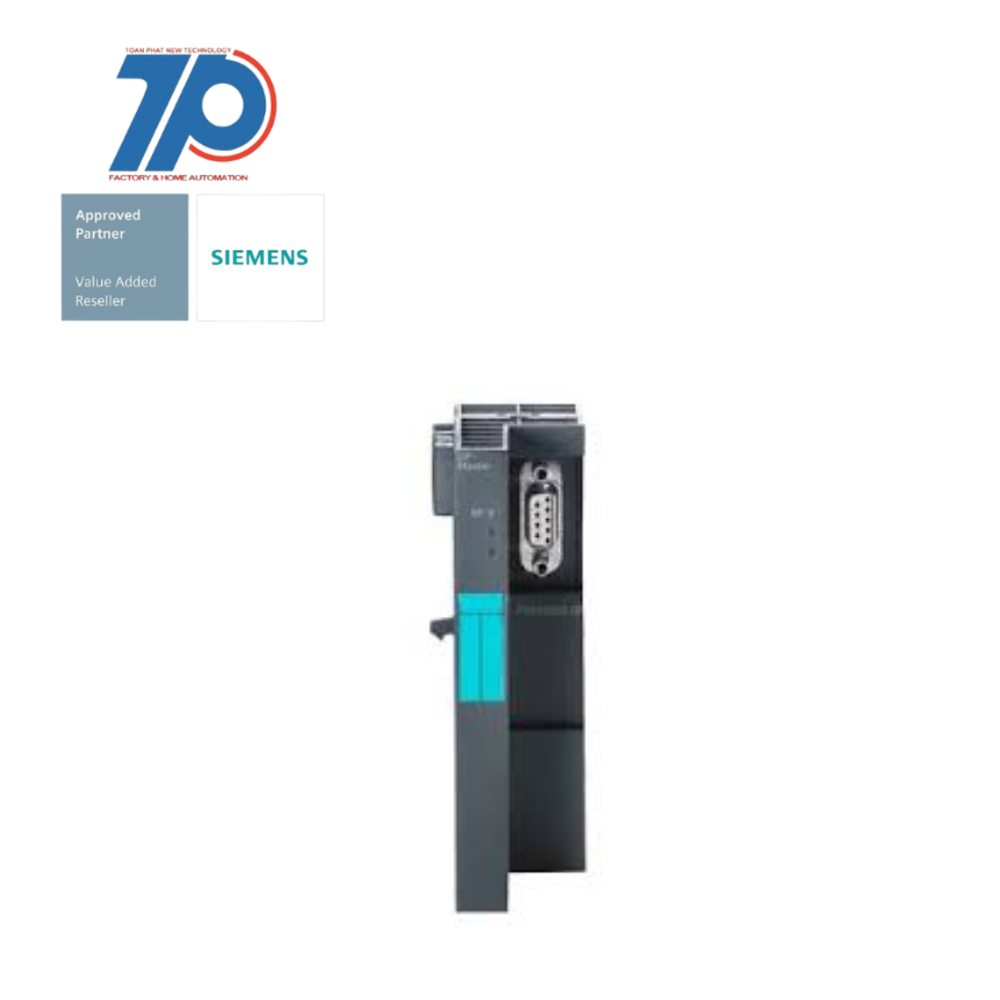

SIPLUS ET 200S DP Master Interface

Technical Features:

Commercial Benefits:

    • Model: 6ES7138-4HA00-0AB0
    • Conformal coating for protection
    • Operating temperature: -40°C to +70°C
    • Designed for IM 151-7 CPU
    • Modularly scalable
    • Distributed I/O system
    • Installation in small control boxes near the machine
    • Direct plug-in or connection to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST)
    • Modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy module and terminal box swapping during operation
    • Improved scalability in terms of functionality and price
    • Increased availability and productivity of the machine
    • Hot swapping capability for enhanced machine uptime
    • SIPLUS extreme variants for harsh ambient conditions
    • Protection against biologically, chemically, and physically active substances
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Wall mounting/direct mountingfalse
Appendant operation agent (Ex ia)false
Supporting protocol for other bus systemsfalse
Supporting protocol for KNXfalse
Supporting protocol for SUCONETfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for TCP/IPfalse
Depth75 mm
Supporting protocol for PROFINET IOfalse
Supporting protocol for DeviceNetfalse
System accessorytrue
Supporting protocol for CANfalse
Supporting protocol for Data-Highwayfalse
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPfalse
Supporting protocol for PROFINET CBAfalse
Width35 mm
Appendant operation agent (Ex ib)false
Radio standard LTEfalse
Radio standard UMTSfalse
Supporting protocol for SERCOSfalse
IO link masterfalse
Supporting protocol for PROFIsafefalse
Degree of protection (IP)IP20
Supporting protocol for LONfalse
Front built-in possiblefalse
Radio standard eGPRSfalse
Supply voltage DC20.4 V
Rack-assembly possiblefalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for ASIfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Rail mounting possibletrue
Radio standard GSMfalse
Radio standard GPRSfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for PROFIBUStrue
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
With potential separationtrue
Radio standard Bluetoothfalse
Height119.5 mm
Supporting protocol for Modbusfalse
Radio standard WLAN 802.11false
