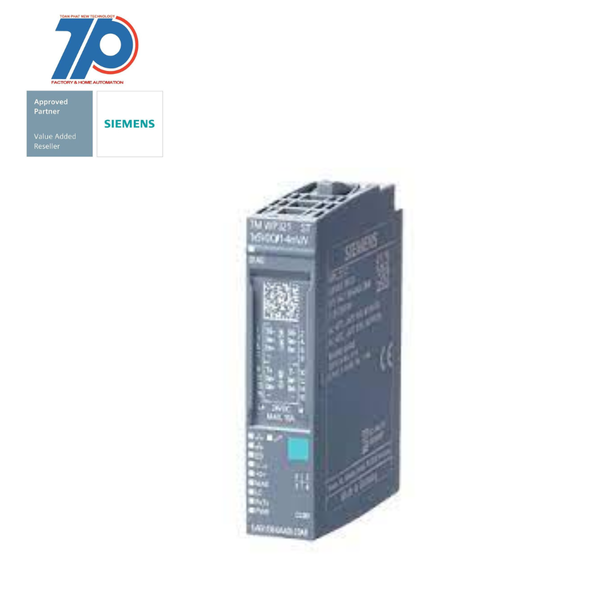

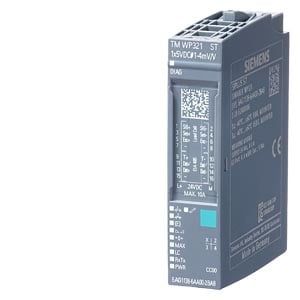

Material ID: 6AG1138-6AA00-2BA8
- SIPLUS ET 200SP WP321 based on 7MH4138-6AA00-0BA0 with conformal coating, -40…+60 °C
- Electronic weighing system 1 channel for the connection of load cells DMS full bridges (1-4 mV/V) for SIMATIC ET200SP
- Suitable for BU type A0
- RS485 interface for SIWATOOL or remote display
- Multifunctional and distributed I/O system
- Space-saving design
- Approved for degree of protection IP20
- Installation in a compact control box
- Multi hot swapping feature for easy module replacement
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF
- Standardized identification system based on equipment labeling plates and color-coded connector assignments
- Future-proof investment with innovative and long-life automation products
- Consistent data availability
- Flexible use cases
- Versatile integration options
- Conformal coating protects SIPLUS extreme modules
- Prepared for use in challenging environments
Additional Information
Support
|
Technical Data
|
Manuals / Links
|
Thông số kỹ thuật
| FEATURE | VALUE |
| Suitable for SSI | false |
| Supporting protocol for SafetyBUS p | false |
| Rail mounting possible | true |
| Supporting protocol for DeviceNet Safety | false |
| IO link master | false |
| Suitable for flying saw | false |
| Rack-assembly possible | false |
| Wall mounting/direct mounting | false |
| Suitable for electronic positioning | false |
| Supporting protocol for LON | false |
| Suitable for safety functions | false |
| Suitable for single-axis controller | false |
| Number of HW-interfaces RS-485 | 1 |
| Height | 57 mm |
| Suitable for cam controller | false |
| Function block emergency stop | false |
| Supporting protocol for TCP/IP | false |
| System accessory | true |
| Suitable for single-axis positioning | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for Modbus | false |
| Frequency measurement | false |
| Function block 2-hand switching | false |
| Function block automatic reset | false |
| Suitable for multi-axis control | false |
| Supply voltage DC | 28.8 V |
| Radio standard GPRS | false |
| Function block contactless working protection installation | false |
| Supporting protocol for SUCONET | false |
| Suitable for NC | false |
| Radio standard Bluetooth | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for ASI | false |
| Appendant operation agent (Ex ib) | false |
| Suitable for flux measurement | false |
| Supporting protocol for SERCOS | false |
| Suitable for flux controller | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for CAN | false |
| Suitable for counting | true |
| Suitable for CNC | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for Data-Highway | false |
| Front built-in possible | false |
| Suitable for weighing | true |
| Radio standard WLAN 802.11 | false |
| Suitable for multi-axis positioning | false |
| Degree of protection (IP) | IP20 |
| Radio standard UMTS | false |
| Contactor control function block | false |
| Suitable for path controller | false |
| Suitable for pressure control | false |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Radio standard GSM | false |
| Suitable for temperature control | false |
| Function block affirm pushbutton | false |
| Supply voltage DC | 19.2 V |
| Suitable for welding control | false |
| Supporting protocol for PROFINET IO | false |
| Explosion safety category for dust | None |
| Function block operating mode selection | false |
| Supporting protocol for KNX | false |
| Supporting protocol for PROFINET CBA | false |
| Function block access control | false |
| With optical interface | false |
| Width | 15 mm |
| Depth | 72 mm |
| Appendant operation agent (Ex ia) | false |
| Function block restart blockage | false |
