Material ID: 6AG1151-7FA21-2AB0SIPLUS ET 200S IM 151-7 F-CPU

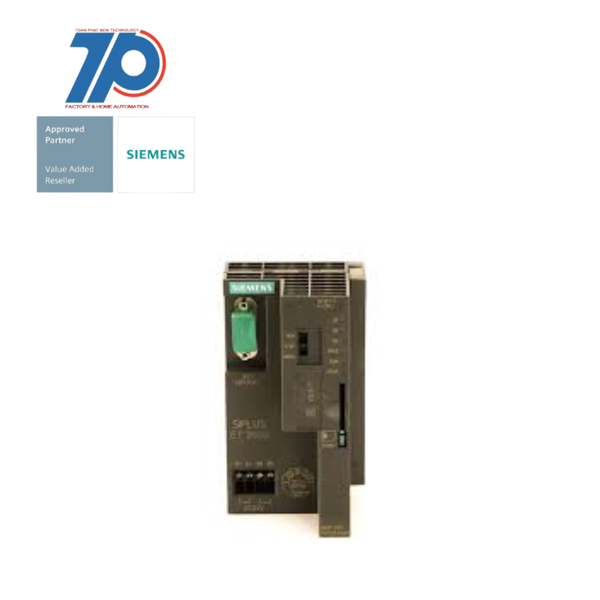

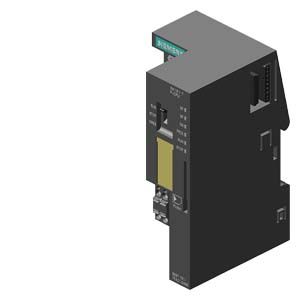

SIPLUS ET 200S IM 151-7 F-CPU

Technical Features:

Product Description:

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available. The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

Commercial Benefits:

Whether your distributed I/O is unprotected or installed in small control boxes, SIPLUS extreme ensures reliable operation in the field. Regardless of whether you need an expanded temperature range, protection against humidity and condensation or physically, biologically and chemically active substances. With SIPLUS extreme you are safe and sound, even in harsh ambient conditions.

    • Based on 6ES7151-7FA21-0AB0
    • Conformal coating for -25…+60 °C temperature range
    • ET 200S
    • 192 KB work memory
    • Integrated PROFIBUS DP Interface (9-pin D-sub, female) AS DP slave
    • Requires SIMATIC MMC
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Type of voltage (input voltage)DC
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Radio standard Bluetoothfalse
Supporting protocol for INTERBUSfalse
Wall mounting/direct mountingtrue
With optical interfacefalse
With pluggable modules, communication modulestrue
Supporting protocol for LONfalse
Number of HW-interfaces USB0
Degree of protection (IP)IP20
IO link masterfalse
Appendant operation agent (Ex ia)false
Supporting protocol for EtherNet/IPfalse
Supporting protocol for KNXfalse
Number of HW-interfaces RS-2320
Supporting protocol for DeviceNetfalse
Supporting protocol for Modbusfalse
With potential separationtrue
System accessorytrue
Supporting protocol for other bus systemstrue
Explosion safety category for dustNone
Number of HW-interfaces other0
Appendant operation agent (Ex ib)false
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFINET CBAfalse
Supporting protocol for SERCOSfalse
Supporting protocol for PROFIsafetrue
Radio standard UMTSfalse
Number of HW-interfaces industrial Ethernet0
Number of slots63
Depth75 mm
Rail mounting possibletrue
Supporting protocol for CANfalse
Number of HW-interfaces serial TTY0
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for ASIfalse
With pluggable modules, analogue I/Otrue
Supporting protocol for DeviceNet Safetyfalse
Suitable for safety functionstrue
With pluggable modules, digital I/Otrue
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Input voltage DC19.2 V
Height119.5 mm
Supporting protocol for Data-Highwayfalse
Front built-in possiblefalse
With pluggable modules, otherstrue
Number of HW-interfaces RS-4851
Supporting protocol for PROFINET IOfalse
With integrated power supplyfalse
With pluggable modules, central modulestrue
Number of HW-interfaces wireless0
Width60 mm
Number of HW-interfaces parallel0
Input voltage DC28.8 V
With pluggable modules, function and technology modulestrue
Supporting protocol for INTERBUS-Safetyfalse
Fieldbus connection over separate bus coupler possibletrue
With bus coupler for modular station connectiontrue
Supporting protocol for TCP/IPfalse
Supporting protocol for PROFIBUStrue
Number of interfaces PROFINET0
Supporting protocol for SafetyBUS pfalse
Radio standard GSMfalse
